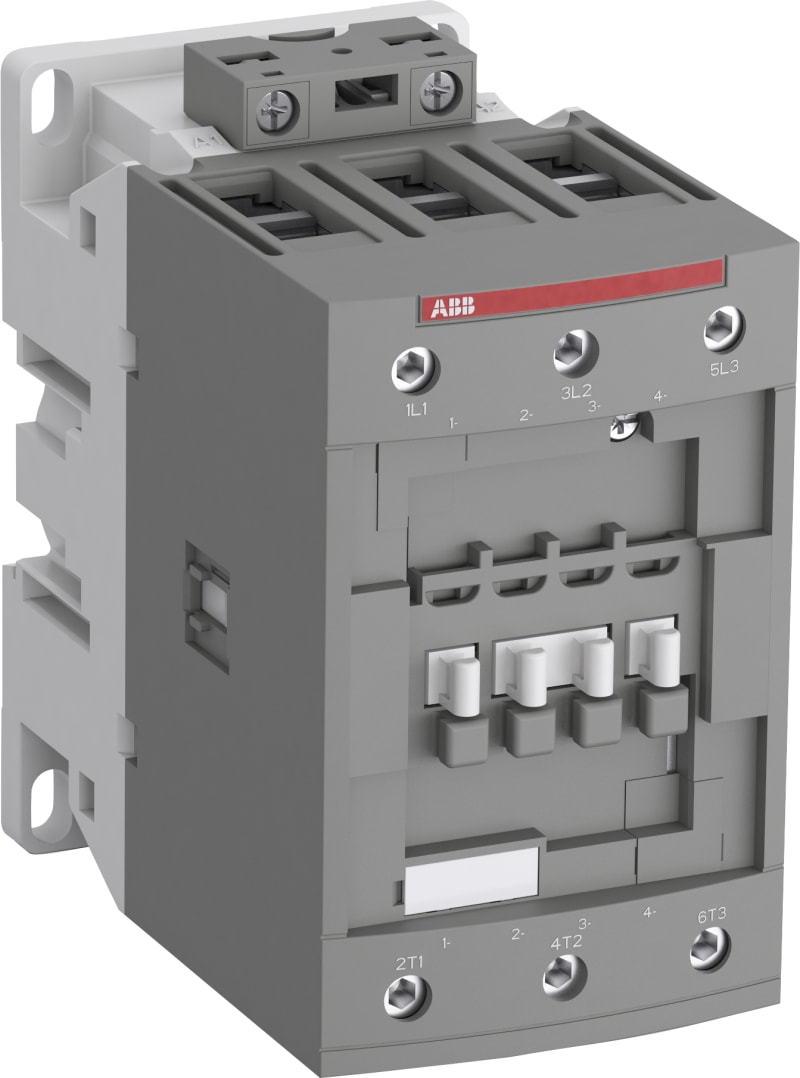

Contactor AF96-30-00-11 (AF96-30-00-11 24-60V50/60HZ 20-60VDC)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF96-30-00-11 24-60V50/60HZ 20-60VDC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. Contactor AF96-30-00-11 24-60V50/60HZ 20-60VDC. Supplied u.hj.connector. Use optionally 4117856 1NO+1NC side.
Technical Specifications
- Manufacturer part number (MPN)
- AF96-30-00-11 24-60V50/60HZ 20-60VDC
- EAN / GTIN
- 3471523133211
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Width
- 70 mm
- Height
- 125.5 mm
- Depth
- 116 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 45 kW
- Number of normally open contacts as main contact
- 3
- Rated operation current Ie at AC-3, 400 V
- 105 A
- Rated operation current Ie at AC-1, 400 V
- 130 A
- Rated control supply voltage AC 50 Hz
- 24–60 V
- Rated control supply voltage AC 60 Hz
- 24–60 V
- Rated control supply voltage DC
- 20–60 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 55.9275 kW
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523133211
- SAP 1000506767
- Code 8914023
Product Documentation
More from ABB
ABB
Meter 1F A42 112-100
2CMA170510R1000
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C40 A30MA
2CSR275180R1404
ABB
MBA196T for XT2 + RC
2CPX042908R9999
ABB
Cover OTS160G1L4 (1SCA140415R1001)
ABB
MBB316 Blind module (2CPX041724R9999)
ABB
ABB 6131/39-24-500 Surface Mounting Box for KNX Presence Detector
ABB
CuAl kl 2X35-70MM2 XT2, 3 pcs
1SDA067175R1
ABB
Lead-through frame TZ626 55X160X260MM IP55
2CPX010778R9999
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AF96-30-00-11 24-60V50/60HZ 20-60VDC?
- AF96-30-00-11 24-60V50/60HZ 20-60VDC can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is AF96-30-00-11 24-60V50/60HZ 20-60VDC.
- What is the HS code for AF96-30-00-11 24-60V50/60HZ 20-60VDC?
- The customs tariff (HS) code for AF96-30-00-11 24-60V50/60HZ 20-60VDC is 8536.90.
- Who manufactures AF96-30-00-11 24-60V50/60HZ 20-60VDC?
- AF96-30-00-11 24-60V50/60HZ 20-60VDC is a ABB product in the Electrical Components range.
- Is a datasheet available for AF96-30-00-11 24-60V50/60HZ 20-60VDC?
- Yes — the AF96-30-00-11 24-60V50/60HZ 20-60VDC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AF96-30-00-11 24-60V50/60HZ 20-60VDC?
- The minimum order quantity is 1.
- Is AF96-30-00-11 24-60V50/60HZ 20-60VDC available?
- Yes — AF96-30-00-11 24-60V50/60HZ 20-60VDC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
