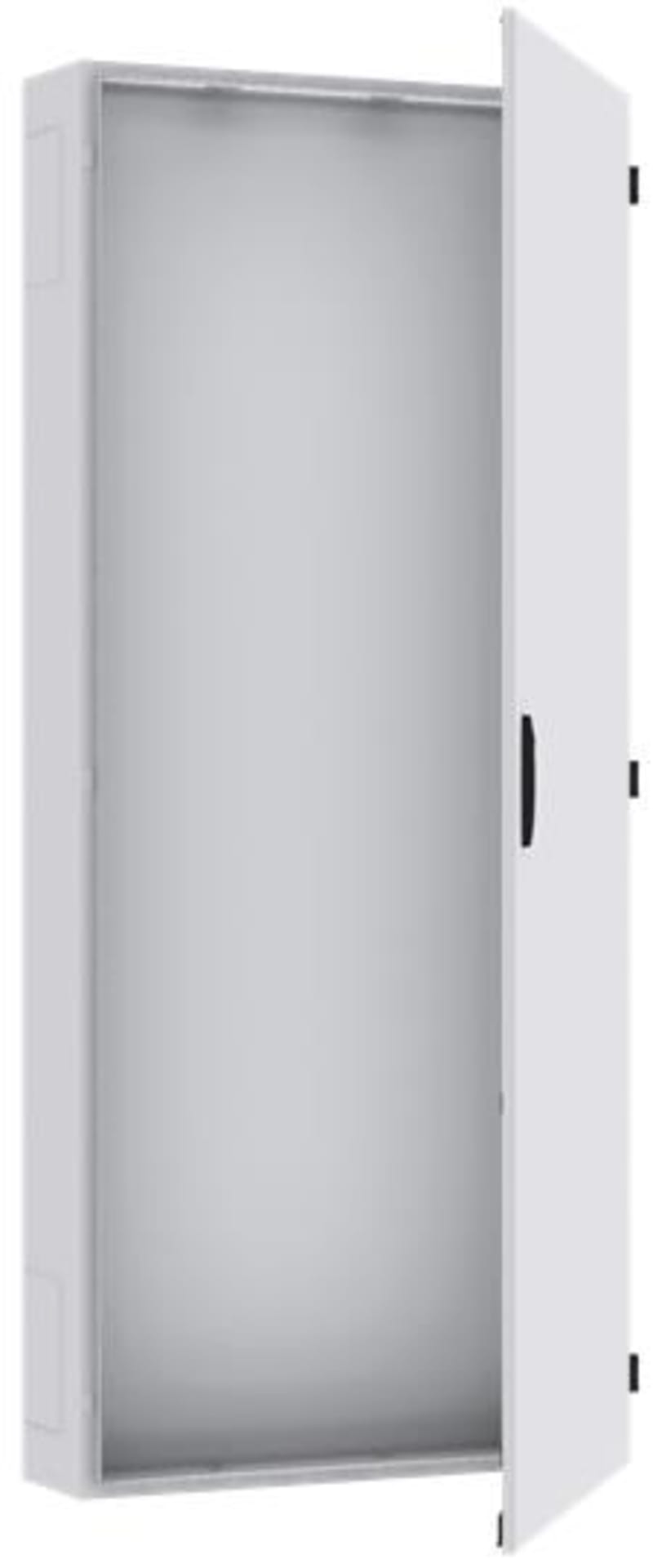

MBA196T for XT2 + RC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX042908R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Main circuit breaker Tmax, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units,, usable width of 140 mm, unequipped for the installation of 1 MCCB XT4, for busbar system 4-pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usable as of the cabinet depth of 200 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX042908R9999
- EAN / GTIN
- 4011617429081
- Sales unit
- pcs
- Rated Operational Current (I e )
- 250 A
- Number of Poles
- 4P
- Number of Switches
- 0
- Number of Mountable Devices
- 1
- Number of Panel Heights
- 3
- Enclosure Module Equipment
- Excludes Devices
- Enclosure Mounting Frame
- WR or EDF
- Device
- XT4
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 00
- DIN Place Units
- 36
- Module Function
- Main circuit breaker Tmax
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 250 A
- Color
- Light grey
- Number of Modules
- 36
- Product Net Width
- 250 mm
- Product Net Height
- 450 mm
- Product Net Depth / Length
- 200 mm
- Section Width
- 1
- Built-In Depth ( t 2 )
- 200 mm
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC119767M5601
- ETIM 9
- EC001897 - Distributor assembly switch
- eClass
- V11.0 : 27400611
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 250 mm
- Height
- 450 mm
- Depth
- 200 mm
- With cover
- Yes
- Plastic cover plate
- Yes
- With auxiliary terminal
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- No
- Rated operation current
- 250 A
- Suitable for no-voltage switch
- No
- Suitable for reverser
- No
- Equipped with switch disconnector
- No
- Equipped with power circuit-breaker
- No
- Equipped with no-voltage switch
- No
- Equipped with reverser
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617429081
- SAP 1200638989
- Code 83055014
