AF16-30-10-14 250-500V AC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description

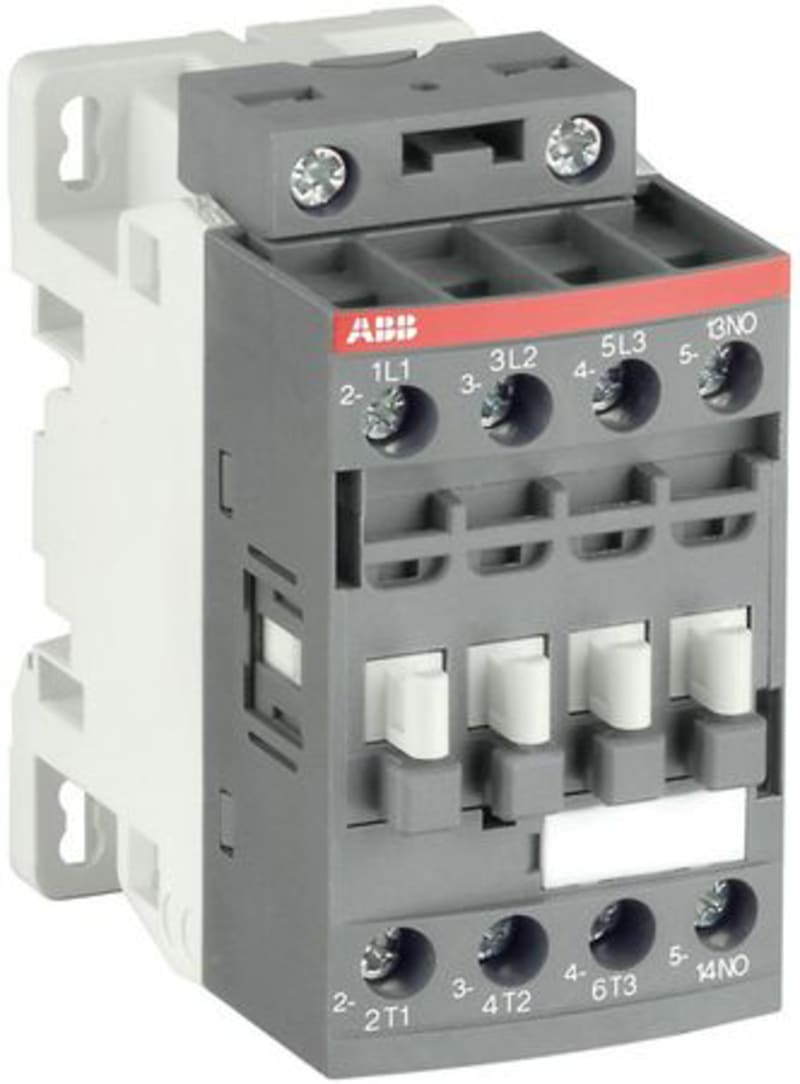

ABB AF16-30-10-14 250-500V50/60HZ-DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. CONTACTOR AF16-30-10-14 250-500V50/60HZ-DC 90.
Technical Specifications
- Manufacturer part number (MPN)
- AF16-30-10-14 250-500V50/60HZ-DC
- EAN / GTIN
- 3471523110649
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Voltage
- 250-500 V
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 77 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 18 A
- Rated operation current Ie at AC-1, 400 V
- 30 A
- Rated control supply voltage AC 50 Hz
- 250–500 V
- Rated control supply voltage AC 60 Hz
- 250–500 V
- Rated control supply voltage DC
- 250–500 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 7.457 kW
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523110649
- SAP 1000225368
- Code 81133154
Product Documentation
