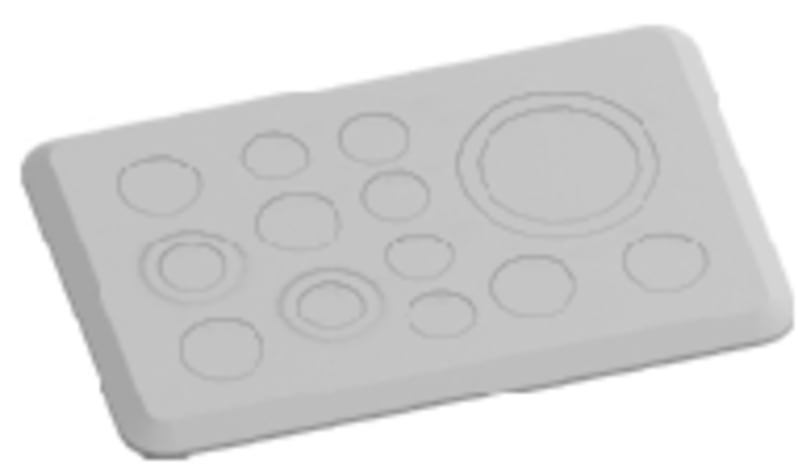

Flange TZ102 FOR M-Nipples IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB TZ102 — Plastic flange with integrated gasket and two cable sleeves for M-screw joints, mounting without tools using locking gear; for 1 x M63 / M50, 2 x M32 / M20, 5 x M25, 5 x M20, suitable for TwinLine-G (SZ) meter cabinets and TwinLine wall and standing cabinets. A TZ102 flange for M-screw joints is only factory-included for TwinLine-G (SZ) meter cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- TZ102
- EAN / GTIN
- 4011617104520
- Sales unit
- pcs
- IP rating
- IP55
- Model Number
- Other
- Number of Connection Holes
- 0
- Enclosure Type
- Flange
- Product Type
- Straight
- Thread Type
- Metric
- Accessories Available
- No
- Accessory Group
- Flange
- Number of Batteries
- 0
- Surface Finishing
- Untreated
- Material
- Plastic
- Product Net Width
- 223 mm
- Product Net Height
- 147 mm
- Product Net Depth / Length
- 20 mm
- Thickness
- 3 mm
- EPLAN Data
- 9AAC184273_EPLAN
- Declaration of Conformity - CE
- 2CPC100021X0201
- Instructions and Manuals
- 2CPC133967M5601
- ETIM 9
- EC000211 - Gland plate for enclosure/cabinet
- eClass
- V11.0 : 27142421
- Object Classification Code
- U
- Width
- 223 mm
- Height
- 147 mm
- Depth
- 20 mm
- Surface protection
- Untreated
- Pre-stamping
- Yes
- Type
- Straight
- Suitable for nominal thread metric/PG
- 20–63
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617104520
- SAP 1000690348
- Code 8400199
Product Documentation
More from ABB
ABB

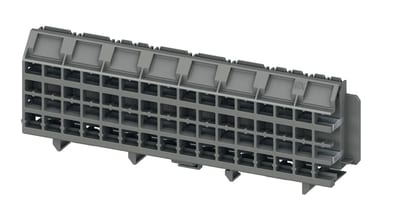

ZLS928 TP Plinth N/PE.SK. 8MOD
2CCA183630R0001
ABB

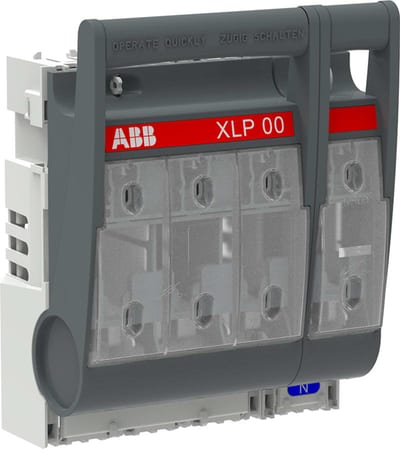

ABB XLP00-4P-8BC XLP00,4-Pole,160A, incl. 8 Bridge Clamps
ABB

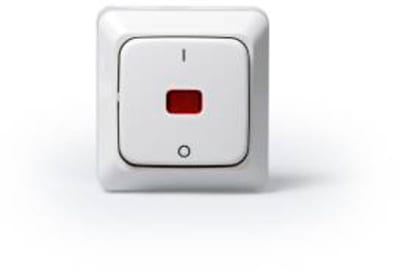

Switch Recessed 2-Pole M. LIGHT 16
2TKA000145G1
ABB

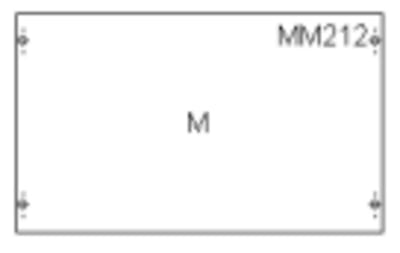

MBM212 Mounting plate module
2CPX041711R9999
ABB

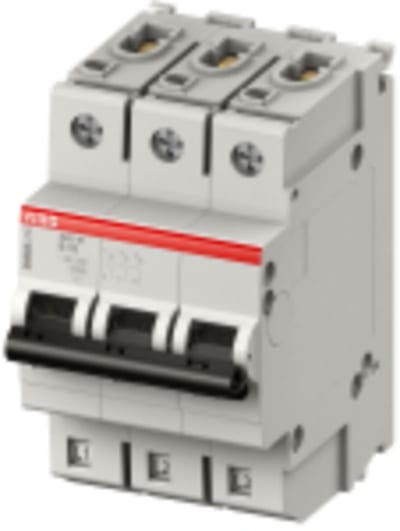

ABB S403-B25 Miniature Circuit Breaker — 3P, Type B, 25 A, 10 kA 2CCS573001R0255
ABB

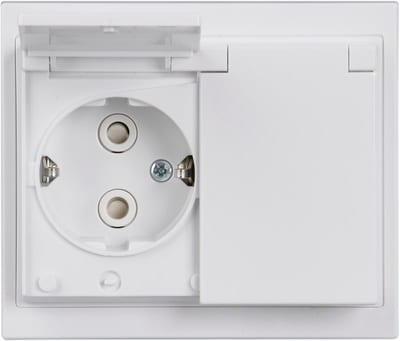

ABB Impressivo Double Socket Outlet IP44, White
