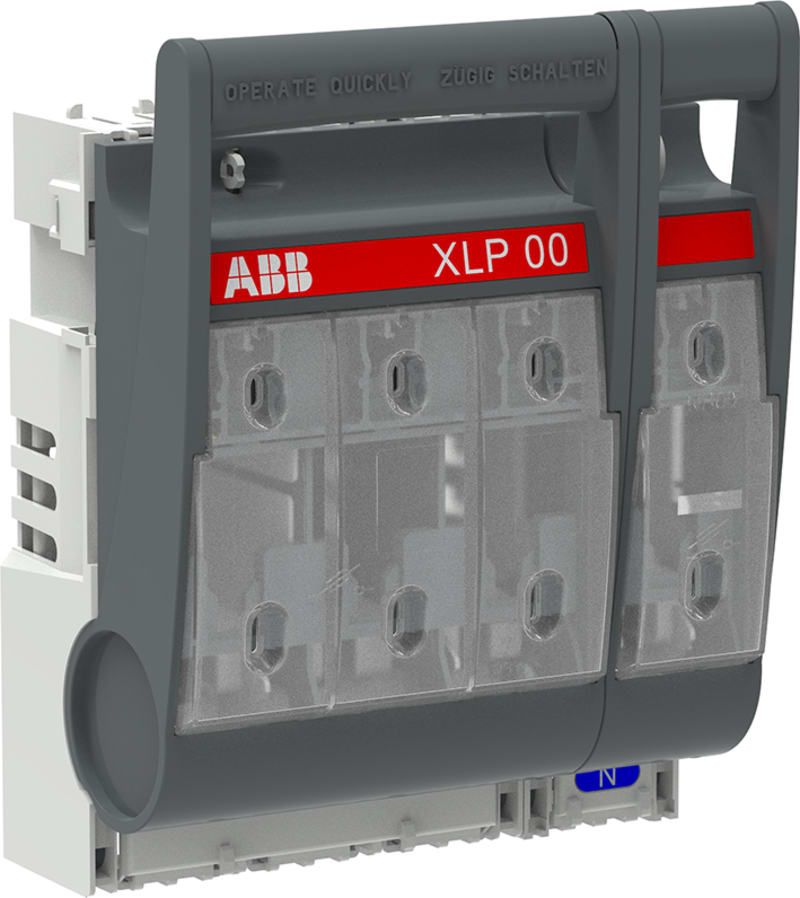

ABB XLP00-4P-8BC XLP00,4-Pole,160A, incl. 8 Bridge Clamps
Pricing
Request a quote
We reply within 24 hours
Overview
ABB XLP00-4P-8BC XLP00,4-Pole,160A, incl. 8 Bridge Clamps is listed under Switchgear & Protection / Fuse Switch-Disconnectors. Sales unit: pcs; Degree of Protection: IP30; Product Net Width: 145 mm; Product Net Height: 88 mm; Product Net Depth / Length: 185 mm; Device Type Manager (DTM): Fuseswitchdisconnector.
Technical Specifications
- Manufacturer part number (MPN)
- XLP00-4P-8BC
- EAN / GTIN
- 7025840086550
- Sales unit
- pcs
- Degree of Protection
- IP30
- Product Net Width
- 145 mm
- Product Net Height
- 88 mm
- Product Net Depth / Length
- 185 mm
- Device Type Manager (DTM)
- Fuseswitchdisconnector
- Electronic Fuse Monitoring
- No
- Fuse Size
- NH00; NH000
- Fuse System
- DIN
- Handle Type
- Front Cover 4P
- Mounting Type
- Baseplate
- Number of Poles
- 4P
- Power Loss
- at Rated Load 3.5 W
- Rated Conditional Short-Circuit Current (I nc )
- (690 V) 50 kiloampere rms
- Rated Current (I n )
- 160 A
- Rated Frequency (f)
- Main Circuit 50/60 Hz
- Rated Impulse Withstand Voltage (U imp )
- Main Circuit 8 kV
- Rated Operational Current AC-22B (I e )
- (500 V) 160 A
- Rated Operational Voltage
- 500 V AC
- Rated Voltage (U r )
- 500 V AC
- Special Functions
- Not Included
- Standards
- IEC60947-3; GB/T14048.3
- Terminal Type
- Cable Clamp
- Declaration of Conformity - CE
- 1SEP500050P0001
- Object Classification Code
- S
- ETIM 9
- EC001040 - Fuse switch disconnector
- eClass
- V11.1 : 27371401
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Norway)
- 1687807
- E-Number (Sweden)
- 3171969
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7025840086550
- SAP 1200493365
- Code 82631198
Product Documentation
