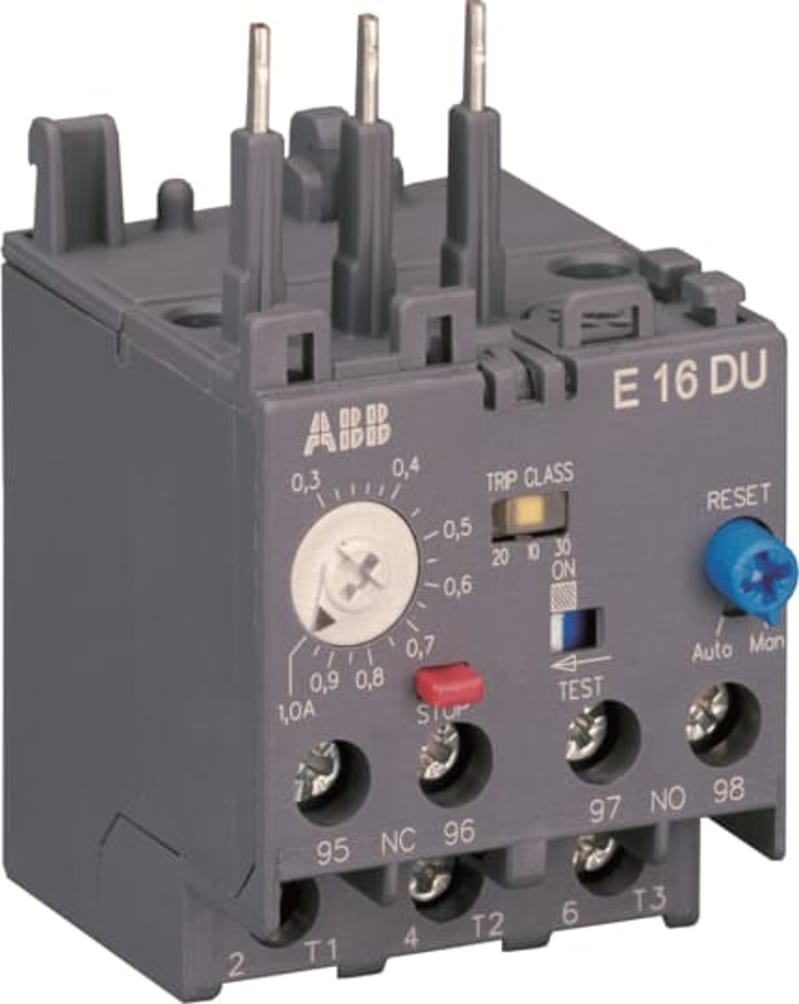

EOL E16 DU 18,9 KL 10-30

ABB E16DU-18.9 — The E16DU-18.9 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory.

Manufacturer part number (MPN)

E16DU-18.9

EAN / GTIN

4013614395260

Sales unit

pcs

Package quantity

100 pcs

Country of Origin

India

Product Sales Status

Active

Product Net Width

44.4 mm

Product Net Height

74.6 mm

Product Net Depth / Length

57 mm

Setting Range

5.7 ... 18.9 A

Rated Operational Voltage

Auxiliary Circuit 600 V AC/DC; Main Circuit 690 V AC

Rated Operational Current (I e )

18.9 A

Rated Frequency (f)

Auxiliary Circuit 50 Hz; Auxiliary Circuit 60 Hz; Auxiliary Circuit DC; Main Circuit 50 Hz; Main Circuit 60 Hz

Rated Impulse Withstand Voltage (U imp )

Auxiliary Circuit 6 kV; Main Circuit 6 kV

Rated Insulation Voltage (U i )

690 V

Number of Poles

3P

Number of Auxiliary Contacts NC

1

Number of Auxiliary Contacts NO

1

Number of Protected Poles

3

Conventional Free-air Thermal Current (I th )

Auxiliary Circuit NC 6 A; Auxiliary Circuit NO 6 A

Rated Operational Current AC-15 (I e )

(240 V) NC 3 A; (240 V) NO 3 A; (400 V) NC 1.1 A; (400 V) NO 1.1 A; (500 V) NC 0.72 A; (500 V) NO 0.72 A

Rated Operational Current DC-13 (I e )

(125 V) NC 0.55 A; (125 V) NO 0.5 A; (24 V) NC 1.5 A; (24 V) NO 1.5 A; (250 V) NC 0.27 A; (250 V) NO 0.27 A; (60 V) NC 0.55 A; (60 V) NO 0.55 A

Degree of Protection

IP20

Pollution Degree

3

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible 1/2x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm²

Connecting Capacity Main Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible 1/2x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm²

Tightening Torque

Auxiliary Circuit 0.8 ... 1.2 N·m; Main Circuit 0.8 ... 1.5 N·m

Wire Stripping Length

Auxiliary Circuit 9 mm; Main Circuit 9 mm

Recommended Screw Driver

Auxiliary Circuit Pozidriv 2; Main Circuit Pozidriv 2

Mounting Position

1 ... 6

Power Loss

at Rated Operating Conditions per Pole 0.028 ... 0.304 W

Suitable For

B6; B7; BC6; BC7; A09; A12; A16; AL09; AL12; AL16; VB6; VB7; VBC6; VBC7

Standards

IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Maximum Operating Voltage UL/CSA

Main Circuit 600 V AC

Contact Rating UL/CSA

B600; Q300

Connecting Capacity Main Circuit UL/CSA

Flexible 1/2x 16-10 AWG; Stranded 1/2x 16-10 AWG

Connecting Capacity Auxiliary Circuit UL/CSA

Flexible 1/2x 16-10 AWG; Stranded 1/2x 16-10 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 7 in·lb; Main Circuit 7 in·lb

Ambient Air Temperature

Operation -25 ... +70 °C; Operation Compensated -25 ... +70 °C; Storage -50 ... +85 °C

Ambient Air Temperature Compensation

Yes

Maximum Operating Altitude Permissible

2000 m

Resistance to Shock acc. to IEC 60068-2-27

11 ms Pulse 15g

Resistance to Vibrations

5g 3 ... 150 Hz

RoHS Information

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA

2CMT2023-006525

CB Certificate

1SAA964002-2002

CQC Certificate

CQC2008010309289447

Declaration of Conformity - CCC

2020980309000285

Declaration of Conformity - CE

1SAD101100-3602

Declaration of Conformity - UKCA

1SAD201100-3602

EAC Certificate

1SAA941003-2701

RMRS Certificate

1SAA964000-0703

UL Certificate

E48139-19990512

Object Classification Code

F

ETIM 9

EC001080 - Electronic overload relay

eClass

V11.0 : 27371502

UNSPSC

39122330

IDEA Granular Category Code (IGCC)

5365 >> Electronic overload relay

E-Number (Finland)

3709394

E-Number (Norway)

4116949

E-Number (Sweden)

3228764

HS Code

8536.49

• EAN 4013614395260
• SAP 1000407502
• Code 81123182
