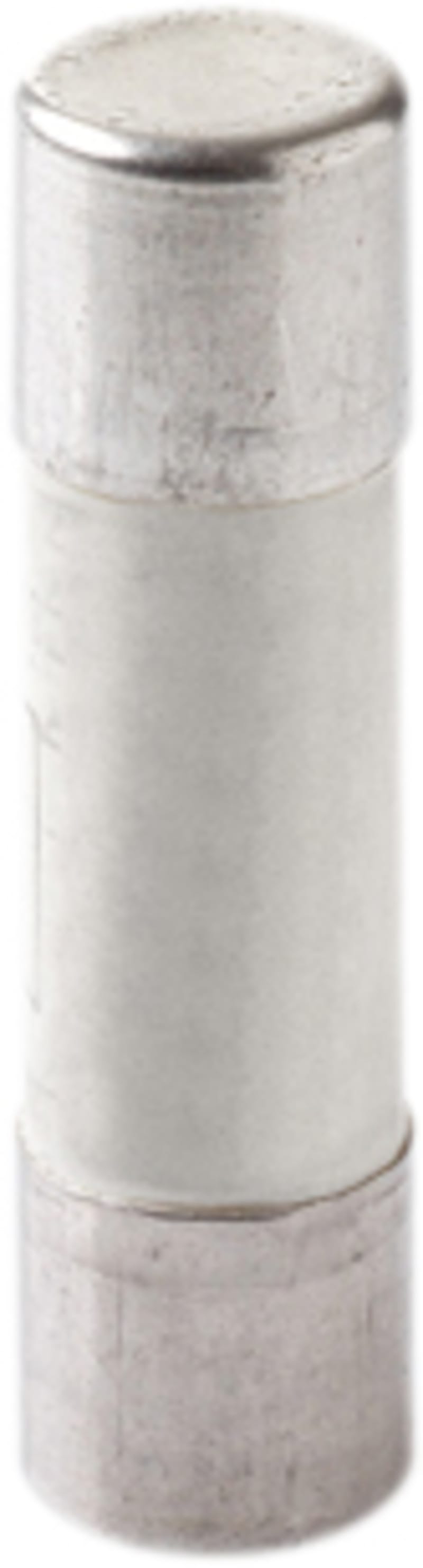

ABB 2CSM257603R1801 E 9F14 GG20 is a 14X51 mm cylindrical fuse for circuits protection
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CSM257603R1801 E 9F14 GG20 is a 14X51 mm cylindrical fuse for circuits protection is listed under Electrical Components / Fuses. Sales unit: pcs; Package quantity: 10 pcs; Fuse Type: gG; Construction Material: Ceramic; Fuse Size: 14x51; Contact Material: copper silver plated (Cu/Ag).
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM257603R1801
- EAN / GTIN
- 8012542576037
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Fuse Type
- gG
- Release Type
- gG: Used in general protection of cables and lines in installation and industrial applications
- Construction Material
- Ceramic
- Fuse Size
- 14x51
- Contact Material
- copper silver plated (Cu/Ag)
- Rated Voltage (U r )
- 690 V
- Rated Current (I n )
- 20 A
- Maximum Breaking Capacity
- 120 kA
- Power Loss
- Total 2.75 W; at Rated Operating Conditions per Pole 2.75 W
- I²t Characteristic
- 9AKK108467A0128
- Environmental Information
- See RoHS Information
- Product Net Width
- 1 mm
- Product Net Height
- 51 mm
- Product Net Depth / Length
- 1 mm
- Dimension Diagram
- 9AKK108466A8533
- Cut-off Current Characteristic
- 9AKK108466A9072
- Declaration of Conformity - CE
- 9AKK106713A5625
- ETIM 9
- EC002704 - Cylindrical fuse
- UNSPSC
- 39121606
- eClass
- V11.0 : 27142002
- Object Classification Code
- F
- Standards
- IEC 60269-2
- Size
- 14x51 mm
- Voltage type
- AC
- Utilization category according to IEC 60269
- gL/gG (cable protection/equipment protection)
- Nominal current
- 20 A
- With striker
- No
- Breaking capacity
- 120 kA
- Power loss at rated current
- 2.75 W
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 8012542576037
- SAP 1200640882
- Code 83054162
Product Documentation
