Detector TVOC-2-DP8 8M
Pricing
Request a quote
We reply within 24 hours
Product Description

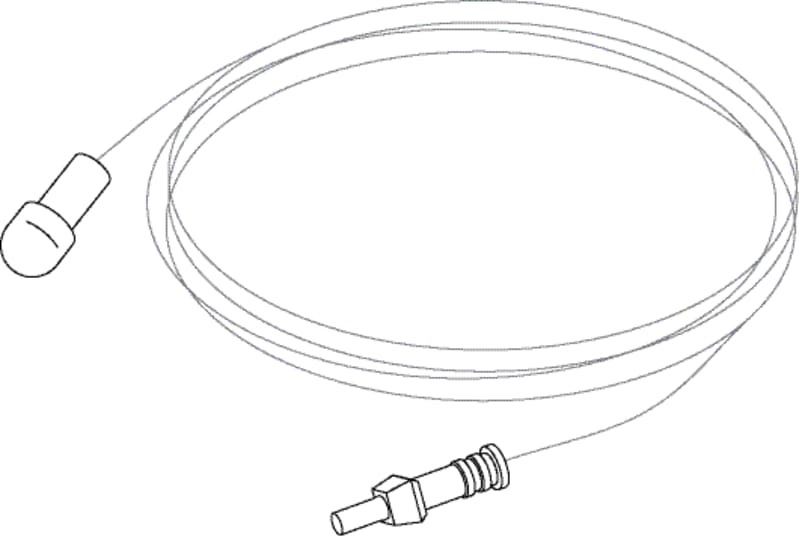

ABB TVOC-2-DP8 — The TVOC-2-DP8 Detector Cable 8 m is a key accessory to the TVOC-2 Arc Guard System. The detectors are installed in the switchgear panels to monitor for any unwanted arc flashes. The detectors consists of a fiber optic cable connected to a lens that can detect light in a 180 degree angle at distances of 3 m, depending on the light intensity.
Technical Specifications
- Manufacturer part number (MPN)
- TVOC-2-DP8
- EAN / GTIN
- 7320500382301
- Sales unit
- pcs
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Standard delivery time
- Storage Location
- 4001
- Environmental Product Declaration - EPD
- No certification needed
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -25 ... +85 °C
- Environmental Information
- 1SFC170003D0201
- Product Net Width
- 350 mm
- Product Net Height
- 20 mm
- Product Net Depth / Length
- 300 mm
- Additional Information
- DETECTOR suitable for TVOC-2
- Product Main Type
- TVOC-2
- Suitable For
- TVOC-2
- Suitable for Product Class
- Arc Monitor
- Mounting Type
- Connected to main unit or extension module
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 0
- BV Certificate
- 39407_B1
- CSA Certificate
- UL_20110511-E155370
- cULus Certificate
- UL_20110511-E155370
- Data Sheet, Technical Information
- 1SFC170001C0201
- Declaration of Conformity - CE
- 2CMT005420
- DNV Certificate
- DNV_E-12926
- EAC Certificate
- 9AKK106713A1450
- UL Certificate
- UL_20110511-E155370
- Instructions and Manuals
- 1SFC170011M0201
- Instructions and Manuals (Part 2)
- 1SFC170011M0201
- ETIM 9
- EC002911 - Arc detection and mitigation system
- IDEA Granular Category Code (IGCC)
- 6958 >> Fiber optic detector
- Object Classification Code
- B
- UNSPSC
- 43223319
- WEEE Category
- Product Not in WEEE Scope
- eClass
- V11.0 : 27142214
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7320500382301
- SAP 1000407865
- Code 81124505
Product Documentation
More from ABB
ABB
LOAD-Break Switch OT125F3
ABB
WALL-Mount Cabinet TL204G 650X550X275MM IP55
2CPX010071R9999
ABB
Summer TSR (2CSM100000R0831)
ABB
ED4 DIN-rail 4PW 35X994MM
2CPX039384R9999
ABB
ABB 2CPX010850R9999 membrane flange, with 8 entries, for cables sections 8 x 13 - 34 mm
ABB

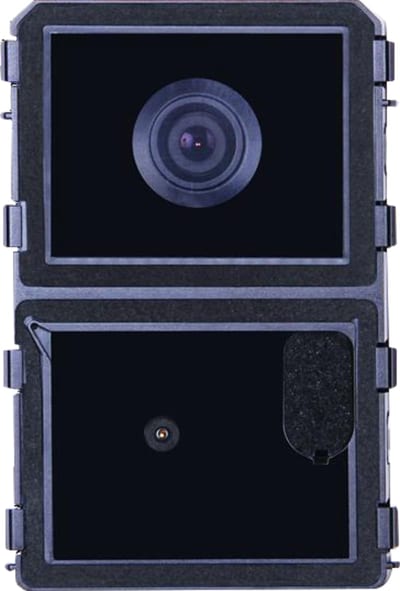

WM Audio/Video Module with Teleslynge
M251382M
ABB

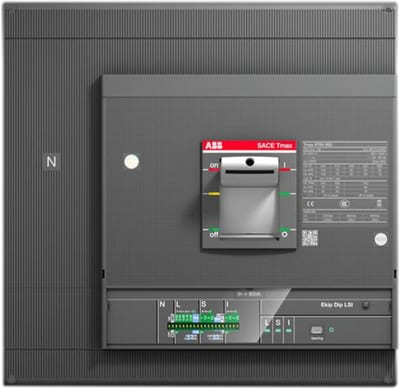

ABB SACE Tmax XT6N 800 Moulded-Case Circuit Breaker — Ekip Dip LS/In, In=630 A, 4-Pole
