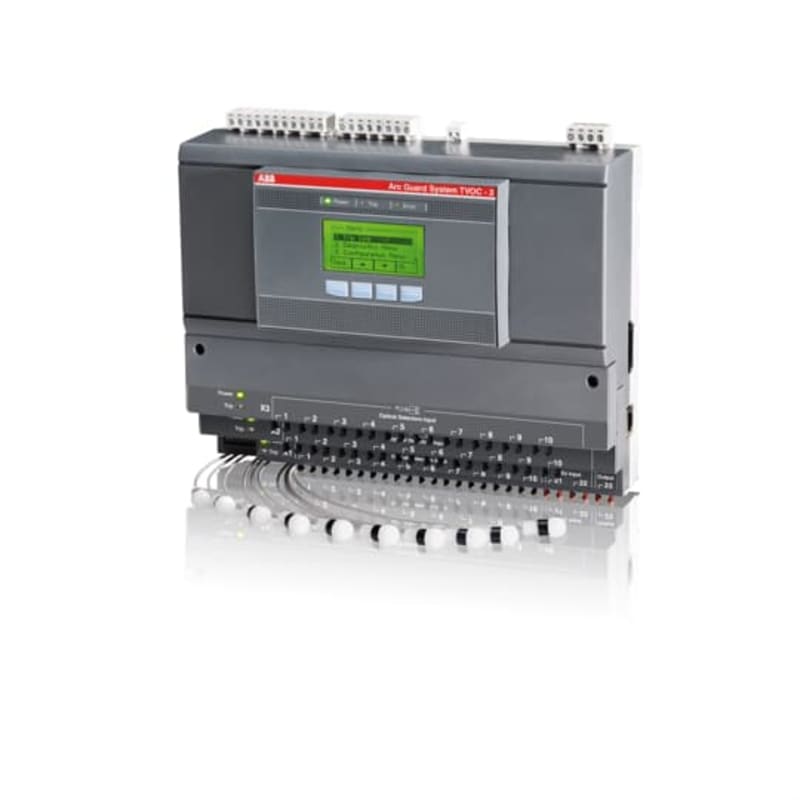

Lysbuevakt TVOC-2 24-48V
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB TVOC-2-48 — The TVOC-2 Arc Guard System is an arc protection relay that mitigates arc faults and helps to protect people and equipment. The Arc monitor is the main unit of the Arc Guard System which detects the light of an arc and through the fast IGBT contacts sends an electrical signal within 1 ms to a nearby breaker that breaks the power and extinguishes the arc. The Arc monitor has 10 detector inputs and can trip up to three breakers with zone selectivity if needed. Up to 2 extension units can extend the number of light detectors to 30 and the unit includes an HMI that can be placed on the outside of the door. Detectors are sold in a wide range of lengths to fit a full switchgear design. Supply voltage 24. 48 V DC. Accessories include current sensing unit, optical cables, cable straps etc.
Technical Specifications
- Manufacturer part number (MPN)
- TVOC-2-48
- EAN / GTIN
- 7320500506899
- Sales unit
- pcs
- Voltage
- 24-48 V
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Standard delivery time
- Storage Location
- 4001
- Environmental Product Declaration - EPD
- No certification needed
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -25 ... +55 °C
- Environmental Information
- 1SAC200041H0003
- Product Net Width
- 210 mm
- Product Net Height
- 230 mm
- Product Net Depth / Length
- 80 mm
- Product Main Type
- TVOC-2
- Suitable For
- TVOC-2
- Mounting Type
- Wall mounted or DIN
- Number of Auxiliary Contacts CO (SPDT)
- 3
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 3
- Rated Operational Voltage
- 24 ... 48 V DC
- Terminal Type
- Screw Terminals
- BV Certificate
- 39407_B1
- CSA Certificate
- UL_20110511-E155370
- cULus Certificate
- UL_20110511-E155370
- Data Sheet, Technical Information
- 1SFC170001C0201
- Declaration of Conformity - CE
- 2CMT005420
- DNV Certificate
- DNV_E-12926
- EAC Certificate
- 9AKK106713A1450
- UL Certificate
- UL_20110511-E155370
- Instructions and Manuals
- 1SFC170011M0201
- Instructions and Manuals (Part 2)
- 1SFC170011M0201
- ETIM 9
- EC002911 - Arc detection and mitigation system
- IDEA Granular Category Code (IGCC)
- 3594 >> Interface module
- Object Classification Code
- B
- UNSPSC
- 32151802
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.0 : 27142214
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7320500506899
- SAP 1200661334
- Code 83104752
Product Documentation
More from ABB
ABB
FUSE Holder E 92/32 (2CSM200883R1801)
ABB
ABB SACE Tmax XT1B 160 Moulded-Case Circuit Breaker — TMD R16, In=16 A, 3-Pole
1SDA066799R1
ABB
ABB 2CSG251151R4051 M4M 20 is a network analyzer with 2 digital outputs, aux supply 48-240 V AC/DC and Bluetooth
ABB
ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — TMD R200, In=200 A, 3-Pole
1SDA068058R1
ABB
Jussi SENT.PL 2 X RJ45
1819DC-214
ABB
ABB S803P-C125 Miniature Circuit Breaker — 3P, Type C, 125 A, 50 kA
2CCG001234R0001
ABB
ABB SA/S 4.16.6.2 KNX Switch Actuator, 4-Channel 16 A with Current Detection and Energy Function
2CDG110270R0011
ABB
ABB ABZ/S 2.1 KNX Time Switch and Logic Module, Annual Program
2CDG110072R0011
Catalogue entry last verified: 2026-08-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TVOC-2-48?
- TVOC-2-48 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is TVOC-2-48.
- What is the HS code for TVOC-2-48?
- The customs tariff (HS) code for TVOC-2-48 is 8538.90.
- Who manufactures TVOC-2-48?
- TVOC-2-48 is a ABB product in the SC002911 range.
- Is a datasheet available for TVOC-2-48?
- Yes — the TVOC-2-48 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TVOC-2-48?
- The minimum order quantity is 1.
- Is TVOC-2-48 available?
- Yes — TVOC-2-48 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
