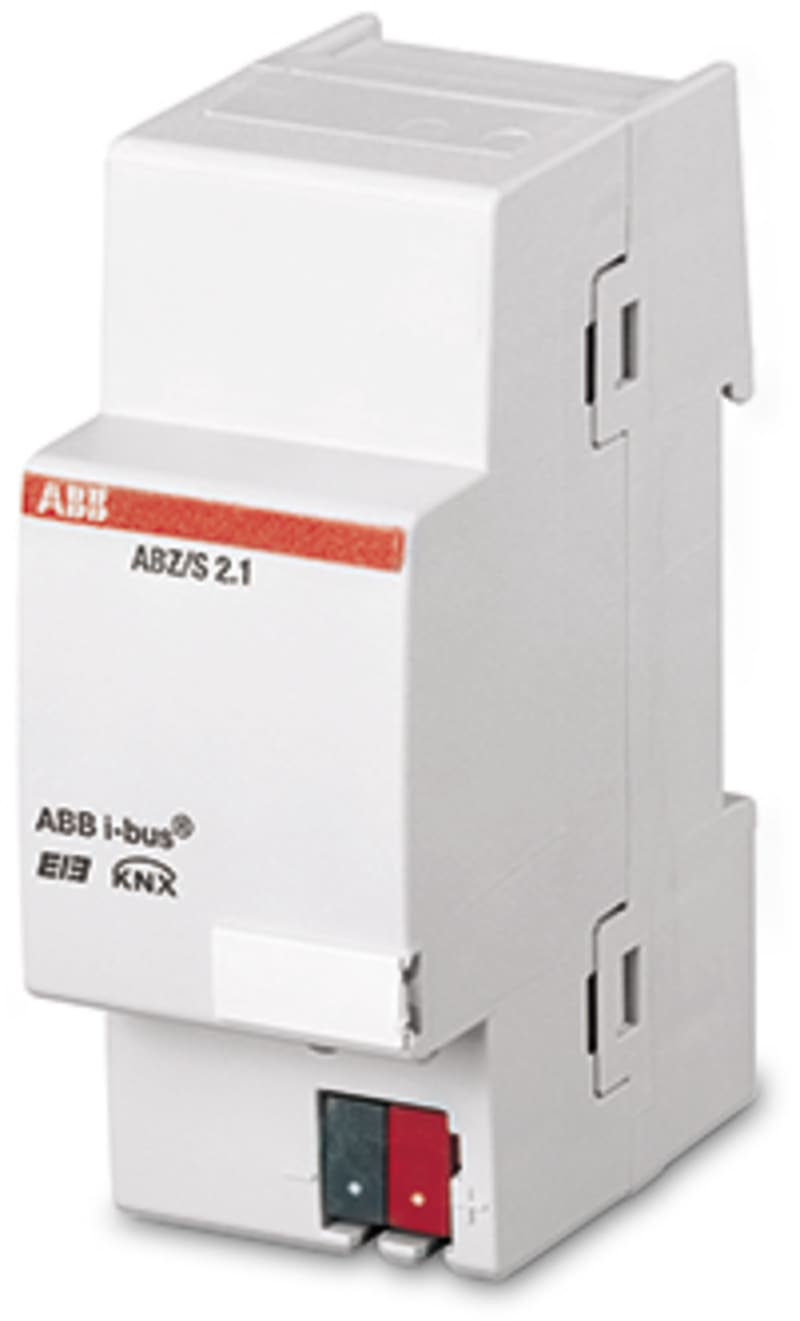

ABB ABZ/S 2.1 KNX Time Switch and Logic Module, Annual Program
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110072R0011 is a KNX annual-program time switch and logic module (ABZ/S 2.1) supporting daily, weekly and annual schedules over KNX twisted-pair. The 2-module DIN-rail device measures 36 x 90 x 64.5 mm, is IP20 rated and requires no batteries. It is used in KNX installations to trigger scheduled scenes, lighting groups and HVAC modes.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110072R0011
- EAN / GTIN
- 4016779652360
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941029P0003
- Wiring Diagram
- 2CDC072053F0005
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC509034D0201
- Number of Channels
- 1
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Options Provided
- Daily program; Weekly program; Annual program
- Manual Operation
- No
- Number of Batteries
- 0
- Terminal Type
- Bus Connection
- Voltage Range
- KNX
- Power Loss
- 0.3 W; Total 0 W
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072025F0017
- EPLAN Data
- 9AAC189198_EPLAN
- Declaration of Conformity - CE
- 2CDK509011D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0617
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0015
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000689 - Time switch for bus system
- eClass
- V11.0 : 27143140
- UNSPSC
- 39121801
- Object Classification Code
- A
- Mounting method
- DRA (DIN-rail adaptor)
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Other bus systems
- None
- Bus system LON
- No
- Logic object
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779652360
- SAP 1000464417
- Code 8572581
Product Documentation
More from ABB
ABB

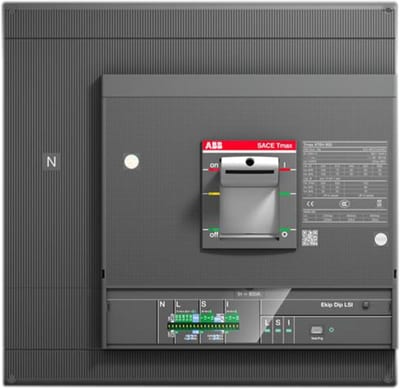

ABB SACE Tmax XT6N 800 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=630 A, 4-Pole
1SDA107571R1
ABB

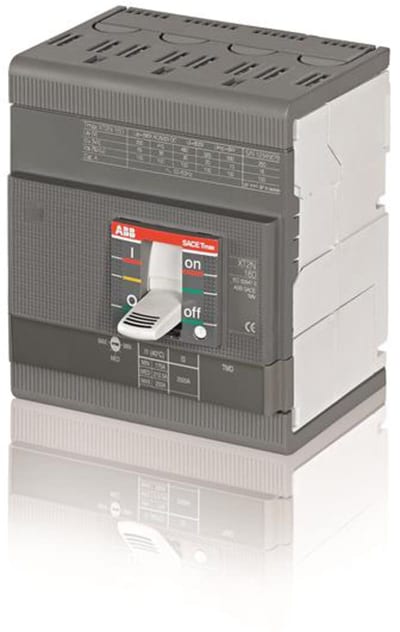

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMA R63, In=63 A, 4-Pole
1SDA067037R1
ABB

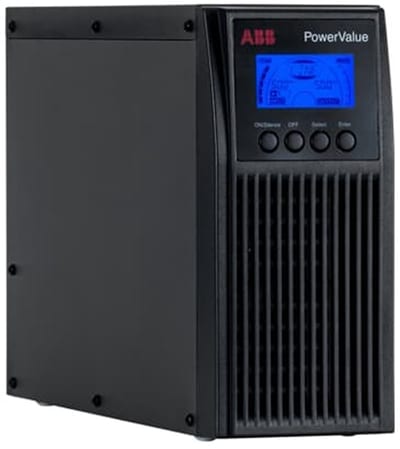

ABB VFI online double conversion;900W;8.5MIN;RS232;USB;mini COM slot 4NWP100160R0001
ABB
ABB WES/A 4.1.1 KNX Basic Weather Sensor (Wind, Temperature, Rain, Twilight)
WES/A4.1.1
ABB

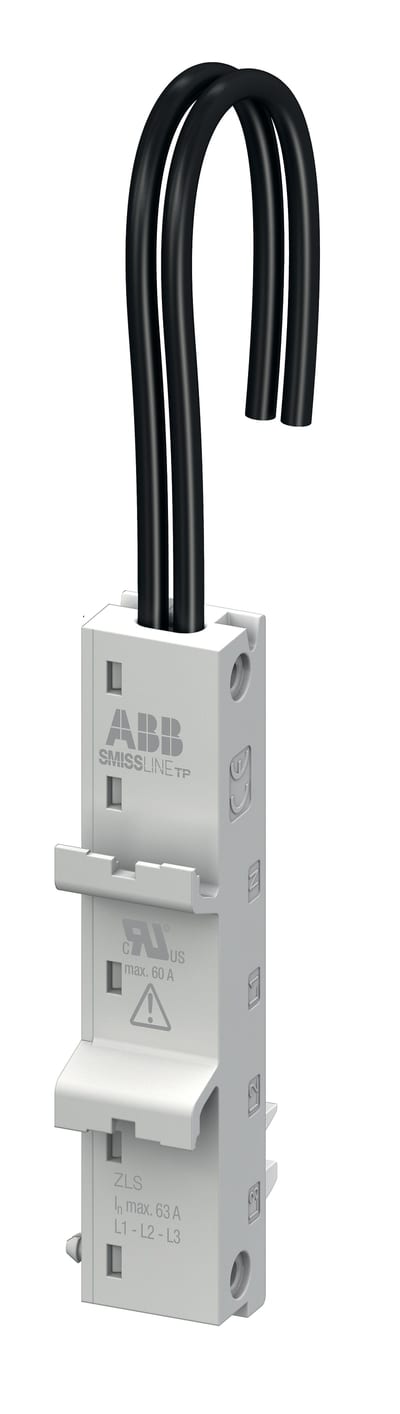

Universaladapter ZLS970300 (2CCA180559R0001)
ABB
ARIA 32 Mounting PLATE, Steel
4TBA831026C0100
ABB

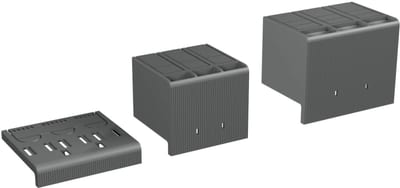

HTC XT3, 3P, Avd. high, 2 pcs
