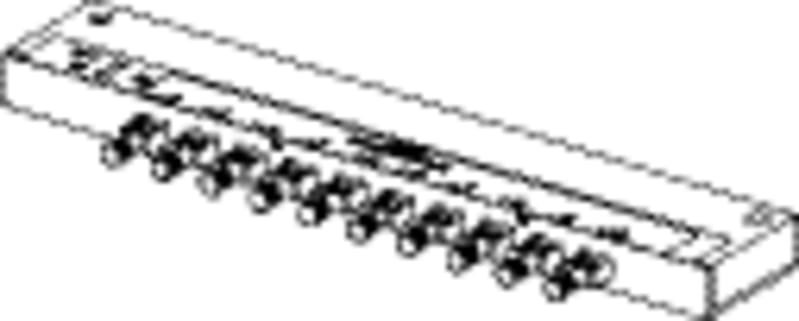

Expansion Unit TVOC-2-E3
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB TVOC-2-E3 — The extension unit TVOC-2-E3 can be assembled on the TVOC-2 main unit to increase the number of detector inputs. There are 10 detector inputs per extension unit E3 and up to 2 extension units can be added to the main unit, creating 30 detector inputs in total. Only TVOC-2-DP60 60 m cable detector can be used with the E3 extension unit.
Technical Specifications
- Manufacturer part number (MPN)
- TVOC-2-E3
- EAN / GTIN
- 7320500382592
- Sales unit
- pcs
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Environmental Product Declaration - EPD
- No certification needed
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -25 ... +55 °C
- Environmental Information
- 1SFC170003D0201
- Product Net Width
- 230 mm
- Product Net Height
- 50 mm
- Product Net Depth / Length
- 25 mm
- Additional Information
- ARC MONITOR TVOC-2 EXTENSION FOR 60M CABLE
- Product Main Type
- TVOC-2
- Suitable For
- TVOC-2
- Mounting Type
- Mounted on main unit
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 0
- Power Loss
- 0.150 W
- BV Certificate
- 39407_B1
- CSA Certificate
- UL_20110511-E155370
- cULus Certificate
- UL_20110511-E155370
- Data Sheet, Technical Information
- 1SFC170001C0201
- Declaration of Conformity - CE
- 2CMT005420
- DNV Certificate
- DNV_E-12926
- EAC Certificate
- 9AKK106713A1450
- UL Certificate
- UL_20110511-E155370
- Instructions and Manuals
- 1SFC170011M0201
- Instructions and Manuals (Part 2)
- 1SFC170011M0201
- ETIM 9
- EC002911 - Arc detection and mitigation system
- IDEA Granular Category Code (IGCC)
- 3594 >> Interface module
- Object Classification Code
- B
- UNSPSC
- 32151802
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.0 : 27142214
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7320500382592
- SAP 1000407860
- Code 81124503
Product Documentation
