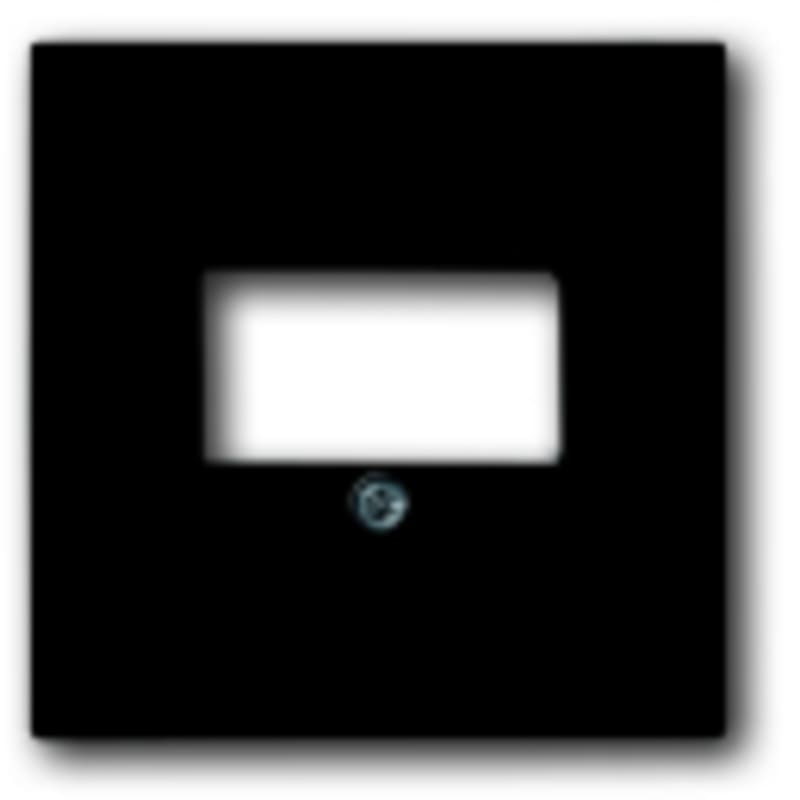

Impressivo SENT.PL. LYD/Bilde/USB Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA001710A3613 — For telephone connection unit.For USB, VGA, HDMI inserts and communication adapter. For loudspeaker connection box. For data module inserts. For USB power supply insert.For modular outlets with 90° RJ45 outlet from Telegärtner (type MJ and WE).
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA001710A3613
- EAN / GTIN
- 4011395056318
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Type of Fastening
- Mounting with Screw
- Modular Components Included
- Cover Plate
- Degree of Protection
- IP20
- Application
- TAE, UAE/TAE, USB/VGA/HDMI/loudspeaker/charging
- Type of Indicator
- Without indication field
- Outlet Orientation
- Straight
- Design Range
- Platform 63; future linear; Busch-axcent; carat; Busch-Dynasty
- Design Range Variant
- Busch-axcent; Busch-axcent pur
- Surface Finishing
- Glossy; Untreated
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 7021
- Color
- anthracite
- Product Net Width
- 63 mm
- Product Net Height
- 63 mm
- Product Net Depth / Length
- 8.4 mm
- Dimension Diagram
- 2CKA000097E0400
- Building Information Modeling – BIM
- 9AKK108471A9963; 9AKK108471A9951
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000018 - Insert/cover for communication technology
- eClass
- V11.0 : 27144049
- Mounting method
- Flush-mounted
- Assembly arrangement
- Central cover plate
- Colour
- Anthracite
- Halogen free
- Yes
- With hinged lid
- No
- Utilization
- D-Sub 15-pole
- Surface protection
- Untreated
- Outlet direction
- Straight
- With strain relief
- No
- Material quality
- Thermoplastic
- Imprintable label
- Without indication field
- Suitable for number of connectors
- 1
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- With dust cover
- No
- With imprint
- No
- Impact strength
- IK03
- With buses/couplings
- No
- Support ring
- No
- Transparent
- No
- Suitable for degree of protection (IP)
- IP20
- Device width
- 63 mm
- Device height
- 63 mm
- Device depth
- 8.4 mm
- Number of modules (module system)
- 1
- Min. depth of built-in installation box
- 32 mm
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395056318
- SAP 1000350582
- Code 8393367
Product Documentation
More from ABB
ABB

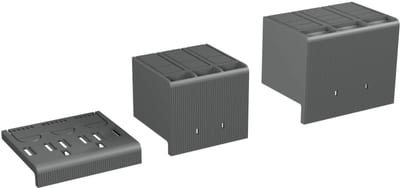

HTC XT3, 4P, Avd. high, 2 pcs
HTC XT3 4p TERM.COVERS HIGH 2p
ABB

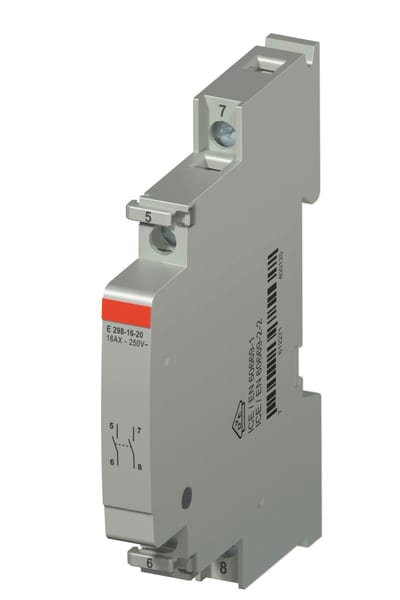

Contact module E298-16-20
