ABB A41 313-100 Silver M-Bus 1-Phase Energy Meter 80 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB A41 313-100 single-phase direct-measurement energy meter with M-Bus interface, 80 A rated current and 57.7-288 V nominal voltage. Multi-tariff electronic meter, MID-approved, accuracy class B, S0 pulse output. DIN-rail mounted, 4 modules wide, IP20 enclosure.
Technical Specifications
- Manufacturer part number (MPN)
- A41 313-100 Sølv M-bus
- EAN / GTIN
- 7392696705042
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 70 mm
- Model
- Direct measurement
- Height
- 26.5 mm
- Depth
- 65 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 0.807 W
- Frequency
- 50–60 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 7
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Energy type
- Effective power and reactive power
- Tariff type
- Multi-tariff
- Tariff control
- External
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 1–9999 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Single phase
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 57.7–288 V
- Nominal voltage (Un) L-L
- 57.7–288 V
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 7392696705042
- SAP 1000327815
- Code 8883409
Product Documentation
More from ABB
ABB

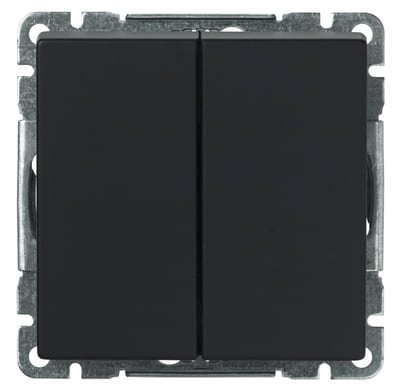

Impressivo Switch 5 Flush Series Black Matte
2TKA00004299
ABB

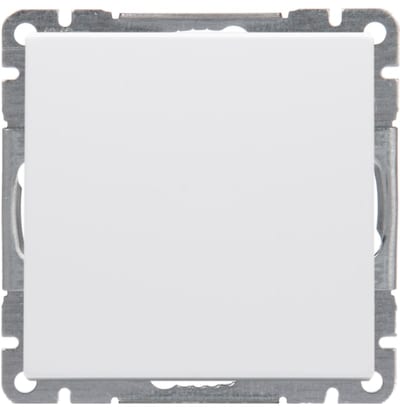

Impressivo Intermediate Switch, Flush, Semi
1067UC-84
ABB

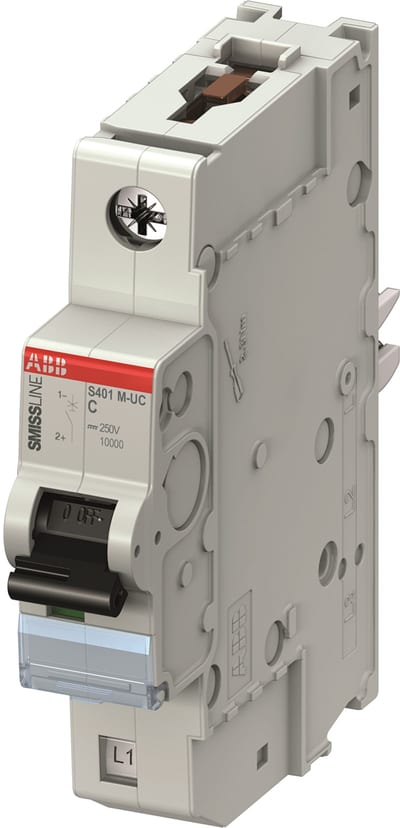

ABB S401-C16 Miniature Circuit Breaker — 1P, Type C, 16 A, 10 kA
2CCS571001R1164
ABB

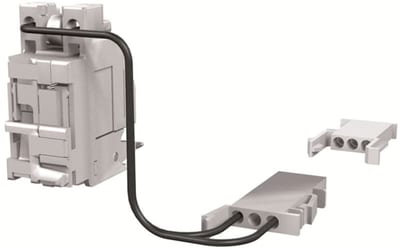

ABB 1SDA066329R1 Shunt Opening Release Wired 24-30V AC-DC FOR Withdrawable XT2-XT4
ABB

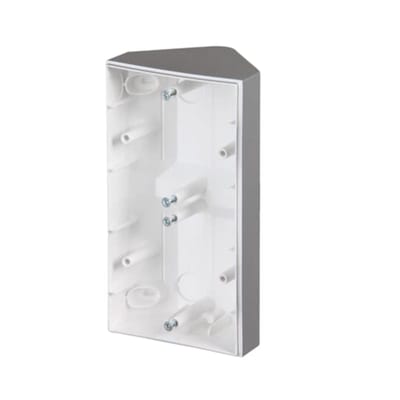

Impressivo Corner Box DBL, EMPTY Aluminium
2TKA00002281
ABB

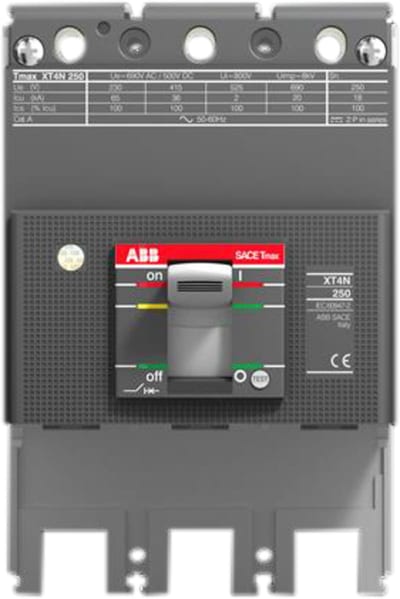

ABB SACE Tmax XT4X 250 Moulded-Case Switch-Disconnector — 3-Pole
1SDA100266R1
ABB

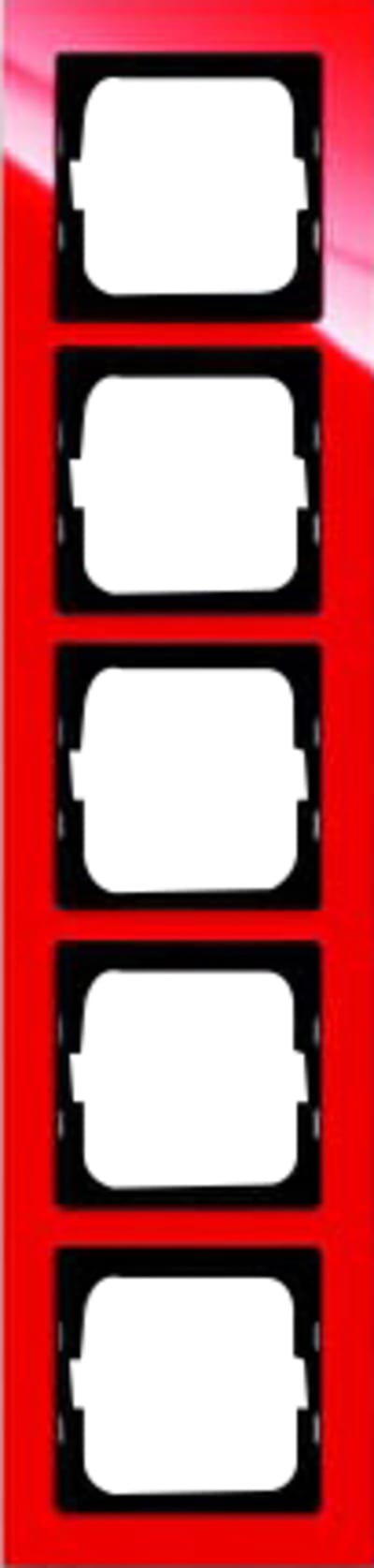

ABB 2CKA001754A4353 for vertical or horizontal installation.
ABB

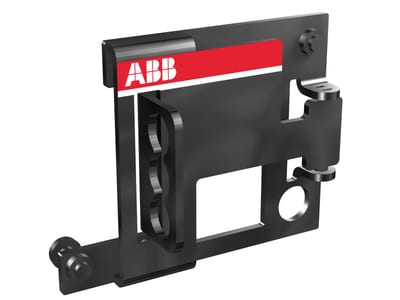

ABB 1SDA066590R1 Padlock Device IN OPEN XT2-XT4
