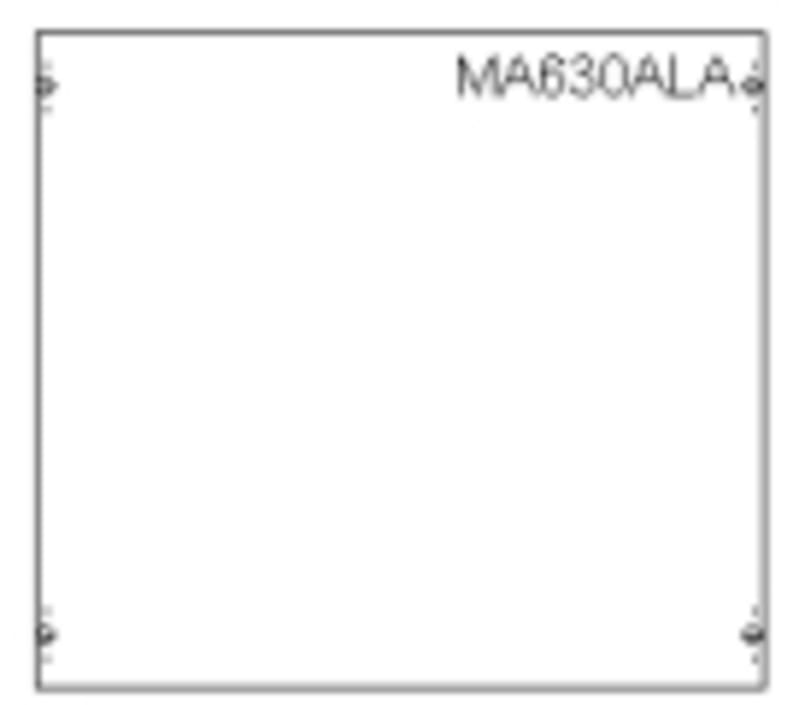

MBA630ALA Switch-Disconnector Module
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041805R9999 MBA630ALA switch-disconnector module for distribution cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041805R9999
- EAN / GTIN
- 4011617418054
- HS code
- 8536.90
- Sales unit
- pcs
- Rated Operational Current (I e )
- 630 A
- Number of Poles
- 4P
- Number of Switches
- 0
- Number of Mountable Devices
- 1
- Number of Panel Heights
- 3
- Enclosure Module Equipment
- Excludes Devices
- Enclosure Mounting Frame
- WR
- Device
- OT630E
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 00
- DIN Place Units
- 72
- Meter Boards
- 0
- Module Function
- Switch disconnector OT not connected
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 630 A
- Color
- Light grey
- Number of Modules
- 72
- Product Net Width
- 500 mm
- Product Net Height
- 450 mm
- Product Net Depth / Length
- 260 mm
- Section Width
- 2
- Built-In Depth ( t 2 )
- 275 mm
- EPLAN Data
- 9AAF623206_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112315M5601
- ETIM 9
- EC001897 - Distributor assembly switch
- eClass
- V11.0 : 27400611
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011617418054
- SAP 1000120224
- Code 81106217
Product Documentation
