ABB SACE Tmax XT6N 800 Moulded-Case Circuit Breaker — TMA 630-6300, In=630 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT6N 800 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 630 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMA 630-6300 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA107561R1, EAN 8015644101749, ABB/SAP material 1200638451, catalogue code 83052958.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT6 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT6N 800 TMA 630-6300 3p FF
- ABB order code (MPN)
- 1SDA107561R1
- EAN / GTIN
- 8015644101749
- ABB / SAP material no.
- 1200638451
- Frame
- XT6 (800 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- TMA 630-6300
- Rated uninterrupted current In
- 630 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644101749
- SAP 1200638451
- Code 83052958
Product Documentation
More from ABB
ABB
YU-C XT5-XT6 F/P 12 Vdc
1SDA104954R1
ABB
Impressivo Switch 7 Flush Intermediate Black Matte
2TKA00004465
ABB
ABB SACE Tmax XT2L 160 Moulded-Case Circuit Breaker — TMA 100-1000, In=100 A, 3-Pole
1SDA067646R1
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — MA 52 Im=314, In=52 A, 3-Pole
1SDA067777R1
ABB

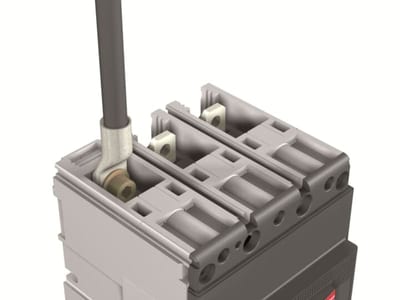

ABB 1SDA066858R1 Front Terminals 4PCS XT3
ABB

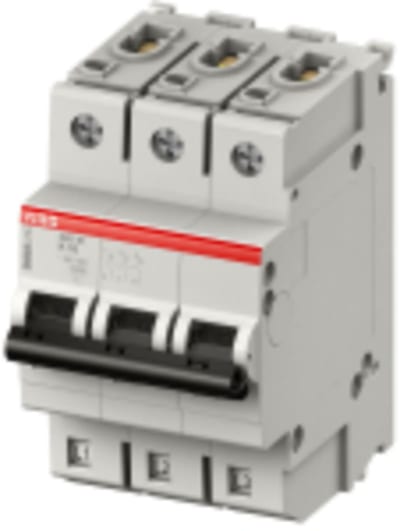

ABB S403-K16 Miniature Circuit Breaker — 3P, Type K, 16 A, 10 kA 2CCS573001R0467
