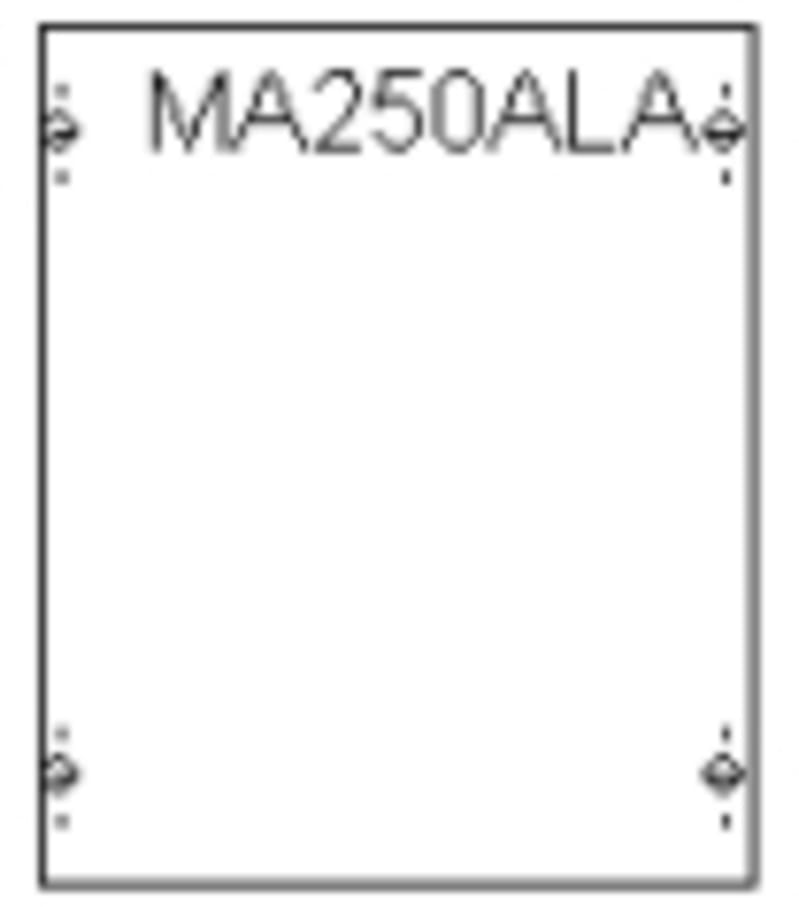

MBA250ALA Switch-Disconnector Module
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041804R9999 MBA250ALA switch-disconnector module for distribution cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041804R9999
- EAN / GTIN
- 4011617418047
- HS code
- 8536.90
- Sales unit
- pcs
- Rated Operational Current (I e )
- 250 A
- Number of Poles
- 4P
- Number of Switches
- 0
- Number of Mountable Devices
- 1
- Number of Panel Heights
- 2
- Enclosure Module Equipment
- Excludes Devices
- Enclosure Mounting Frame
- WR or EDF
- Device
- OT250E
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 000
- DIN Place Units
- 24
- Meter Boards
- 0
- Module Function
- Switch disconnector OT not connected
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 250 A
- Color
- Light grey
- Number of Modules
- 24
- Product Net Width
- 250 mm
- Product Net Height
- 300 mm
- Product Net Depth / Length
- 200 mm
- Section Width
- 1
- Built-In Depth ( t 2 )
- 200 mm
- EPLAN Data
- 9AAF623206_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112315M5601
- ETIM 9
- EC001897 - Distributor assembly switch
- eClass
- V11.0 : 27400611
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011617418047
- SAP 1000120223
- Code 81106215
Product Documentation
More from ABB
ABB
Tenton 6/12V Aluminium
SB/U12.0.1-83
ABB
ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — In=600 A, 3-Pole
1SDA068270R1
ABB
Lysbueautomat S-ARC1 M B20
2CSA275901R9205
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B40 A300MA
2CSR275180R3405
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMD R2,5, In=2.5 A, 3-Pole
1SDA067002R1
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B10 A10MA
ABB
ABB SACE Tmax XT7S 1000 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI 1000A, In=1000 A, 3-Pole
XT7S 1000 Ekip Hi-Touch LSI 1000A 3p FF
ABB

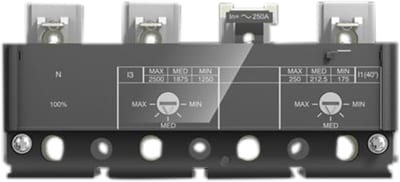

TMD 25-300 XT4 4P (1SDA067469R1)
