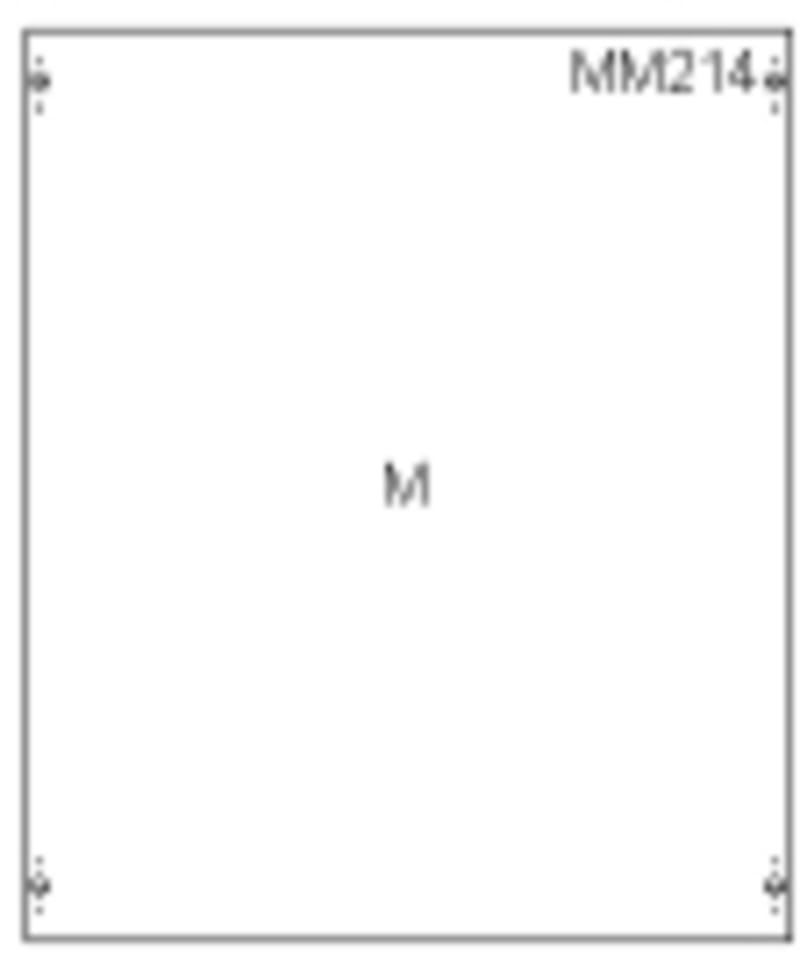

MBM214 Mounting plate module
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041717R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Mounting plate, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usable depth of 103 mm up to 158 mm, usable width of 438 mm, usable height of 566 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 200 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041717R9999
- EAN / GTIN
- 4011617417170
- Sales unit
- pcs
- Number of Panel Heights
- 4
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 0
- DIN Place Units
- 96
- Meter Boards
- 0
- Module Function
- Mounting plate
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Color
- Light grey
- Number of Modules
- 96
- Product Net Width
- 500 mm
- Product Net Height
- 600 mm
- Product Net Depth / Length
- 200 mm
- Section Width
- 2
- Built-In Depth ( t 2 )
- 120 mm
- Thickness
- 2 mm
- EPLAN Data
- 9AAF623200_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112203M5601
- Mounting Type
- Stepless adjustable via mounting bracket
- ETIM 9
- EC001893 - Distributor assembly for device surface mounting
- eClass
- V11.0 : 27400608
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 500 mm
- Height
- 600 mm
- Depth
- 200 mm
- With mounting plate
- Yes
- With mounting rail
- No
- With cover
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617417170
- SAP 1000120151
- Code 8618692
