MBG424 Din-rail module
Pricing
Request a quote
We reply within 24 hours
Product Description

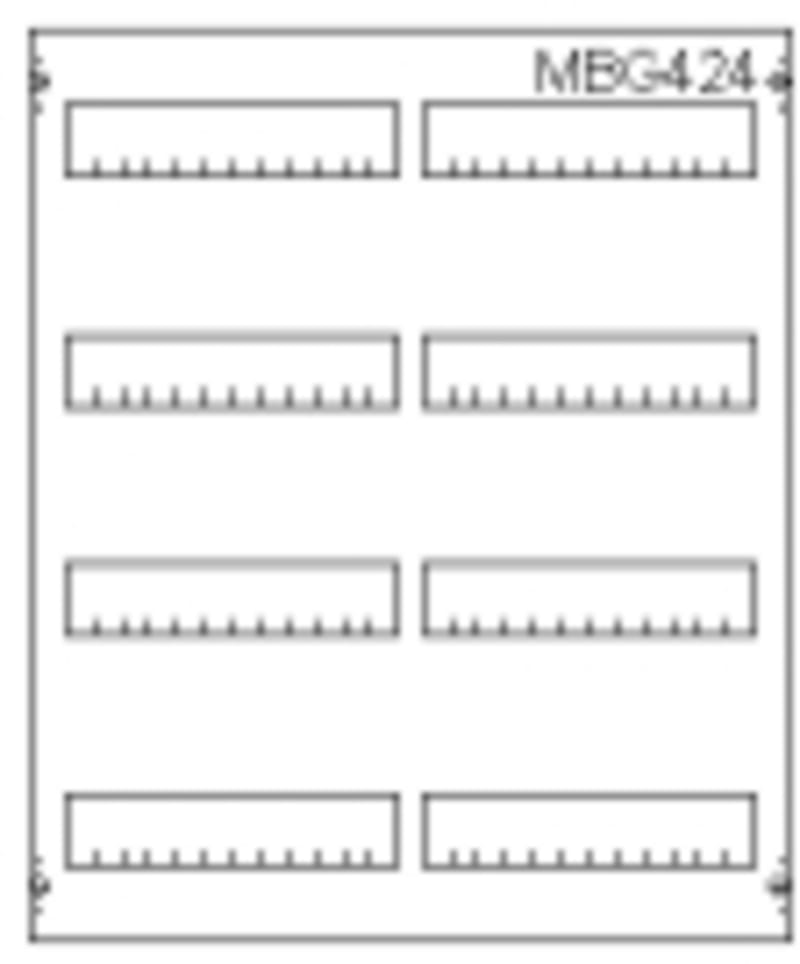

ABB 2CPX041668R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for DIN rail mounting devices, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usable as of the cabinet depth of 120 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041668R9999
- EAN / GTIN
- 4011617416685
- Sales unit
- pcs
- Number of DIN Rails for Mounting
- 4
- Number of Modular Spacings per DIN Rail
- 24
- Number of Panel Heights
- 4
- Number of Rows
- 4
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 0
- DIN Place Units
- 96
- Meter Boards
- 0
- Module Function
- DIN rail mounting devices
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Color
- Light grey
- Number of Modules
- 96
- Product Net Width
- 500 mm
- Product Net Height
- 600 mm
- Product Net Depth / Length
- 120 mm
- Section Width
- 2
- Built-In Depth ( t 2 )
- 120 mm
- EPLAN Data
- 9AAF623198_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112193M5601
- ETIM 9
- EC002575 - Distributor assembly for serial built-in device
- eClass
- V11.0 : 27400620
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2; DIN 43880
- Width
- 500 mm
- Height
- 600 mm
- Depth
- 120 mm
- Number of DIN-rails
- 4
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617416685
- SAP 1000120113
- Code 8618647
Product Documentation
