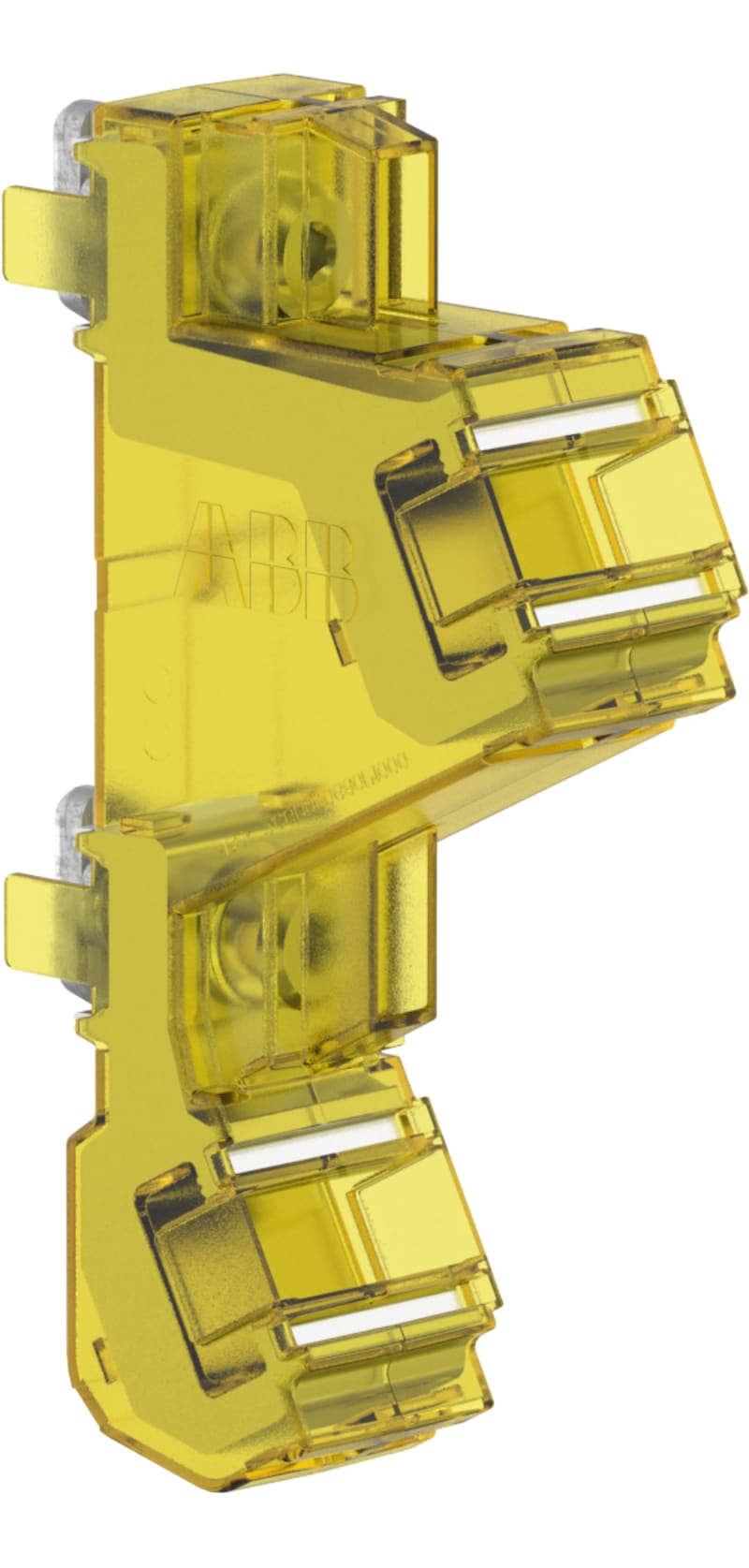

ABB ADI 3M

ABB ADI 3M — Insulated connector for compact fitting of ADI 300. The ADI 3M is sold as a separate unit where standard ADI 300 connectors are added separately.

Manufacturer part number (MPN)

ADI 3M

EAN / GTIN

7331980053797

Sales unit

pcs

Package quantity

30 pcs

Environmental Product Declaration - EPD

2CGC0149

Degree of Protection

acc. to IEC 60529 IP2X

Product Net Width

37 mm

Product Net Height

170 mm

Product Net Depth / Length

95 mm

Conventional Thermal Current (I the )

630 A

Power Loss

at Rated Operating Conditions per Pole 44 W

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

690 V

Rated Operational Voltage

500 V

Rated Peak Withstand Current Low Voltage (I pk )

37 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 34 kiloampere rms

Standards

IEC 61238-1

ETIM 9

EC000001 - Busbar terminal

eClass

V11.1 : 27141146

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

5411223

E-Number (Norway)

1145524

HS Code

8538.10

• EAN 7331980053797
• SAP 1200480492
• Code 82581094
