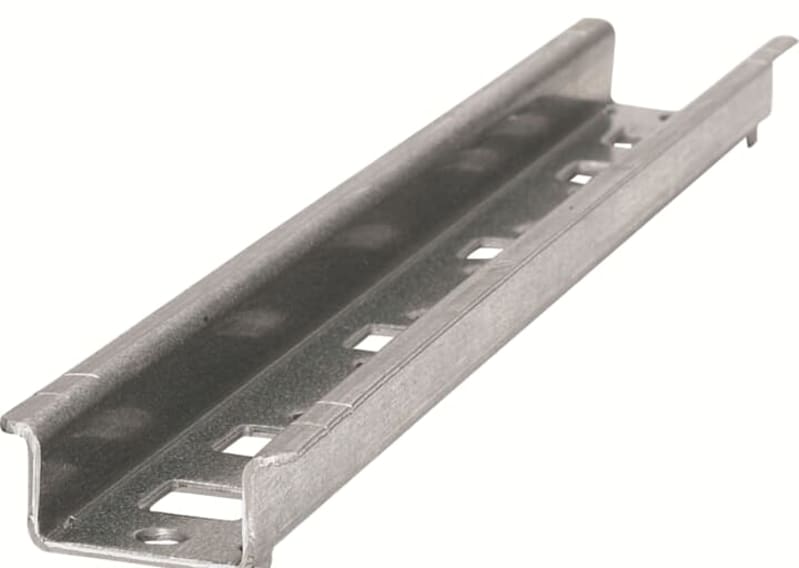

DIN-RAIL ED1P30 35mm X 15mm L=244mm
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB ED1P30 — Top-hat rail 35 x 15 mm, field width 1, length 244 mm, width rail 1, for mounting on the EDF and WR mounting frame, with a hole pattern for ED44/ED45 wire holders.
Technical Specifications
- Manufacturer part number (MPN)
- ED1P30
- EAN / GTIN
- 4011617623199
- Sales unit
- pcs
- Length
- 244 mm
- Model Number
- DIN rail (top hat rail) 35/15 mm
- Enclosure Type
- Mounting rail
- DIN Place Units
- 0
- Meter Boards
- 0
- Shape
- Square hole
- Surface Finishing
- Sendzimir galvanized
- Material
- Steel
- Product Net Width
- 244 mm
- Product Net Height
- 35 mm
- Product Net Depth / Length
- 15 mm
- Thickness
- 1.5 mm
- Declaration of Conformity - CE
- 2CPC100019X0201
- ETIM 9
- EC001285 - Mounting rail
- ETIM 10
- EC001285 - Mounting rail for electrical/industrial control equipment
- eClass
- V11.0 : 27400602
- Object Classification Code
- U
- Model
- DIN rail (top hat rail) 35/15 mm
- Height
- 35 mm
- Surface protection
- Hot-dip galvanised
- Material thickness
- 1.5 mm
- Punch shape
- Square hole
- Drill hole distance centrically
- 230 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4011617623199
- SAP 1000120599
- Code 81112730
Product Documentation
