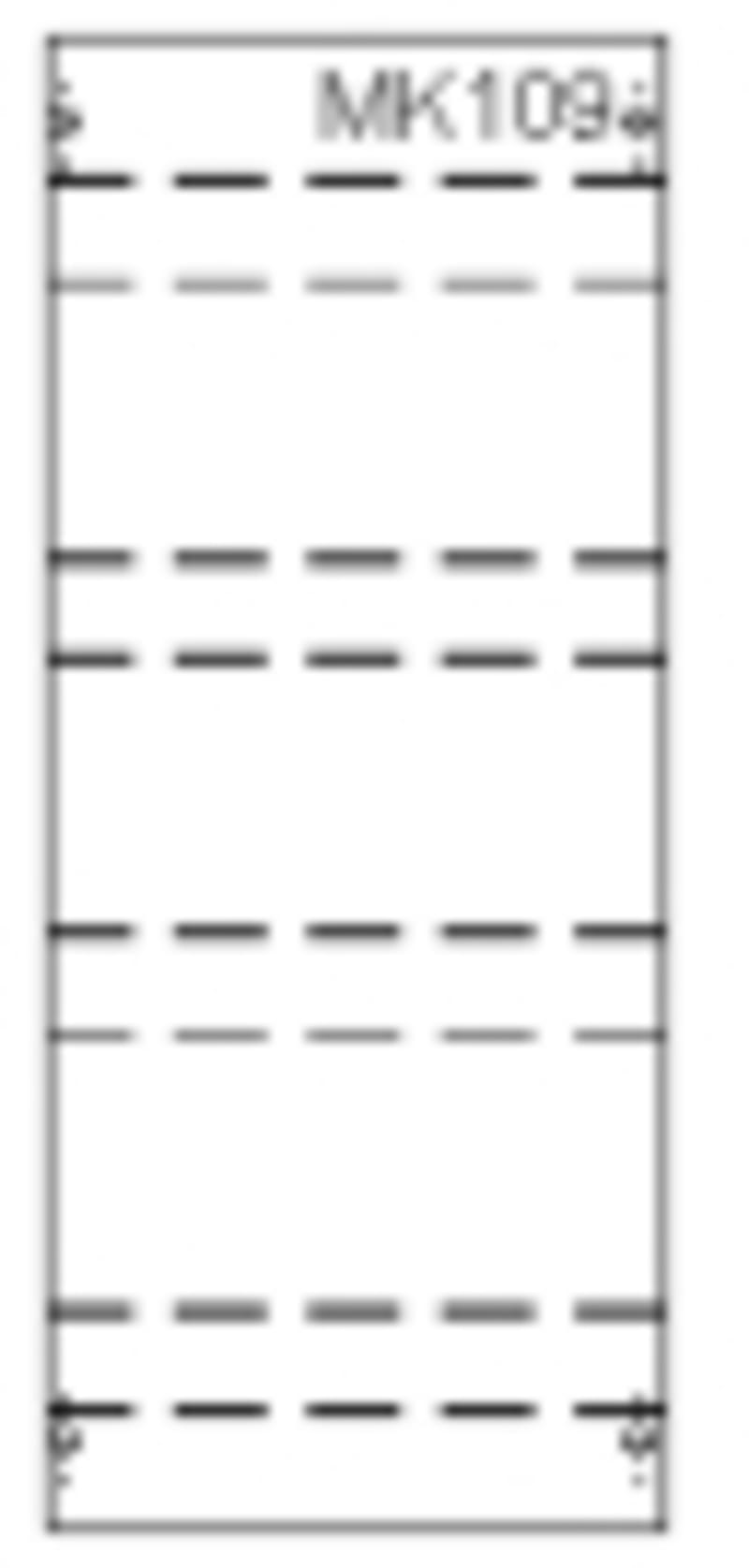

MBK109 Terminal block module
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041695R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for DIN rail for terminals horizontal, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, Stepless adjustable via mounting bracket, usable depth of 68 mm up to 145 mm, usable width of 188 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 200 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041695R9999
- EAN / GTIN
- 4011617416951
- Sales unit
- pcs
- Number of Panel Heights
- 4
- Number of Rows
- 4
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 0
- DIN Place Units
- 48
- Meter Boards
- 0
- Module Function
- DIN rail for terminals horizontal
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 850 A
- Color
- Light grey
- Number of Modules
- 48
- Protection Class
- Grounded or Insulated (Class III)
- Product Net Width
- 250 mm
- Product Net Height
- 600 mm
- Product Net Depth / Length
- 200 mm
- Section Width
- 1
- Built-In Depth ( t 2 )
- 200 mm
- EPLAN Data
- 9AAF623201_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112206M5601
- Mounting Type
- Stepless adjustable via mounting bracket
- ETIM 9
- EC001894 - Distributor assembly terminal blocks
- eClass
- V11.0 : 27400609
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 250 mm
- Height
- 600 mm
- Depth
- 200 mm
- Max. rated current
- 850 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617416951
- SAP 1000120135
- Code 81098966
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT5S 630 Moulded-Case Circuit Breaker — In=100 A, 4-Pole 1SDA100479R1
ABB
Nullederutkobler NT402 63
2CCS500900R0011
ABB
WALL-Mount Cabinet CA25V Media 550X800X160MM. IP44
2CPX052207R9999
ABB

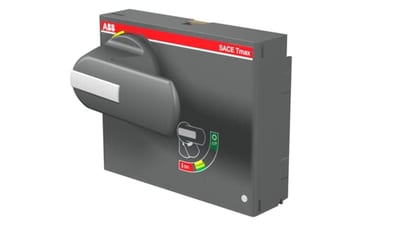

ABB 1SDA104826R1 Rotary Handle Operating Mechanism Standard Direct ON C.BREAKER Fixed-PLUG-IN XT5
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — TMA 40-400, In=40 A, 3-Pole
1SDA067598R1
ABB

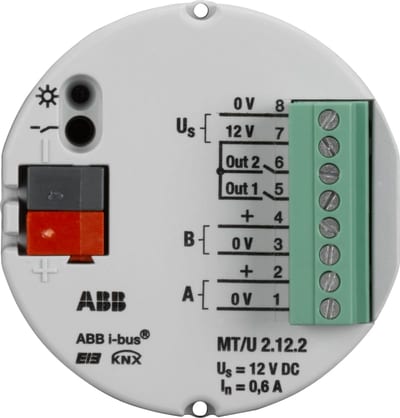

Safety Terminal 2-CHANNEL MT/U2.12.2
2CDG110111R0011
ABB

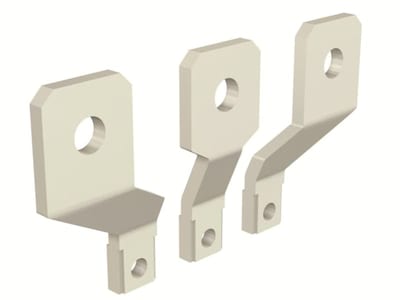

ABB 1SDA066899R1 Extended Front Terminals Distance 6PCS XT3
ABB

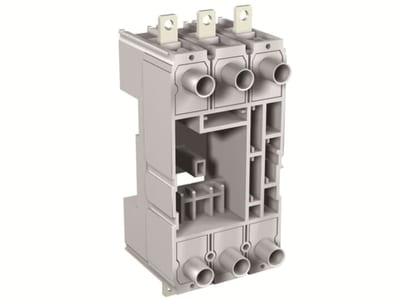

XT1 P FP 3P EF (1SDA068183R1)
