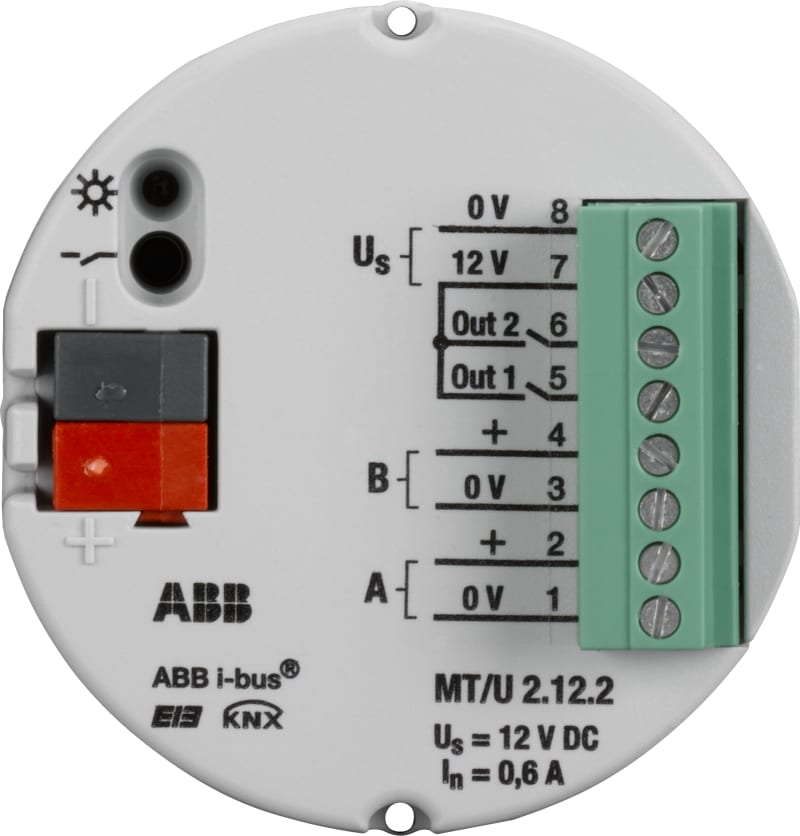

Safety Terminal 2-CHANNEL MT/U2.12.2
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110111R0011 — used for the monitored connection of sensors from security technology (e.g. magnetic contacts or glass-breakage sensors) to the ABB i-bus® KNX. The device has two inputs (”zones“) available and can be used as a stand-alone security system or in combination with the security module or intrusion alarm panel with KNX interface. 12 V DC SELV power supply required, e.g. NTU/S 12.2000.1. Typical applications are door and window surveillance, glas-breakage detection as well as area surveillance.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110111R0011
- EAN / GTIN
- 4016779711760
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941073P0002
- Wiring Diagram
- 2CDC072245F0009
- Mounting Type
- Flush Mounted
- Modular Components Included
- Complete Device
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC513042D0101; 2CDC513045D0101
- Number of Outputs
- 2
- Number of Inputs
- Analog (0 ... 10 V / 4 ... 20 mA) 2
- Number of Input Channels
- 2
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Sensor Type
- Signalling Group Terminal
- Manual Operation
- No
- Number of Batteries
- 0
- Auxiliary Voltage AC/DC
- 12 V DC
- Output Voltage (U out )
- 12 V DC
- Maximum Switching Current
- 0.6 A
- Power Loss
- 0.8 W
- Color
- light grey
- Product Net Width
- 52 mm
- Product Net Height
- 54.6 mm
- Product Net Depth / Length
- 19 mm
- Dimension Diagram
- 2CDC072246F0009
- EPLAN Data
- 9AKK108464A1070
- Declaration of Conformity - CE
- 2CDK513012D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0718
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001100 - Sensor control for bus system
- eClass
- V11.0 : 27143130
- UNSPSC
- 39121801
- Object Classification Code
- A
- Mounting method
- Flush-mounted
- Model
- Signalling group terminal
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Bus system LON
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779711760
- SAP 1000191714
- Code 81025432
Product Documentation
