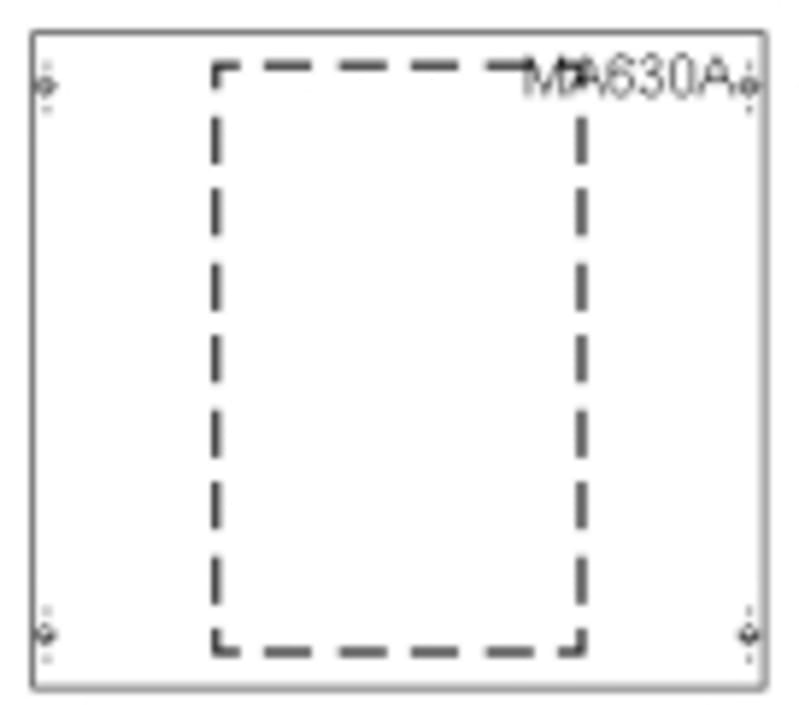

Mounting plate 630A (2CPX041808R9999)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041808R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Universal switch unequipped, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units,, usable width of 420 mm, unequipped for the installation of 1 Universal switch OT630E, for busbar system -pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 215 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041808R9999
- EAN / GTIN
- 4011617418085
- Sales unit
- pcs
- Rated current
- 630 A
- Rated Operational Current (I e )
- 630 A
- Number of Switches
- 0
- Number of Mountable Devices
- 1
- Number of Panel Heights
- 3
- Enclosure Module Equipment
- Excludes Devices
- Enclosure Mounting Frame
- WR or EDF
- Device
- OT630E
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 00
- DIN Place Units
- 72
- Meter Boards
- 0
- Module Function
- Universal switch unequipped
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 630 A
- Color
- Light grey
- Number of Modules
- 72
- Product Net Width
- 500 mm
- Product Net Height
- 450 mm
- Product Net Depth / Length
- 215 mm
- Section Width
- 2
- Built-In Depth ( t 2 )
- 215 mm
- EPLAN Data
- 9AAF623206_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112298M5601
- ETIM 9
- EC001897 - Distributor assembly switch
- eClass
- V11.0 : 27400611
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 500 mm
- Height
- 450 mm
- Depth
- 215 mm
- With cover
- Yes
- Plastic cover plate
- Yes
- With auxiliary terminal
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Rated operation current
- 630 A
- Suitable for no-voltage switch
- No
- Suitable for reverser
- No
- Equipped with switch disconnector
- No
- Equipped with power circuit-breaker
- No
- Equipped with no-voltage switch
- No
- Equipped with reverser
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617418085
- SAP 1000120227
- Code 81234656
