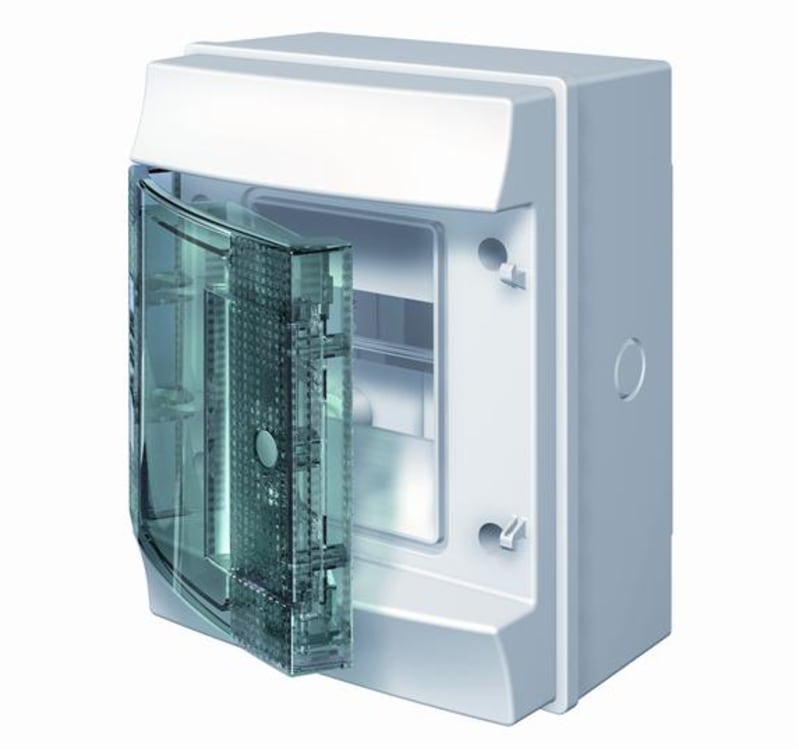

ABB Mistral 65 Transparent Door Distribution Enclosure 4M IP65
Pricing
Request a quote
We reply within 24 hours
Product Description
Surface-mounted plastic distribution enclosure with transparent hinged and locking door, 4 modular widths, IP65. Halogen-free housing with glow-wire test to 650 degrees C, colour grey RAL 7035. Dimensions 152 x 202 x 117 mm, single row on DIN rail, extendable. Suitable for damp and exposed environments where circuit status must remain visible.
Technical Specifications
- Manufacturer part number (MPN)
- Gruppetavle 4M m/ Blå-Grøn låge IP65
- EAN / GTIN
- 8000126097900
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Modular width
- 4 modules
- Mounting method
- Surface mounted
- Colour
- Grey
- Width
- 152 mm
- UV resistant
- No
- Height
- 202 mm
- Depth
- 117 mm
- RAL-number
- 7035
- With mounting plate
- No
- Built-in depth
- 68 mm
- Number of rows
- 1
- Built-in height
- 192 mm
- Type of covering
- Door
- Built-in width
- 94 mm
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 56 mm
- DIN-rail
- Yes
- Sealable
- No
- Housing material
- Plastic
- With N-disconnect slide
- No
- Width in number of modular spacings
- 4
- Type of door
- Single
- Degree of protection (IP)
- IP65
- Transparent cover/door
- Yes
- With lock
- Yes
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Bulgaria
Standards & Compliance
- Material
- Halogen-free thermoplastic, grey RAL 7035
- HS Code
- 8538.10
Cross References
- EAN 8000126097900
- SAP 1000599318
- Code 8210625
- ABB 1SL1200A00
- ABB type 65P04X12
Product Documentation
More from ABB
ABB
Water Detector SWM 4
ABB
ABB JMKL32.2HF Conduit bend, Halogen free (HF)Ø32 mm, 90°, 750N
ABB
ABB 1SL1208A00 MISTRAL65 transparent door 54 DIN modules GWT 650°C
ABB
Residual Current Circuit Breaker F204 A 63A/100MA
2CSF204101R2630
ABB
Installation Relay E297-16-10/24
ABB

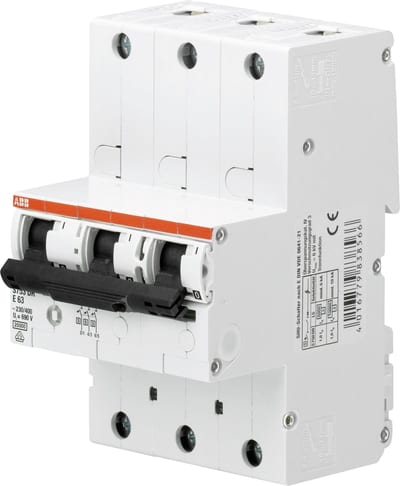

Main Circuit BREAKER S753DR-E63 SEL
