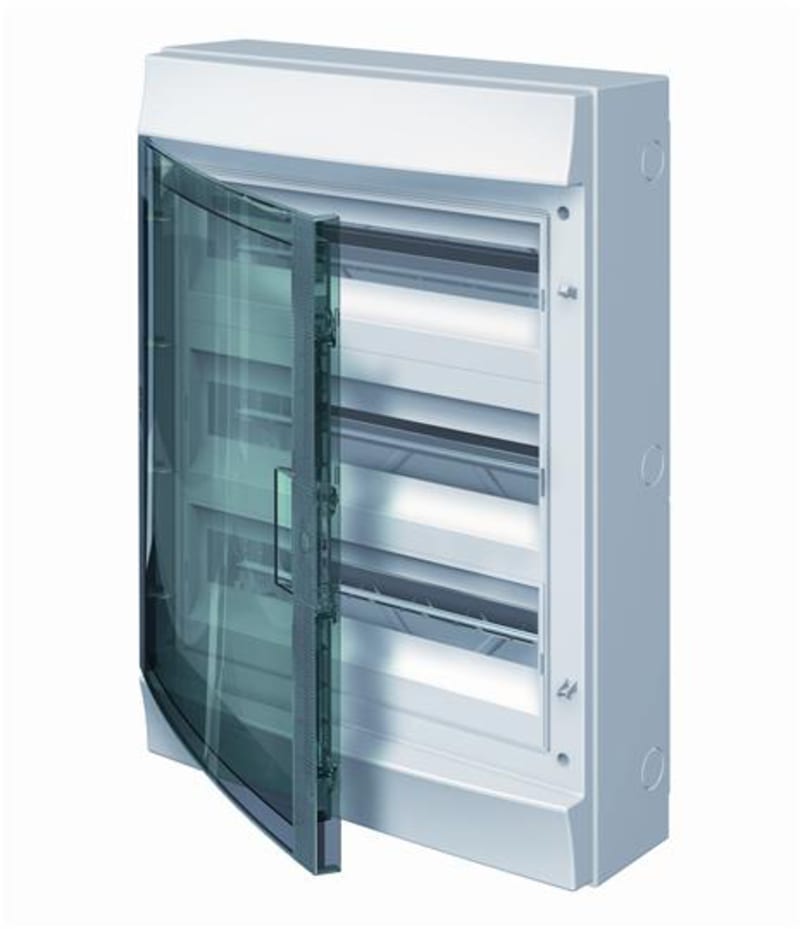

ABB 1SL1208A00 MISTRAL65 transparent door 54 DIN modules GWT 650°C
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SL1208A00 MISTRAL65 transparent door 54 DIN modules GWT 650°C is listed under Enclosures / Distribution Boards. Sales unit: pcs; Modular width: 54 modules; Closure Type: Snap Function; Configuration Type: assembled with device carrier; Cover Plate Type: Door; Door Type: Single.
Technical Specifications
- Manufacturer part number (MPN)
- 1SL1208A00
- EAN / GTIN
- 8000126098150
- Sales unit
- pcs
- Modular width
- 54 modules
- Number of Line Terminals
- 0
- Number of Rows
- 3
- Closure Type
- Snap Function
- Configuration Type
- assembled with device carrier
- Cover Plate Type
- Door
- Door Type
- Single
- Door Surface Finishing
- Transparent
- Accessories Available
- Yes
- DIN Place Units
- 54
- Terminal Type
- No Terminals
- Impact Resistance Rating
- IK09
- Power Loss
- Δt = 30K - Enclosures 63 W
- Enclosure Material
- thermoplastic
- Housing Material
- Plastic
- Door Material
- Plastic
- Transparent Door
- Yes
- Cover Style
- Closed
- RAL Number
- RAL 7035 - Light Grey
- Color
- Light grey
- Number of Modules
- 54
- Degree of Protection
- IP65
- Protection Class
- Isolated (Class II)
- Environmental Information
- 1SLC801013D0201
- Width in Number of Modular Spacings
- 18
- Product Net Width
- 430 mm
- Product Net Height
- 600 mm
- Product Net Depth / Length
- 155 mm
- Built-In Depth ( t 2 )
- 98 mm
- Building Information Modeling – BIM
- 9AKK107046A8397
- Declaration of Conformity - CE
- 9AKK108468A2427
- Instructions and Manuals
- 9AKK108468A8244
- Mounting Type
- Surface mounting
- ETIM 9
- EC000214 - Small distribution board
- eClass
- V11.0 : 27142409
- Object Classification Code
- U
- Mounting method
- Surface mounted
- Colour
- Grey
- Width
- 430 mm
- UV resistant
- No
- Height
- 600 mm
- Depth
- 155 mm
- With mounting plate
- No
- Built-in height
- 527 mm
- Type of covering
- Door
- Built-in width
- 363 mm
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 84 mm
- DIN-rail
- Yes
- Sealable
- No
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- Yes
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 8000126098150
- SAP 1000599733
- Code 8403729
