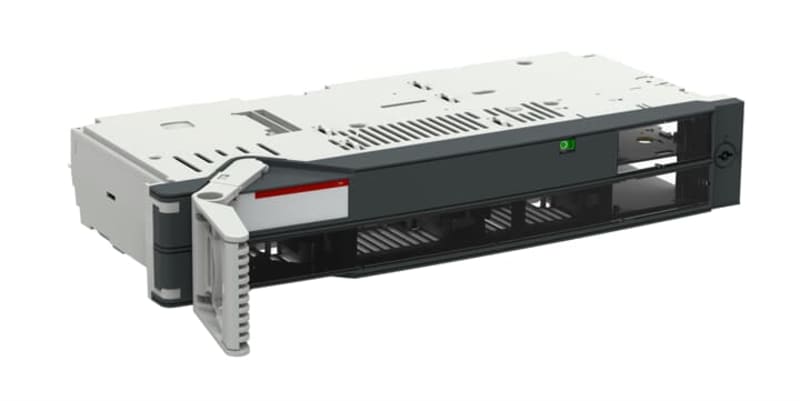

ABB 1SEP204481R1500 Three pole Switch Disconnector Fuse for 50mm busbar distance and 5mm busbar thickness
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SEP204481R1500 Three pole Switch Disconnector Fuse for 50mm busbar distance and 5mm busbar thickness is listed under Switchgear & Protection / Fuse Switch-Disconnectors. Sales unit: pcs; Country of Origin: Bulgaria; Product Sales Status: Active; Degree of Protection: acc. to IEC 60529 Front IP41; Product Net Width: 590 mm; Product Net Height: 100 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1SEP204481R1500
- EAN / GTIN
- 3800161650772
- Sales unit
- pcs
- Number of poles
- 3
- Country of Origin
- Bulgaria
- Lead Time
- 0 day
- Product Sales Status
- Active
- Environmental Product Declaration - EPD
- 9AKK108472A1660
- Degree of Protection
- acc. to IEC 60529 Front IP41
- Product Net Width
- 590 mm
- Product Net Height
- 100 mm
- Product Net Depth / Length
- 335 mm
- Busbar Dimensions
- Thickness 5 mm
- Distance Between Phases
- 50 mm
- Electronic Fuse Monitoring
- No
- Fuse Size
- NH1
- Fuse System
- DIN
- Operating Mode
- Manual
- Power Loss
- at Rated Load 70 W
- Rated Current (I n )
- 250 A
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 1 kV
- Rated Operational Current AC-22B (I e )
- (500 V) 250 A; (690 V) 250 A; (800 V) 250 A
- Rated Operational Current AC-23A (I e )
- (500 V) 250 A; (690 V) 250 A
- Rated Operational Voltage
- 690 V AC
- Rated Voltage (U r )
- 690 V AC
- Standards
- IEC60947-3
- Terminal Type
- Bolt
- Utilization Category
- Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A); Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
- Declaration of Conformity - CE
- 1SCC311166D2701
- ETIM 9
- EC001040 - Fuse switch disconnector
- eClass
- V11.1 : 27371401
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
- E-Number (Norway)
- 1687835
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3800161650772
- SAP 1200924002
- Code 84210926
Product Documentation
