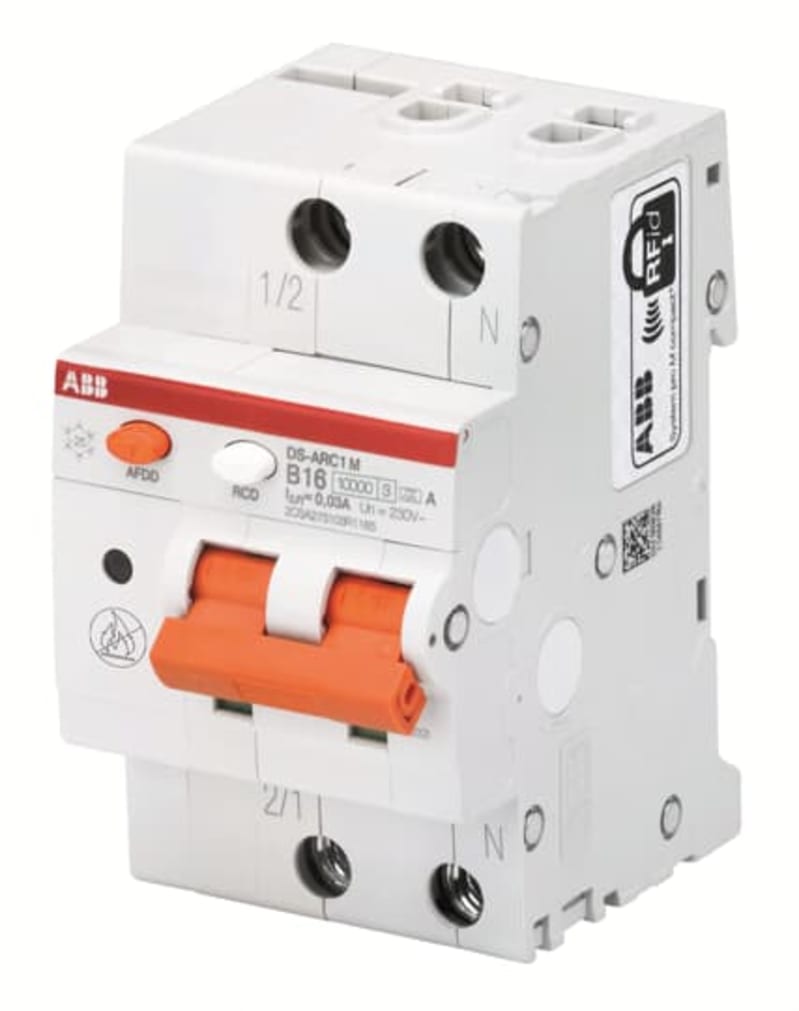

JF.LYSB.AUT.DS-ARC1 M C13 A30

ABB 2CSA275103R1134 — DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for the protection against earth arc faults, parallel arc faults, series arc faults, overvoltage, short-circuit currents, overload, earth fault currents.

Manufacturer part number (MPN)

2CSA275103R1134

EAN / GTIN

8012542748113

HS code

8536.90

Sales unit

pcs

Carbon Footprint (Full Lifecycle)

20.8436 kg CO₂ eq

Environmental Product Declaration - EPD

9AKK108470A1707

Type of Residual Current

Type A

Test Voltage (Out)

170 … 264 V

Dielectric Test Voltage

2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (I cu )

10 kA

Rated Residual Breaking Capacity (IΔm)

6 kA

Rated Service Short-Circuit Breaking Capacity (I cs )

7.5 kA

Power Supply Connection

Arbitrary

Contact Position Indication

Red ON / Green OFF

Energy Limiting Class

3

Electrical Endurance

10000 cycle

Mechanical Endurance

20000 cycle

Number of Protected Poles

1

Number of Poles

1P+N

Number of Modular Spacings per DIN Rail

3

Fault Indication

Blue Flag on Toggle

Operating Characteristic

Instantaneous

Position of Neutral Terminals

Right

Tightening Torque

2.8 N·m

Accessory Type

Auxiliary contact; Auxiliary/Signal contact; Shunt trip; Undervoltage release; Overvoltage release; Bottom fitting auxiliary contact

Housing Type

Insulation group I, RAL 7035

Screw Terminal Type

Failsafe Bi-directional Cylinder-lift Terminal

Accessories Available

Yes

Mounting Position of Accessories

Right

Number of Batteries

0

Connecting Capacity

Busbar 10 mm²; Rigid 1…25 mm²; Flexible 1…16 mm²

Wire Stripping Length

12 mm

Terminal Type

Screw Terminals

Actuator Type

Toggle

Tripping Characteristic

C

Rated Operational Voltage

230...240 V AC

Rated Insulation Voltage (U i )

500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Input Voltage Type

AC

Rated Current (I n )

13 A

Rated Residual Current

30 mA

Rated Short-Circuit Capacity

10 kA

Rated Frequency (f)

50 … 60 Hz

Power Loss

Total 2.0 W

Overvoltage Category

III

Number of Modules

3

Ambient Air Temperature

Operation -25 ... 55 °C; Storage -40 ... 70 °C

Reference Ambient Air Temperature

30 °C

Degree of Protection

Terminals IP20; Housing IP40

Pollution Degree

2

Environmental Conditions

28 cycles; with 55 °C / 90-96 %; and 25 °C / 95-100 %

Resistance to Vibrations

20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27

30g 2 shocks 13 ms

Width in Number of Modular Spacings

3

Product Net Width

52.5 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Built-In Depth ( t 2 )

69 mm

Dimension Diagram

9AKK107046A6174

EPLAN Data

9AAC190691_EPLAN

Declaration of Conformity - CE

9AKK107046A6529

IMQ Certificate

9AKK107046A6177

VDE Certificate

9AKK107046A6968

Instructions and Manuals

9AKK107046A6173; 9AKK106930A8986

Mounting Type

DIN-Rail

Mounting Position

Any

ETIM 9

EC002695 - Earth leakage circuit breaker with auxiliary device

eClass

V11.0 : 27142213

Object Classification Code

F

Standards

IEC/EN 62606; IEC/EN 61009-1; IEC/EN 61009-2-1

HS Code

8536.90

• EAN 8012542748113
• SAP 1200145159
• Code 82165316
