Residual Current Circuit Breaker F202 A 63A/30MA 16-2A/3HZ
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSF202196R1630 F202, 2 pole, Type A, 63A, 30mA, 16-2/3Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF202196R1630
- EAN / GTIN
- 8012542734536
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 63 A
- Setting range
- 16-2 A
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Number of poles
- 2
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Selective protection
- No
- Short-circuit breaking capacity (Icw)
- 1 kA
- Surge current capacity
- 0.25 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 25 mm²
- Connectable conductor cross section multi-wired
- 0–25 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Additional equipment possible
- Yes
- Device width
- 35 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542734536
- SAP 1200641004
- Code 83053343
Product Documentation
More from ABB
ABB
MOD XT1-XT3 220...250 V ac/dc
MOD XT1-XT3 220...250V ac/dc
ABB
Tenton 3/6V Black MATT SBC/U6.0.1-885
ABB
FLA. x THE COMP.DOOR x RHD XT7 F/W
1SDA105143R1
ABB
Cover frame TZP109 1350X250X30MM
2CPX010630R9999
ABB
ABB VFI online double conversion,400V,18000W,RS232,USB,COM slot,includes battery links, trays and shelves,up to 2X48X7/8/9 Ah blocks 4NWP103584B2000
ABB
ARIA 75 Mounting PLATE, Steel
4TBA831082C0100
ABB
ABB 2CDD283101R0032 SD203/32 - Switch Disconnector - 3P, 32A
ABB

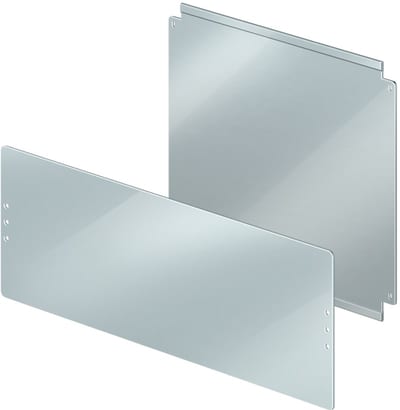

ABB 1SL1921A00 Opaque door 8M MISTRAL65;Metal base plate 2X12M MISTRAL65
