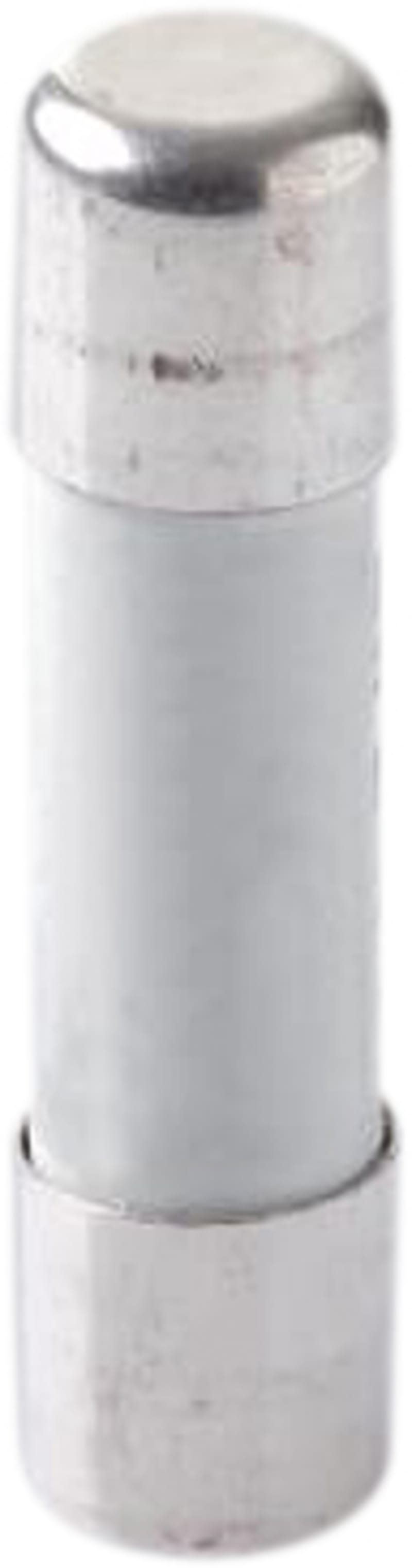

ABB 2CSM277543R1801 E 9F10 GG16 is a 10,3X38 mm cylindrical fuse for circuit protection
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CSM277543R1801 E 9F10 GG16 is a 10,3X38 mm cylindrical fuse for circuit protection is listed under Electrical Components / Fuses. Sales unit: pcs; Package quantity: 10 pcs; Fuse Type: gG; Construction Material: Ceramic; Fuse Size: 10x38; Contact Material: copper silver plated (Cu/Ag).
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM277543R1801
- EAN / GTIN
- 8012542775430
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Fuse Type
- gG
- Release Type
- gG: Used in general protection of cables and lines in installation and industrial applications
- Construction Material
- Ceramic
- Fuse Size
- 10x38
- Contact Material
- copper silver plated (Cu/Ag)
- Rated Voltage (U r )
- 500 V
- Rated Current (I n )
- 16 A
- Maximum Breaking Capacity
- 120 kA
- Power Loss
- Total 1.9 W; at Rated Operating Conditions per Pole 1.9 W
- I²t Characteristic
- 9AKK108466A9086
- Environmental Information
- See RoHS Information
- Product Net Width
- 1 mm
- Product Net Height
- 4 mm
- Product Net Depth / Length
- 1 mm
- Dimension Diagram
- 9AKK108466A8532
- Cut-off Current Characteristic
- 9AKK108466A9066
- Declaration of Conformity - CE
- 9AKK106713A5625
- ETIM 9
- EC002704 - Cylindrical fuse
- UNSPSC
- 39121606
- eClass
- V11.0 : 27142002
- Object Classification Code
- F
- Standards
- IEC 60269-2
- Size
- 10x38 mm
- Voltage type
- AC
- Utilization category according to IEC 60269
- gL/gG (cable protection/equipment protection)
- Nominal current
- 16 A
- With striker
- No
- Breaking capacity
- 120 kA
- Power loss at rated current
- 1.9 W
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 8012542775430
- SAP 1200640856
- Code 83054178
Product Documentation
More from ABB
ABB

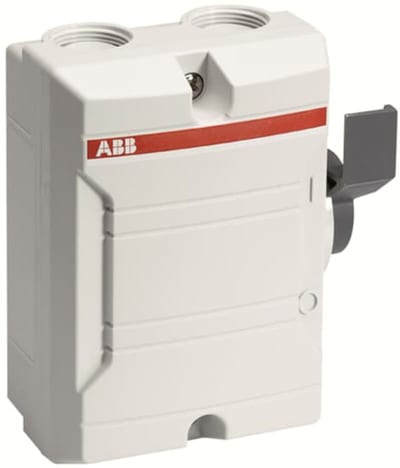

Enclosed Switch-disconnector
BW325WTPN
ABB

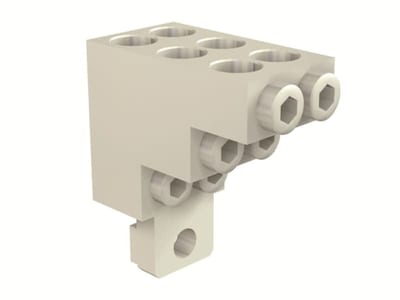

KIT MC CuAl 6X2.5...35MM2 XT3 6 Pcs
1SDA066931R1
ABB

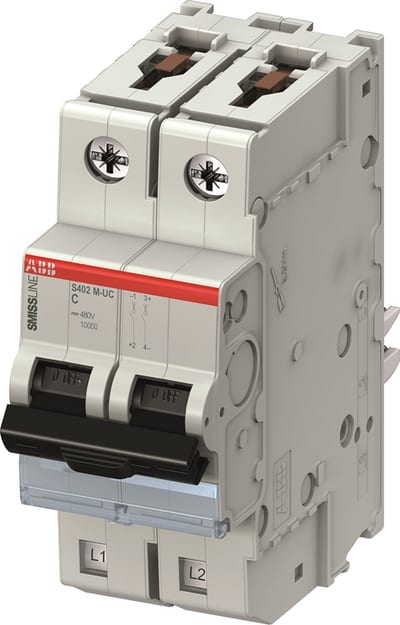

ABB S402-C63 Miniature Circuit Breaker — 2P, Type C, 63 A, 10 kA 2CCS572001R1634
ABB

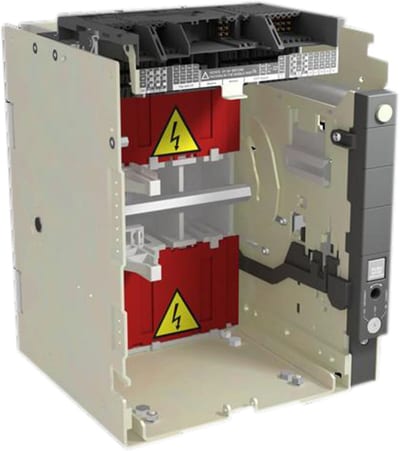

XT7-XT7M W FP 3P EF IEC/UL
1SDA104702R1
ABB

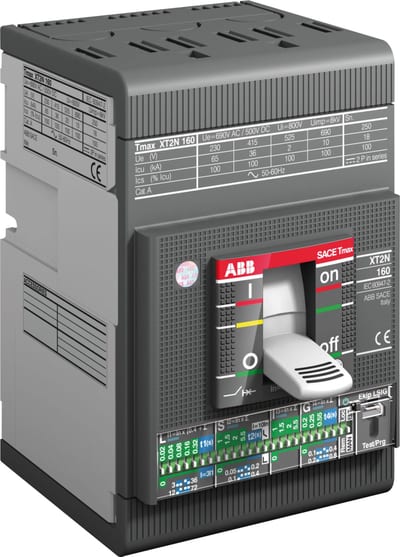

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMA R160, In=160 A, 4-Pole
1SDA067043R1
ABB
ABB SACE Tmax XT4N 160 Moulded-Case Circuit Breaker — TMA 50-500, In=50 A, 3-Pole
1SDA068084R1
ABB

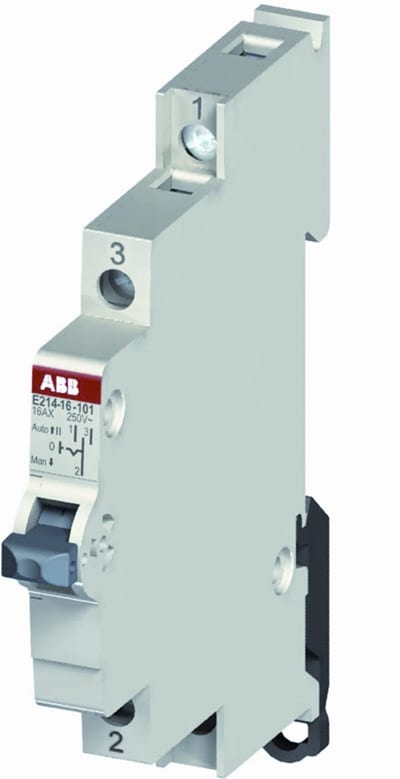

Switch FOR DIN-RAIL E214-25-101
2CCA703026R0001
ABB

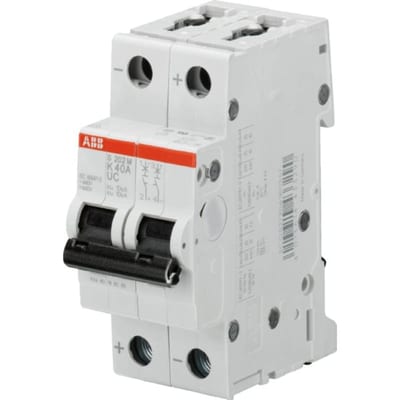

ABB S202M-Z25 Miniature Circuit Breaker — 2P, Type Z, 25 A, 10 kA
