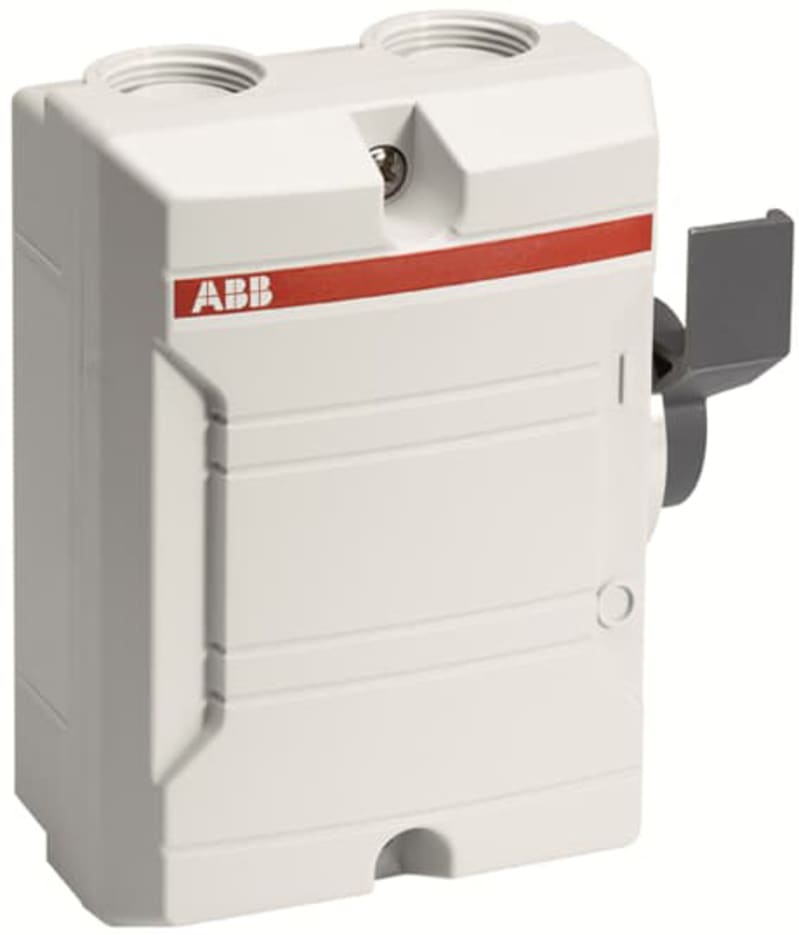

Enclosed Switch-disconnector

ABB BW325WTPN — Encl. Switch Disconnector, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.

Manufacturer part number (MPN)

BW325WTPN

EAN / GTIN

7392696424028

Sales unit

pcs

Degree of Protection

acc. to IEC 60529 IP65

Product Net Width

111 mm

Product Net Height

130 mm

Product Net Depth / Length

60 mm

Cable Cross-Section

0.75 ... 10 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xM25 / 2xM25

Color

RAL9003

Connecting Capacity Main Circuit

Screw Clamp 0.75 ... 10 mm²; Screw Clamp / PE Terminal 1pc 0.75 ... 10 mm²

Conventional Free-air Thermal Current (I th )

32 A

Conventional Thermal Current (I the )

Fully Enclosed 25 A

Enclosure Material

Plastic

Handle Color

Grey

Handle Type

Side-Operated

Impact Resistance Rating

Housing IK08

Maximum Mounted Auxiliary Contacts

1 NO, 0 NC

Mounted Auxiliary Contacts

0 NO, 0 NC

Neutral Type

Fixed Neutral

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

0

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 0.6 W; Total 1.8 W

Rated Impulse Withstand Voltage (U imp )

8 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 690 V

Rated Operational Current AC-21A (I e )

(400 V) 25 A; (500 V) 25 A; (690 V) 25 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 25 A; (500 V) 25 A; (690 V) 16 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 16 A; (500 V) 16 A; (690 V) 10 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 7.5 kW; (500 V) 7.5 kW; (690 V) 7.5 kW

Rated Operational Voltage

Main Circuit 690 V

Recommended Screw Driver

Main Circuit Pozidriv 2

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 1.2 N·m

Wire Stripping Length

7 mm

Declaration of Conformity - CE

1SCC340062D2702

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Norway)

1424400

HS Code

8536.30

• EAN 7392696424028
• SAP 1000225031
• Code 8939191
