ABB S201M-D1 Miniature Circuit Breaker — 1P, Type D, 1 A, 10 kA 2CDS271001R0011
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S201M-D1 miniature circuit breaker (MCB) from the System pro M compact range. 1P, rated current In = 1 A, Type D tripping characteristic. Rated breaking capacity Icn = 10 kA (IEC 60898-1); rated operational voltage Ue 230/400 V AC. DIN-rail modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC 60898-1 and IEC 60947-2. ABB order code 2CDS271001R0011, EAN 4016779599313, ABB/SAP material 1000672108, catalogue code 8272816.
Technical Specifications
- Manufacturer
- ABB
- Product family
- System pro M compact
- Type designation
- S201M-D1
- Manufacturer part number (MPN)
- 2CDS271001R0011
- EAN / GTIN
- 4016779599313
- ABB / SAP material no.
- 1000672108
- Poles
- 1P
- Tripping characteristic
- Type D
- Rated current In
- 1 A
- Rated breaking capacity Icn
- 10 kA
- Rated operational voltage Ue
- 230/400 V AC
- Standard
- IEC 60898-1, IEC 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60898-1
- HS Code
- 8536.20
Cross References
- EAN 4016779599313
- SAP 1000672108
- Code 8272816
Product Documentation
More from ABB
ABB
ABB S204M-K1 Miniature Circuit Breaker — 4P, Type K, 1 A, 10 kA 2CDS274061R0257
ABB
ABB SACE Tmax XT2L 160 Moulded-Case Circuit Breaker — Ekip In, In=160 A, 4-Pole
1SDA067958R1
ABB
ABB SACE Tmax XT7H 800 Moulded-Case Circuit Breaker — Ekip G Dip LS/In, In=800 A, 3-Pole
1SDA100934R1
ABB

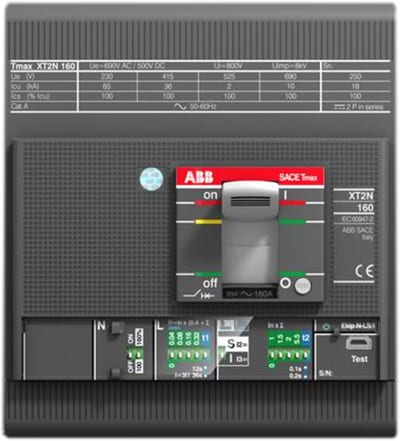

ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — Ekip In, In=100 A, 4-Pole
1SDA067899R1
ABB

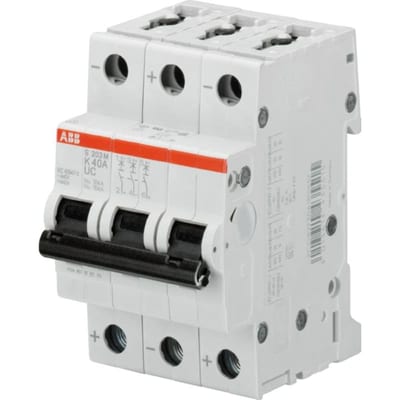

ABB S203M-Z40 Miniature Circuit Breaker — 3P, Type Z, 40 A, 10 kA
2CDS273061R0558
ABB

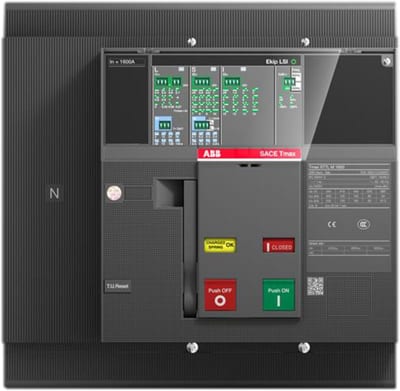

ABB SACE Tmax XT7S 1600 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=1600 A, 4-Pole 1SDA101661R1
ABB

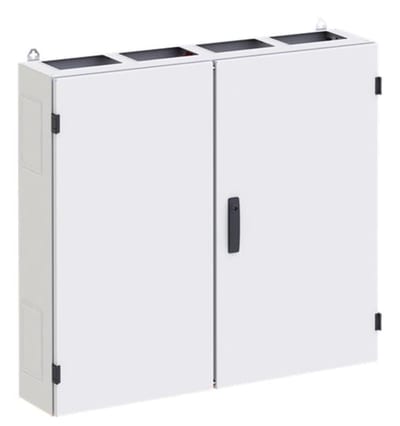

WALL-Mount Cabinet TG504G 650X1300X225MM IP55
2CPX010004R9999
ABB

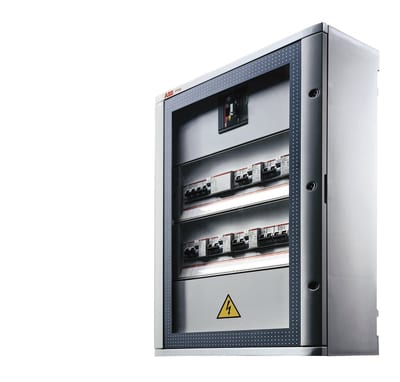

GEMINI Transp. dr size. 2
