ABB
Residual Current Circuit Breaker F202A 63A/500MA 16-2A/3HZ
Part number2CSF202196R4630EAN / GTIN8012542734437HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSF202196R4630 F202, 2 pole, Type A, 63A, 500mA, 16-2/3Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF202196R4630
- EAN / GTIN
- 8012542734437
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 63 A
- Setting range
- 16-2 A
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Number of poles
- 2
- Rated fault current
- 0.5 A
- Leakage current type
- A
- Selective protection
- No
- Short-circuit breaking capacity (Icw)
- 1 kA
- Surge current capacity
- 0.25 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 25 mm²
- Connectable conductor cross section multi-wired
- 0–25 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Additional equipment possible
- Yes
- Device width
- 35 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542734437
- SAP 1200641003
- Code 83053358
Product Documentation
Document preview: ABB 2CSF202196R4630 — OEM Product Page
More from ABB
ABB
HK400 10-L SA Auxiliary contact, 1NO
2CCF201212R0001
ABB
Small Panel (Panel Display)
ABB
Cubevision Module 10561
4544109
ABB
Terminal blocks for SMK supply
1SAJ929610R0001
ABB

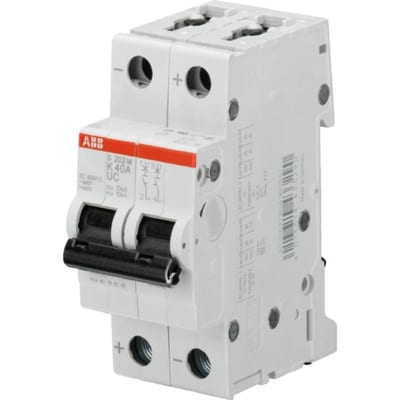

ABB S202M-K25 Miniature Circuit Breaker — 2P, Type K, 25 A, 10 kA
2CDS272061R0517
ABB
ABB SACE Tmax XT4H 160 Moulded-Case Circuit Breaker — TMA 63-630, In=63 A, 4-Pole
1SDA068352R1
ABB

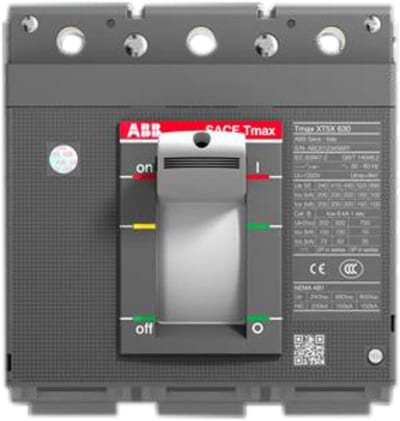

ABB SACE Tmax XT5H 630 Moulded-Case Switch-Disconnector — 3-Pole
1SDA100559R1
ABB

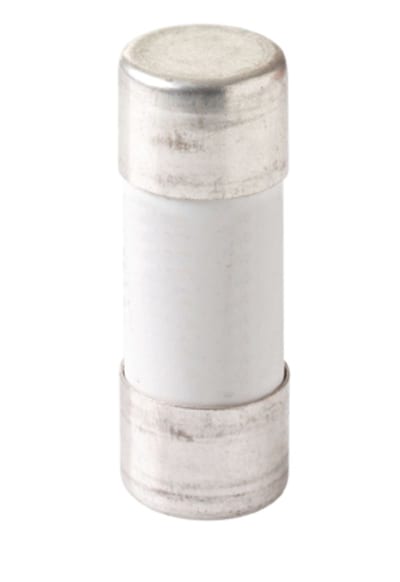

Glass Fuse E 9F22 GG8
