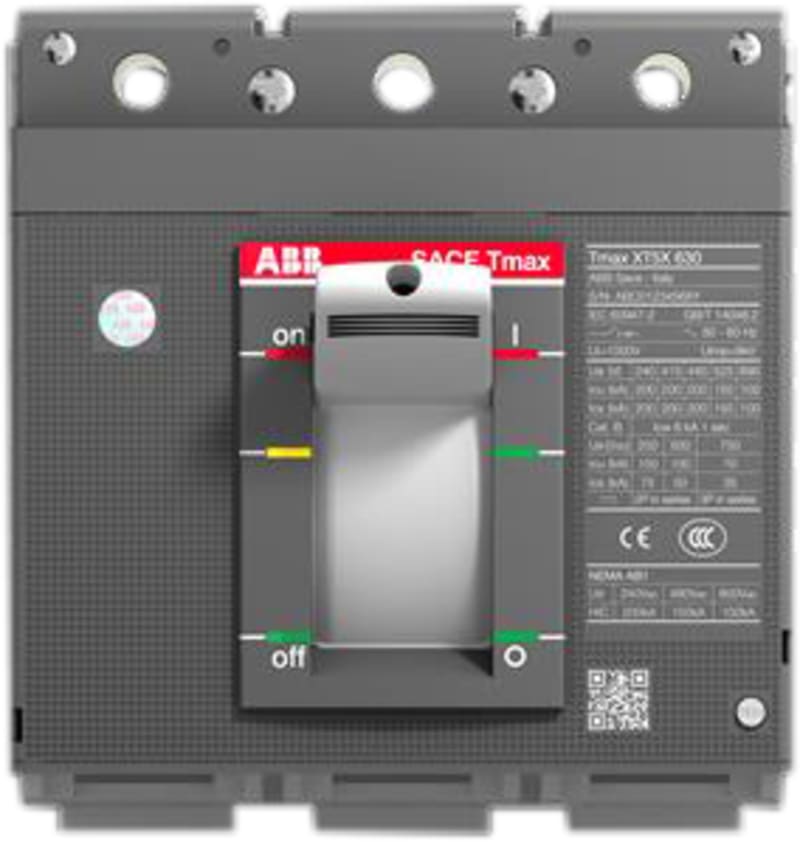

ABB SACE Tmax XT5H 630 Moulded-Case Switch-Disconnector — 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5H 630 A frame moulded-case switch-disconnector (non-automatic isolating and switching duty, supplied without an overcurrent trip unit). 3-pole, F/F (front, fixed) terminals. Rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100559R1, EAN 8056221006354, ABB/SAP material 1200638222, catalogue code 83055703.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case switch-disconnector, IEC 60947-2)
- Configuration
- XT5H 630 SWITCH UNIT 3p FF
- ABB order code (MPN)
- 1SDA100559R1
- EAN / GTIN
- 8056221006354
- ABB / SAP material no.
- 1200638222
- Frame
- XT5 (630 A frame)
- Trip unit
- none (switch-disconnector)
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.50
Cross References
- EAN 8056221006354
- SAP 1200638222
- Code 83055703
Product Documentation
More from ABB
ABB
Glass Fuse E 9F22 GG8
2CSM258103R1801
ABB
ABB 2CKA006330A0091 Surface-mounted housing for mounting 12GANG control element, RT with 10GANG control element
ABB
ABB 1SDA105125R1 Plate XT4 W/P FOR Mechanical Interlock REAR Horizontal/Vertical Between 2 C.BREAKERS XT5
ABB
ZLS913 N Terminal 35 mm² BLUE
2CCA183470R0001
ABB
ABB SACE Tmax XT4L 160 Moulded-Case Circuit Breaker — MA 52 Im=260, In=52 A, 3-Pole
1SDA068455R1
ABB
Impressivo 4-H KAP without BOX 40/100 Anthracite
2TKA000411G1
ABB
ABB 1SDA066644R1 Plate FOR Mechanical Interlock FOR PLUG-IN Circuit-Breaker XT3
ABB
TMD 32-320 XT2 3P (1SDA067229R1)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SDA100559R1?
- 1SDA100559R1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SDA100559R1.
- What is the HS code for 1SDA100559R1?
- The customs tariff (HS) code for 1SDA100559R1 is 8536.50.
- Who manufactures 1SDA100559R1?
- 1SDA100559R1 is a ABB product in the Electrical Components range.
- Is a datasheet available for 1SDA100559R1?
- Yes — the 1SDA100559R1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SDA100559R1?
- The minimum order quantity is 1.
- Is 1SDA100559R1 available?
- Yes — 1SDA100559R1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
