Residual Current Circuit Breaker F204 A S-125A/500MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSF204201R4950 — The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF204201R4950
- EAN / GTIN
- 8012542968405
- HS code
- 8536.90
- Sales unit
- pcs
- Type of Residual Current
- Type A
- Test Voltage (Out)
- 100-250 V
- Maximum Surge Current
- 5 kA
- Leakage Current Type
- A
- Power Supply Connection
- Arbitrary
- Electrical Endurance
- 2000 cycle
- Mechanical Endurance
- 5000 cycle
- Number of Poles
- 4P
- Number of Modular Spacings per DIN Rail
- 4
- Operating Characteristic
- Selective
- Position of Neutral Terminals
- Right
- Tightening Torque
- 2.8 N·m
- Accessory Type
- Signal/Auxiliary contact; Motor operating device
- Screw Terminal Type
- Cage Terminal; Failsafe Biconnect Fork Top/Bottom; Failsafe Biconnect Fork Bottom
- Options Provided
- None
- Accessories Available
- Yes
- Connecting Capacity
- Busbar 10 mm²; Rigid 35 ... 35 mm²; Flexible 35 ... 35 mm²
- Rated Cross-Section
- 4 - Multi-Wired 0...25 mm²; 1 - Solid-Core 35...35 mm²
- Wire Stripping Length
- 12 mm
- Terminal Type
- Screw Terminals
- Rated Voltage (U r )
- 230/400 V
- Rated Operational Voltage
- 230 … 400 V AC
- Rated Insulation Voltage (U i )
- 500 V
- Rated Impulse Withstand Voltage (U imp )
- 4 kV
- Input Voltage Type
- AC
- Rated Current (I n )
- 125 A
- Rated Residual Current
- 500 mA
- Rated Conditional Short-Circuit Current (I nc )
- 10 kA
- Frequency ( f )
- 50/60 Hz
- Rated Frequency (f)
- 50 Hz
- Power Loss
- at Rated Operating Conditions per Pole 11.2 W; Total 33.6 W
- RAL Number
- RAL 7035 - Light Grey
- Number of Modules
- 4
- Ambient Air Temperature
- Operation -25 ... 40 °C; Storage -40 ... 70 °C
- Degree of Protection
- IP2X
- Pollution Degree
- 2
- Resistance to Vibrations
- 20 Cycles with Load 0.8 In: 1g or 0.1mm 5 … 150 … 5 Hz
- Environmental Information
- Refer to RoHS
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 72 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 69.5 mm
- Built-In Depth ( t 2 )
- 69 mm
- EPLAN Data
- 9AAC202084_EPLAN
- Declaration of Conformity - CE
- 9AKK106713A5606
- Instructions and Manuals
- 9AKK107991A6132; 9AKK107991A0963
- Mounting Type
- DIN-Rail
- Mounting Position
- Any
- ETIM 9
- EC000003 - Residual current circuit breaker (RCCB)
- UNSPSC
- 39121601
- eClass
- V11.0 : 27142201
- IDEA Granular Category Code (IGCC)
- 4875 >> Residual current circuit breaker (RCCB)
- Object Classification Code
- F
- Standards
- IEC/EN 61008
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542968405
- SAP 1200282138
- Code 82250816
Product Documentation
More from ABB
ABB
METER 3F A44 213-100
A44 213-100 Bronze M-bus
ABB
ADP MOUNTING Fast. x PF XT3 3P
1SDA066309R1
ABB
ABB VFI online double conversion,400V,9000W,RS232,USB,COM slot,includes 2X32X8AH batteries mounted linked and tested 4NWP103584B1030
ABB
WALL-Mount Cabinet TG207G 1100X550X225MM IP55
2CPX010016R9999
ABB

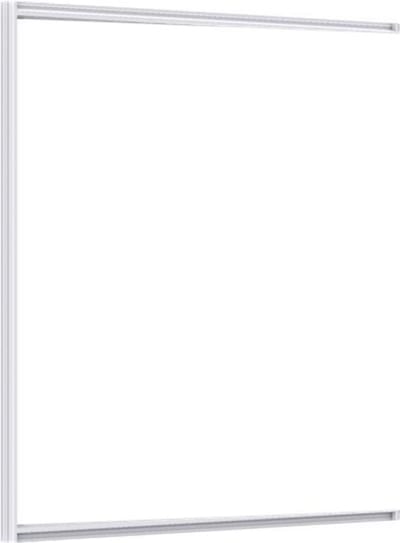

Cover frame TZP112 1800X250X30MM
2CPX010631R9999
ABB

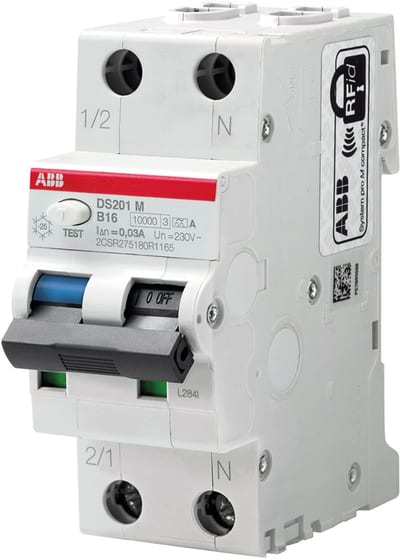

Residual Current Circuit Breaker WITH Overcurrent DS201 M B40 A30MA
2CSR275180R1405
ABB

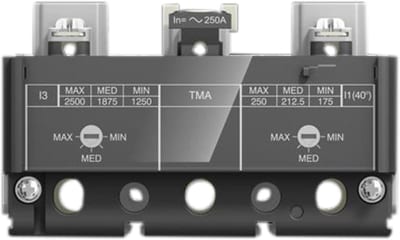

ABB 1SDA067497R1 Magnetic Release Three-POLE IN AC-DC MA Iu 200 I3=1000...2000 A XT4
ABB

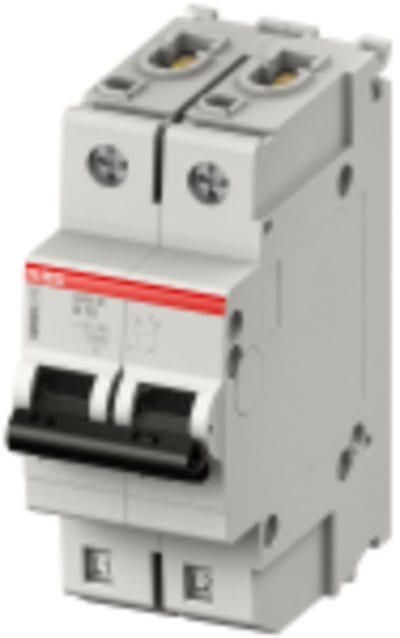

ABB S402-B32 Miniature Circuit Breaker — 2P, Type B, 32 A, 10 kA
