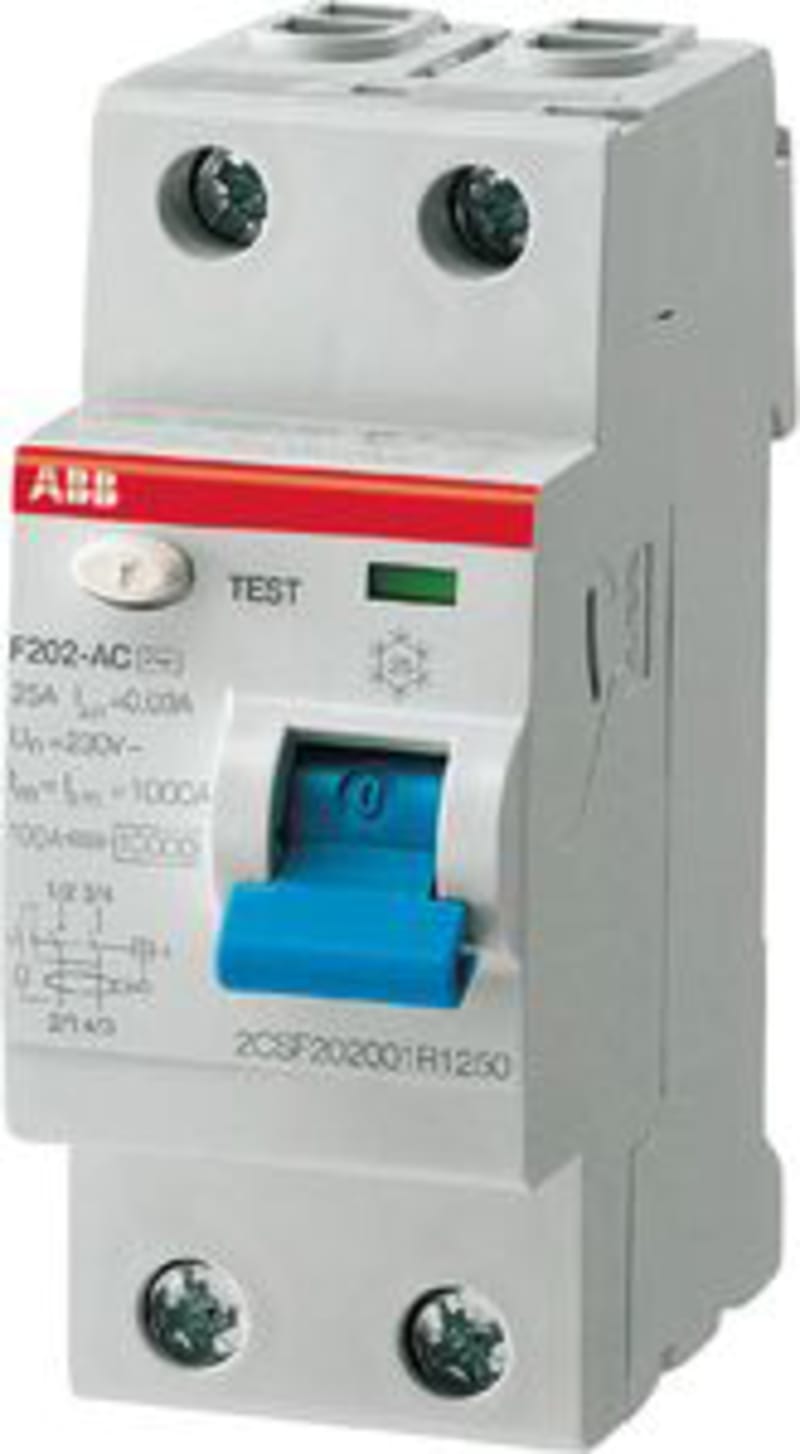

Residual Current Circuit Breaker F202 A 100A/30MA AP-R
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSF202401R1900 F202, 2 pole, Type A AP-R (korttidsforsinket), 100A, 30mA.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF202401R1900
- EAN / GTIN
- 8012542916505
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 100 A
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Number of poles
- 2
- Rated fault current
- 0.03 A
- Selective protection
- No
- Short-circuit breaking capacity (Icw)
- 1 kA
- Surge current capacity
- 3 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Short-time delayed tripping
- Yes
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 35 mm²
- Connectable conductor cross section multi-wired
- 0–35 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Additional equipment possible
- Yes
- Device width
- 35 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542916505
- SAP 1000250409
- Code 81125405
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT5N 400 Moulded-Case Circuit Breaker — TMA 320-3200, In=320 A, 3-Pole
1SDA100344R1
ABB
ABB 41386PB OS accessories, pre-installation box, 6 modules,size 2/3
ABB
TMA 125-1250 XT4 3P (1SDA067386R1)
ABB

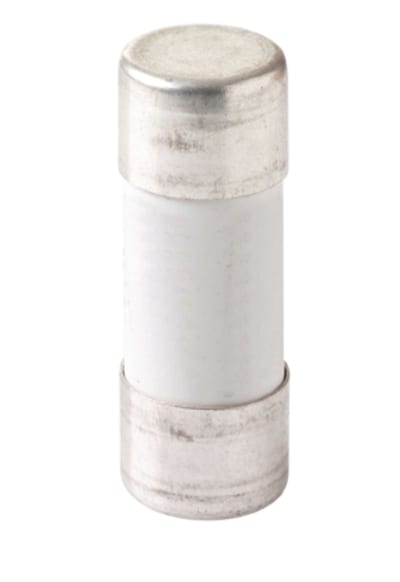

ABB 2CSM258213R1801 E 9F22 GG63 is a 22X58 mm cylindrical fuse for circuits protection
ABB

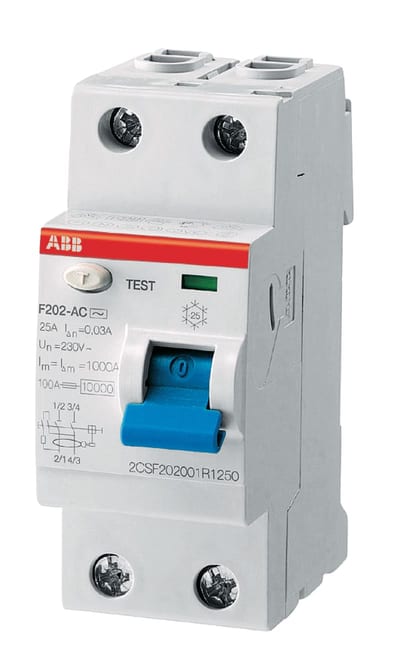

Residual Current Circuit Breaker F202A 63A/500MA 16-2A/3HZ
2CSF202196R4630
ABB
HK400 10-L SA Auxiliary contact, 1NO
2CCF201212R0001
ABB

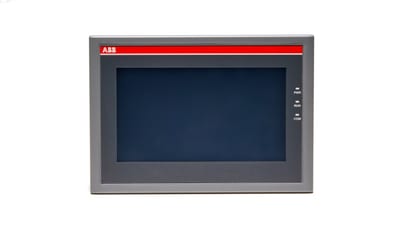

Small Panel (Panel Display)
ABB

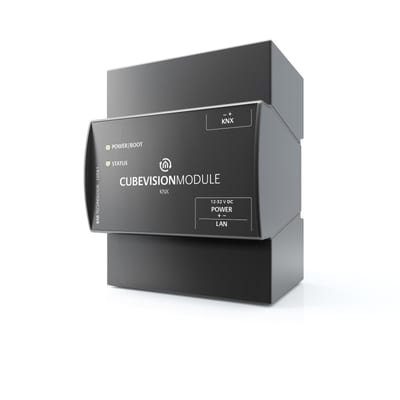

Cubevision Module 10561
