Product Description

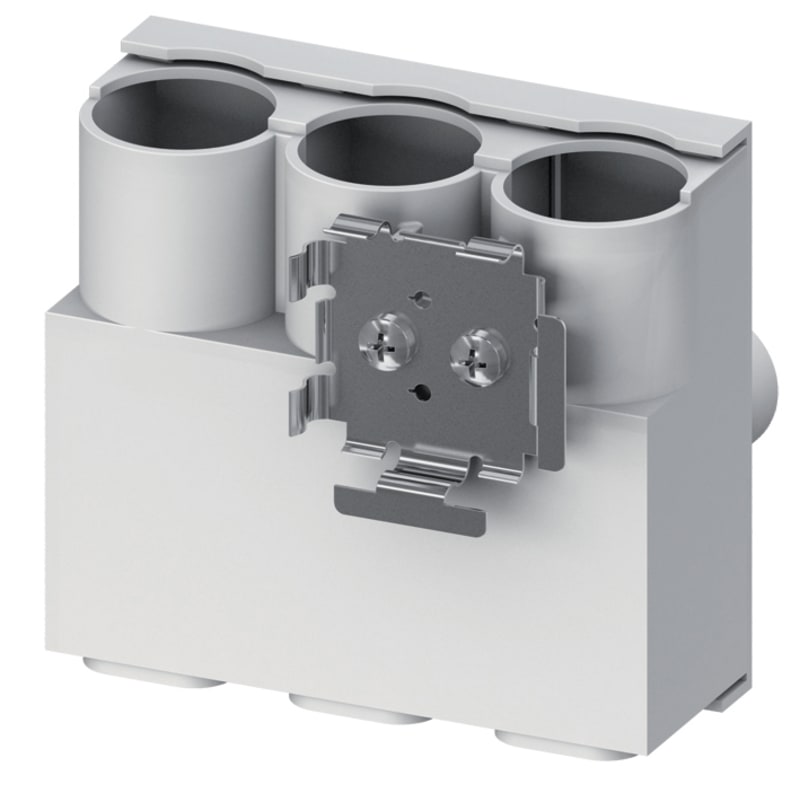

ABB 2CCS800900R0101 — The S803-BBPC120 is a 3-pole incombing block for the busbar S803-BB250. The terminal cross section is 120mm2.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS800900R0101
- EAN / GTIN
- 7612271208301
- Sales unit
- pcs
- Suitable For
- S800-BB
- Rated Operational Current (I e )
- 250 A
- Model Number
- Flat
- Tightening Torque
- 3.5 N·m
- Recommended Screw Driver
- Pozidriv 2
- Terminal Type
- Screw Terminals
- Rated Operational Voltage
- 400/690 V AC
- Rated Insulation Voltage (U i )
- 690 V AC
- Rated Current (I n )
- 250 A
- Rated Frequency (f)
- 50...60 Hz
- Housing Material
- Insulation group I
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -40 ... +70 °C
- Degree of Protection
- acc. to IEC 60529 IP20
- Environmental Information
- 2CCY413207D0203
- Product Net Width
- 79 mm
- Product Net Height
- 73.25 mm
- Product Net Depth / Length
- 56.25 mm
- Dimension Diagram
- 2CCC413003C0201
- Instructions and Manuals
- 9AKK106930A3418
- ETIM 9
- EC001522 - Busbar
- eClass
- V11.0 : 27370303
- Object Classification Code
- F
- Standards
- IEC 60439-2
- Width
- 79 mm
- Model
- Flat
- Height
- 73.25 mm
- Flexible
- No
- Length
- 56.25 mm
- Rated current In
- 250 A
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7612271208301
- SAP 1200641790
- Code 83054241
