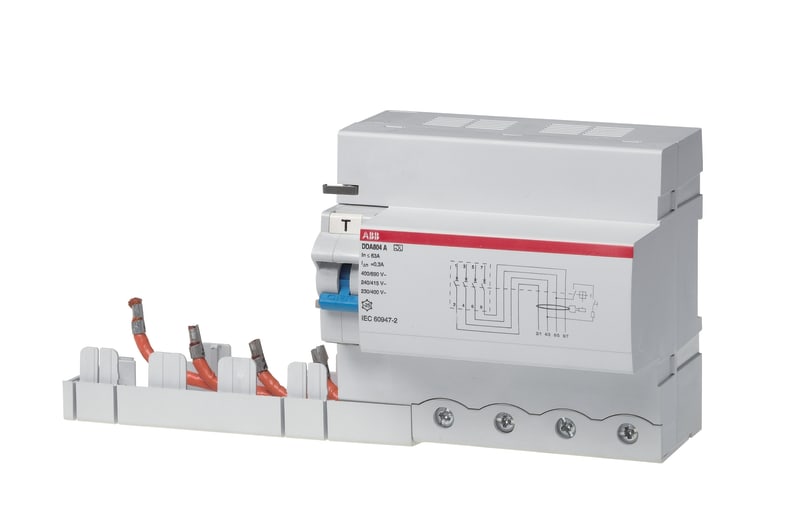

ABB DDA804 RCD Block — 4-Pole, Type A APR, 100 A, 30 mA, 10 ms Delay, for S800 MCB

The ABB 2CSB804401R1000 is a DDA804 residual current device (RCD) block from the DDA800 range. It assembles on site onto an ABB S800 series miniature circuit breaker and adds residual-current protection to that breaker's overcurrent protection. Building a board this way means the earth-fault function can be added only to the ways that need it, instead of holding a separate RCBO in every rating. It is 4-pole, rated 100 A, with a rated residual current of 30 mA. Type A means it responds to sinusoidal AC residual currents and to pulsating DC residual currents, which is what circuits feeding electronic loads require. At 30 mA it is rated for protection of people against electric shock, which is the sensitivity required for socket outlets and other circuits where direct contact is foreseeable. This is the APR high-immunity version, which trips with a 10 ms delay. The delay lets it ride through the brief leakage surges produced by switching, by long cable runs and by the input filters of electronic equipment, instead of nuisance-tripping on them. Rated voltage 230/400 V AC; 240/415 V AC; 400/690 V AC. It fits S800S, S800N, S800C and S800B miniature circuit breakers. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

2CSB804401R1000

EAN / GTIN

8012542547136

Sales unit

pcs

Rated current

100 A

Type of Residual Current

Type A APR

Suitable For

S800S; S800N; S800C; S800B

Maximum Surge Current

3 kA

Leakage Current Type

A

Number of Poles

4P

Operating Characteristic

10ms Delay (High Immunity)

Connecting Capacity

Rigid 6 ... 50 mm²; Flexible 6 ... 70 mm²

Short-Circuit Current Rating (SCCR)

0.03 ... 0.03 A

Rated Voltage (U r )

230/400 V AC; 240/415 V AC; 400/690 V AC

Rated Operational Voltage

400/690 V

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Rated Current (I n )

100 A

Rated Residual Current

30 mA

Rated Frequency (f)

50 / 60 Hz

Power Loss

Total 10.5 W

Ambient Temperature

-25...60 °C

Ambient Air Temperature

Operation -25 ... 60 °C

Degree of Protection

IP2X

Pollution Degree

2

Environmental Information

refer to RoHS information

Width in Number of Modular Spacings

6.5

Product Net Width

117 mm

Product Net Height

108.2 mm

Product Net Depth / Length

82.3 mm

Declaration of Conformity - CE

9AKK106713A5616

Instructions and Manuals

2CSB427001D0003

ETIM 9

EC002297 - Residual current circuit breaker (RCCB) module

UNSPSC

39121601

eClass

V11.0 : 27142210

Object Classification Code

F

Standards

IEC EN 60947-2 Ann. B

Nominal voltage

230–690 V

Nominal current

100 A

Rated fault current adjustable

No

Rated fault current

0.03 A

Delay adjustable

No

Surge current capacity

3 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

690 V

Rated impulse withstand voltage Uimp

6 kV

Connectable conductor cross section solid-core

6–50 mm²

Connectable conductor cross section multi-wired

6–70 mm²

Anti-nuisance tripping version

Yes

With interlocking device

No

Ambient temperature during operating

-25–60 °C

Country of origin

Italy

Product family

ABB DDA800 RCD block (System pro M compact)

Device type

Add-on residual current device (RCD) block for MCB

Model

DDA804

Tripping characteristic

APR — high immunity, 10 ms delay

Protection purpose

Protection of people against electric shock

HS Code

8536.30

• EAN 8012542547136
• SAP 1200640938
• Code 83055816
• MPN 2CSB804401R1000
• Model DDA804
