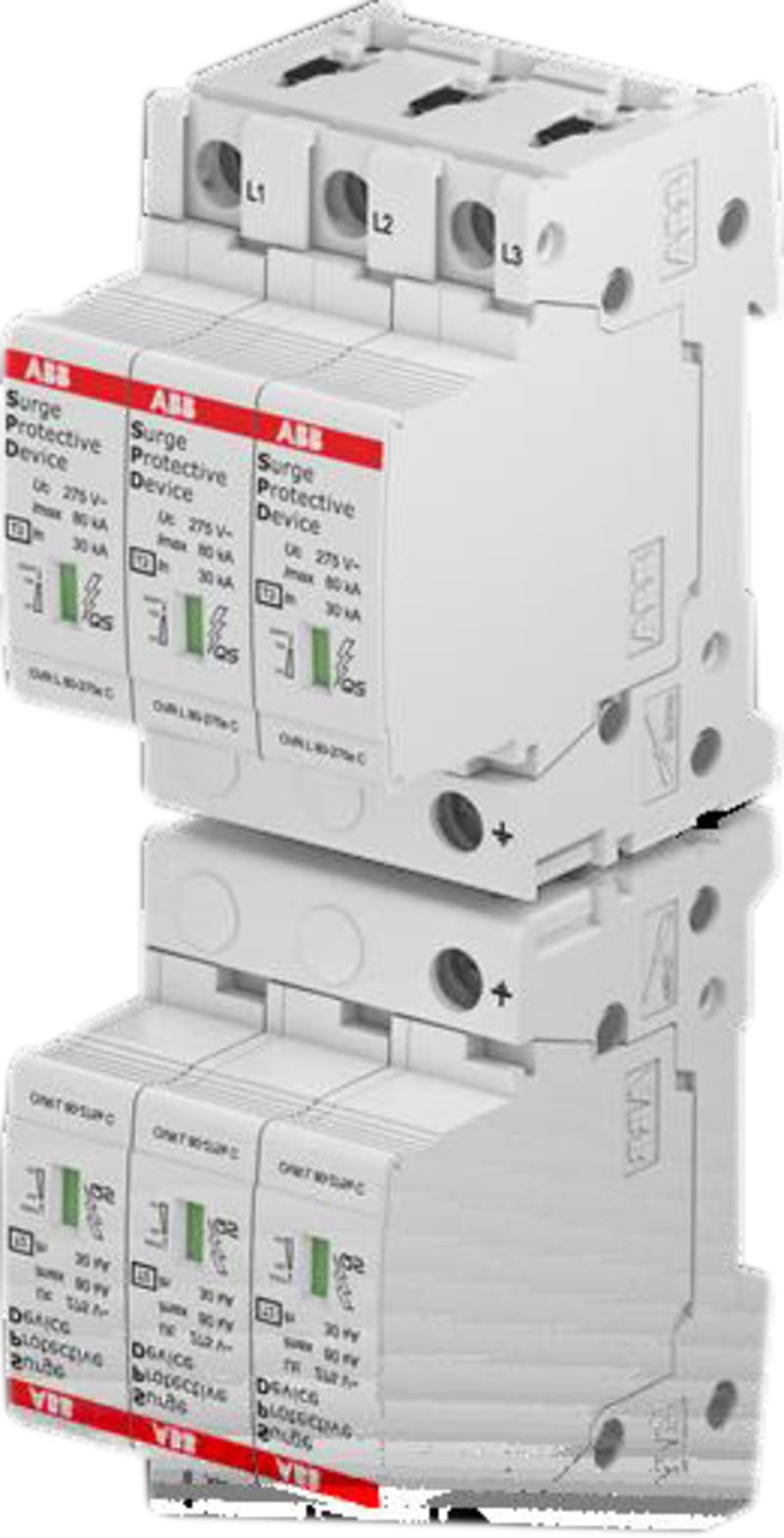

ABB 2CTB815708R1800 OVR T2 3L 80-275S P QS Surge Protective Device
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CTB815708R1800 OVR T2 3L 80-275S P QS Surge Protective Device is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; EcoSolutions Profile: 9AKK108472A3406; Impulse Current: I (imp, 10 / 350 µs, L-N) 6.25 kA; Short Circuit Withstand Icc: 100 kA; Arrester Class: II; Transmission Standard: Optic.
Technical Specifications
- Manufacturer part number (MPN)
- 2CTB815708R1800
- EAN / GTIN
- 3660308525499
- Sales unit
- pcs
- Carbon Footprint (Full Lifecycle)
- 40.737189 kg CO₂ eq
- EcoSolutions Profile
- 9AKK108472A3406
- Environmental Product Declaration - EPD
- 9AKK108472A1711
- Type of Low Voltage Distribution System
- TN-C
- Suitable For
- To protect the systems against the transient overvoltage (lightning)
- Nominal AC Voltage of the System (U o )
- 230 / 400 V
- Maximum Continuous Operating Voltage (U c )
- (L-PE) 275 V
- Temporary Overvoltage Test Value (U T )
- 337 V
- Rated Service Short-Circuit Breaking Capacity (I cs )
- 100 kA
- Discharge Current
- Nominal (8 / 20 µs) 20 kA; I (max, 8 / 20 µs) 80 kA
- Impulse Current
- I (imp, 10 / 350 µs, L-N) 6.25 kA
- Short Circuit Withstand Icc
- 100 kA
- Arrester Class
- II
- Number of Protected Poles
- 3
- Number of Poles
- 3P
- Number of Conductors
- 3
- Transmission Standard
- Optic
- Version
- Plug-in
- Product Type
- QS
- Options Provided
- Industry, commercial building
- Preventive Maintenance Feature
- Yes
- Status Indicator
- Yes
- Fuse Size
- 3 modular spacing
- Cross-Section ( A cross )
- Maximum Conductor Solid-Stranded 35 mm²; Maximum Conductor Flexible 25 mm²
- Rated Voltage (U r )
- 230 V AC
- Voltage Protection Level ( Up)
- 1.4 kV; (L-N) 1.4 kV
- Power Loss
- Total 49 mW
- Degree of Protection
- IP20
- Maximum Operating Altitude Permissible
- Without Derating 5000
- Width in Number of Modular Spacings
- 3
- Product Net Width
- 53.4 mm
- Product Net Height
- 88 mm
- Product Net Depth / Length
- 76.7 mm
- CQC Certificate
- 9AKK107680A1974
- Declaration
- 2CTC432056G1701
- Declaration of Conformity - CE
- 9AKK108466A4617
- Instructions and Manuals
- 2CTC432106M1701
- Mounting Type
- DIN-Rail
- ETIM 9
- EC000941 - Surge protection device for power supply systems
- UNSPSC
- 39121610
- eClass
- V11.0 : 27130805
- Object Classification Code
- 141DCC
- Standards
- IEC 61643-11 / EN 61643-11
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 20 kA
- Nominal voltage AC
- 230 V
- Nominal voltage DC
- 640 V
- Max. continuous voltage AC
- 275 V
- Max. continuous voltage DC
- 350 V
- Voltage protection level L-N
- 1.4 kV
- Voltage protection level N-PE
- 1.4 kV
- Max. overcurrent protection device, series connection (fuse)
- 160 A
- Short-circuit breaking capacity (Isccr)
- 100 kA
- Integrated short-circuit protection
- No
- Integrated short-circuit protection selective to fuse gG
- 160 A
- Integrated backup fuse
- No
- Leakage-current free
- No
- Construction size
- 3 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3660308525499
- SAP 1200641866
- Code 83054328
