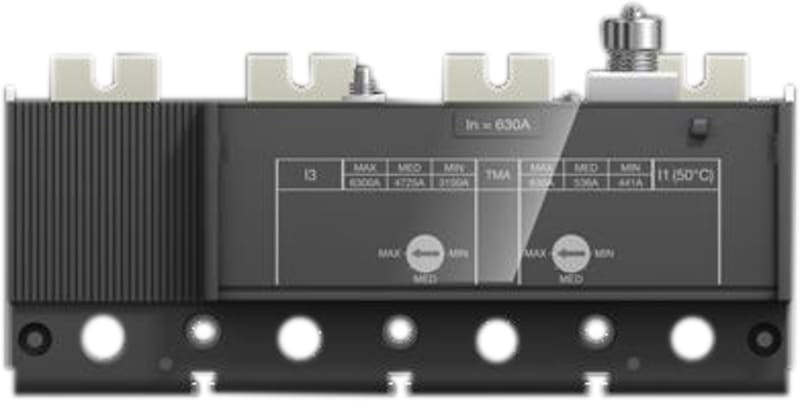

ABB 1SDA100658R1 Thermomagnetic Release FOUR-POLE IN AC-DC TMA R 630 I3=3150...6300 A Fully Rated Neutral XT5
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SDA100658R1 Thermomagnetic Release FOUR-POLE IN AC-DC TMA R 630 I3=3150...6300 A Fully Rated Neutral XT5 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Trip unit: TMA; Environmental Information: 9AKK108467A6707; Product Main Type: Accessories for Tmax XT; Product Type: Accessory; Suitable For: XT5.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA100658R1
- EAN / GTIN
- 8056221007344
- Sales unit
- pcs
- Trip unit
- TMA
- Environmental Information
- 9AKK108467A6707
- Circuit Breaker Type to be Associated
- Power Distribution
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT5
- Configuration Type
- Loose or configurable
- Current Type
- AC/DC
- Number of Poles
- 4P
- Order Multiple
- 1 piece
- Rated Current (I n )
- 630 A
- Release
- TMA
- Release Type
- TM
- Setting Range
- 441…630 A
- Standards
- IEC60947-2
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH002011A1518
- ETIM 9
- EC001023 - Shunt release (for power circuit breaker)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27370418
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8056221007344
- SAP 1200638420
- Code 83052961
Product Documentation
