Signal contact SK400 02-R, 2NC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCF201165R0001 — Signal contact for right side mounting including connection pin for LA/LB on the SMISSLINE TP busbar system, two normally close contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCF201165R0001
- EAN / GTIN
- 7612270111138
- Sales unit
- pcs
- Contact configuration
- 2 NC
- Rated Operational Current AC-15 (I e )
- (230 V) 2 A
- Number of Auxiliary Contacts NC
- 2
- Number of Switches
- 2
- Rated Operational Voltage
- 230 ... 400 V AC
- Rated Current (I n )
- 6 A
- Power Loss
- Total 0.24 W
- Number of Contacts CO
- 0
- Number of Contacts NC
- 2
- Number of Contacts NO
- 0
- Environmental Information
- 9AKK108467A9561
- Product Net Width
- 9 mm
- Product Net Height
- 92 mm
- Product Net Depth / Length
- 75 mm
- Dimension Diagram
- 9AKK107492A6192
- EPLAN Data
- 9AAF617139_EPLAN
- Declaration of Conformity - CE
- 9AKK107991A9645
- Instructions and Manuals
- 2CCR203510B0001
- Mounting Type
- Plug-In
- ETIM 9
- EC000041 - Auxiliary contact block
- UNSPSC
- 39121522
- eClass
- V11.0 : 27371302
- Object Classification Code
- F
- Standards
- IEC/EN EN60947-5-1
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 7612270111138
- SAP 1200641012
- Code 83056169
Product Documentation
More from ABB
ABB
PB 25mm 6 Pcs XT5 4P KIT PA.DI.PH.HI
1SDA105007R1
ABB

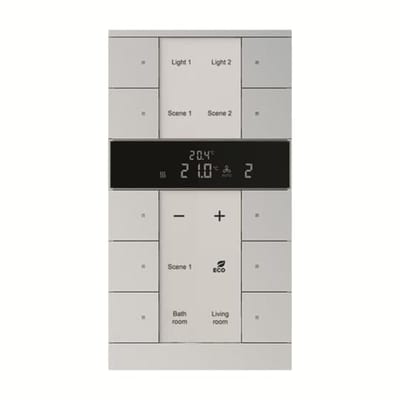

Tenton 5/10V Aluminium SBR/U10.0.1-83
2CKA006330A0056
ABB

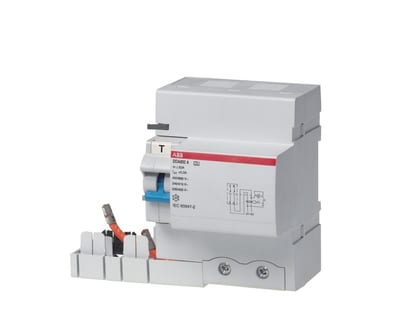

ABB DDA802 RCD Block — 2-Pole, Type A, 63 A, 1 A, Selective, for S800 MCB
2CSB802201R5630
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C10 APR300MA
2CSR275480R3104
ABB

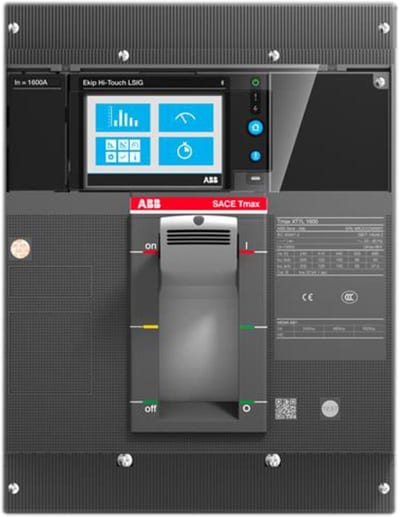

ABB SACE Tmax XT7H 1250 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI 1250A, In=1250 A, 3-Pole
1SDA100920R1
ABB

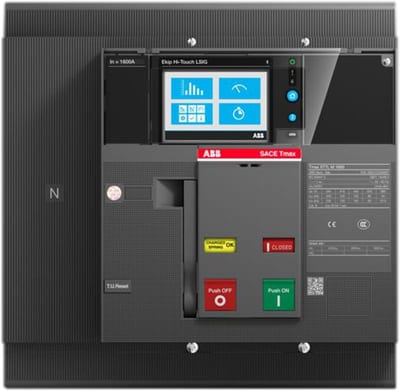

ABB SACE Tmax XT7S 1600 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI IN800, In=800 A, 4-Pole
1SDA101682R1
ABB

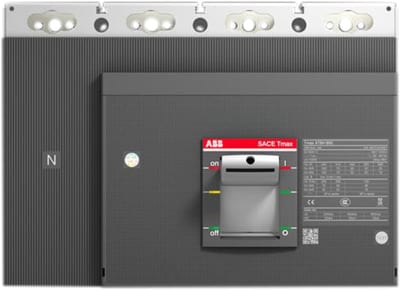

ABB SACE Tmax XT6H 800 Moulded-Case Switch-Disconnector — 4-Pole
