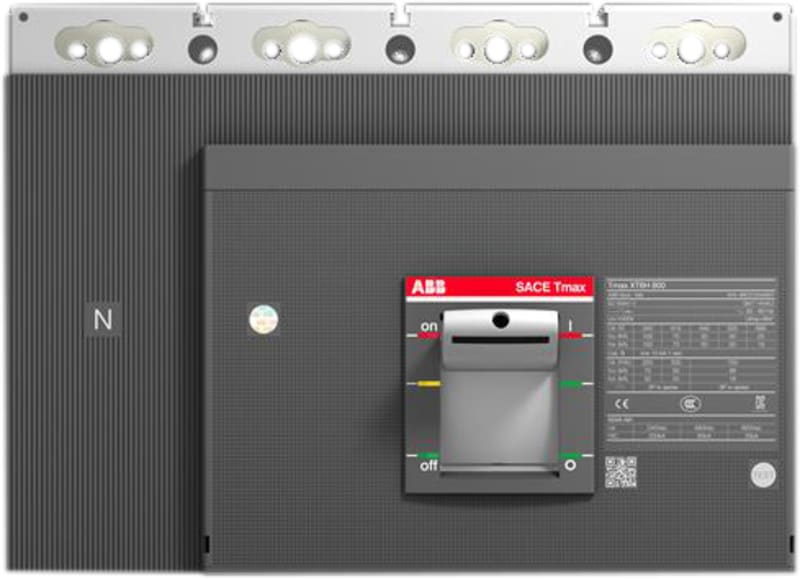

ABB SACE Tmax XT6H 800 Moulded-Case Switch-Disconnector — 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT6H 800 A frame moulded-case switch-disconnector (non-automatic isolating and switching duty, supplied without an overcurrent trip unit). 4-pole, F/F (front, fixed) terminals. Rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100798R1, EAN 8056221008525, ABB/SAP material 1200638514, catalogue code 83054459.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT6 (moulded-case switch-disconnector, IEC 60947-2)
- Configuration
- XT6H 800 SWITCH UNIT 4p FF
- ABB order code (MPN)
- 1SDA100798R1
- EAN / GTIN
- 8056221008525
- ABB / SAP material no.
- 1200638514
- Frame
- XT6 (800 A frame)
- Trip unit
- none (switch-disconnector)
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.50
Cross References
- EAN 8056221008525
- SAP 1200638514
- Code 83054459
Product Documentation
More from ABB
ABB
ABB 1SDA102010R1 Rating PLUG In=1600A XT7-XT7M EKIP DIP LSI-LSIG EKIP Touch IEC
ABB
ABB S401-D10 Miniature Circuit Breaker — 1P, Type D, 10 A, 10 kA
2CCS571001R0101
ABB
ABB S204-B100 Miniature Circuit Breaker — 4P, Type B, 100 A, 6 kA
ABB
WALL-Mount Cabinet TL409G 1400X1050X275MM IP55
ABB
ABB 1SDA105024R1 HIGH Terminal-Covers FOUR-POLE FOR Fixed PART OF A Circuit Breaker WITH Residual Current RC XT5
ABB

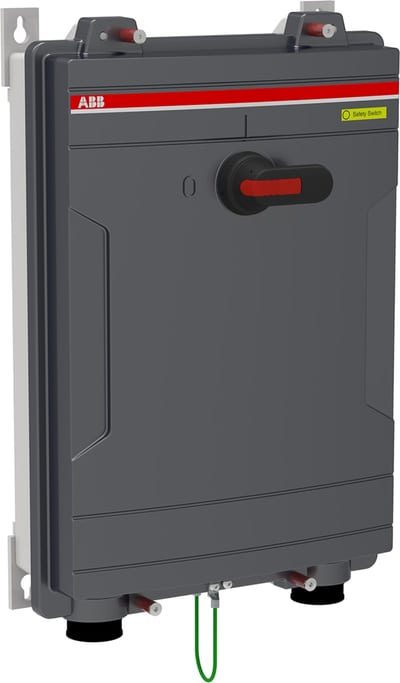

Safety Switch OTA125P3B
1SCA142583R1001
ABB

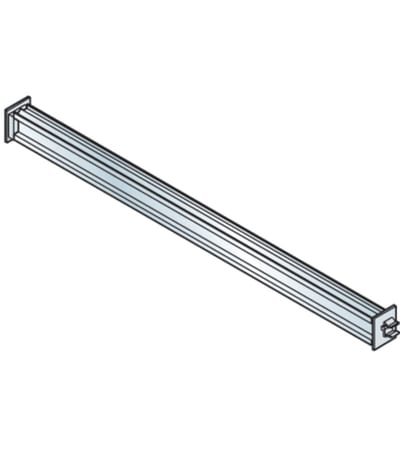

ABB DIN RAIL-SIZE 4-5 Gemini IP66 Insulating switchboards accessories 1SL0292A00
ABB
ABB WB/Z1.1.1 Wall and Mast Mounting Adapter for WES/A4.1.1
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SDA100798R1?
- 1SDA100798R1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SDA100798R1.
- What is the HS code for 1SDA100798R1?
- The customs tariff (HS) code for 1SDA100798R1 is 8536.50.
- Who manufactures 1SDA100798R1?
- 1SDA100798R1 is a ABB product in the Electrical Components range.
- Is a datasheet available for 1SDA100798R1?
- Yes — the 1SDA100798R1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SDA100798R1?
- The minimum order quantity is 1.
- Is 1SDA100798R1 available?
- Yes — 1SDA100798R1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
