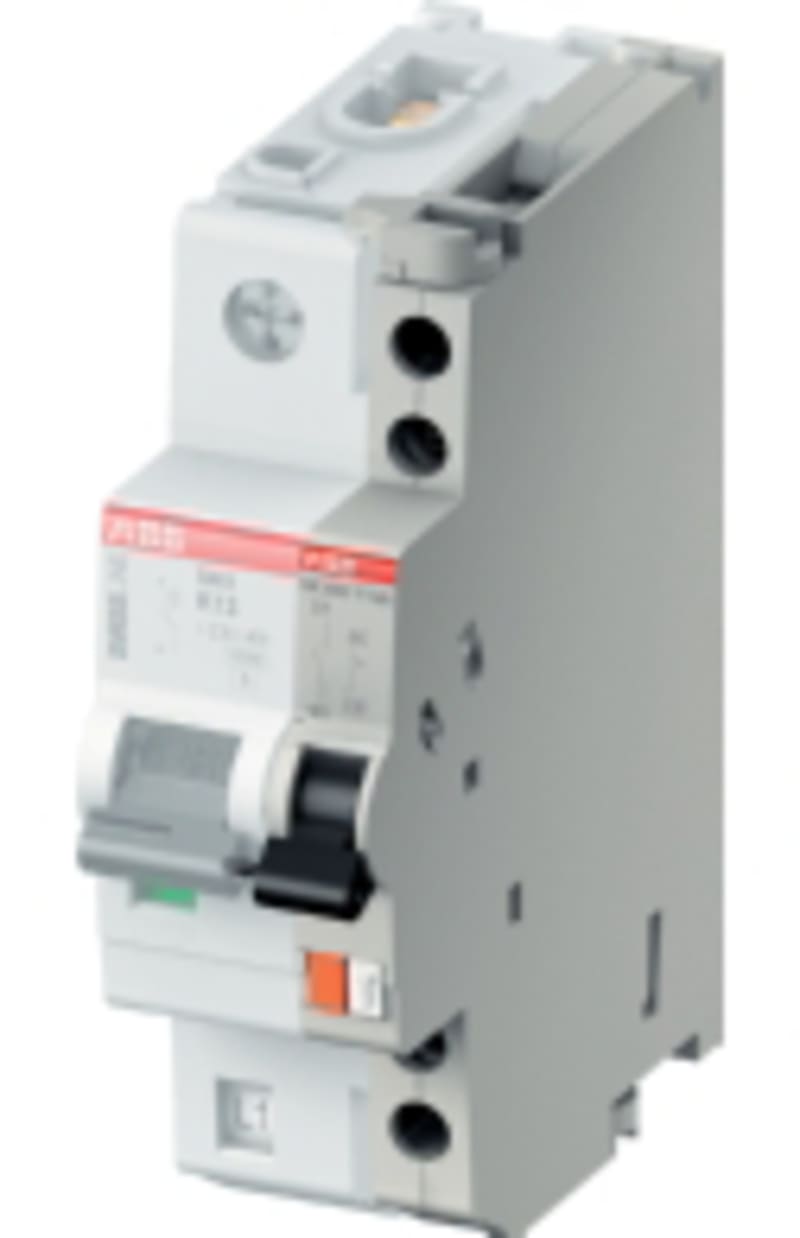

SK400 11-R Sign.KONT, 1NO+1NC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCS500900R0215 — Signal contact for right side mounting including connection pin for LA/LB on the SMISSLINE TP busbar system, one normally open contact and normally close contact.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS500900R0215
- EAN / GTIN
- 7612270108626
- Sales unit
- pcs
- Contact configuration
- 1 NO + 1 NC
- Rated Operational Current AC-15 (I e )
- (230 V) 2 A
- Number of Switches
- 1
- Rated Operational Voltage
- 230 ... 400 V AC
- Rated Current (I n )
- 6 A
- Power Loss
- Total 0.24 W
- Number of Contacts CO
- 0
- Number of Contacts NC
- 1
- Number of Contacts NO
- 1
- Environmental Information
- 9AKK108467A9561
- Product Net Width
- 18 mm
- Product Net Height
- 91 mm
- Product Net Depth / Length
- 75 mm
- Dimension Diagram
- 9AKK107492A6192
- EPLAN Data
- 9AAF617139_EPLAN
- Declaration of Conformity - CE
- 9AKK107991A9645
- Instructions and Manuals
- 2CCR203510B0001
- Mounting Type
- Plug-In
- ETIM 9
- EC000041 - Auxiliary contact block
- UNSPSC
- 39121522
- eClass
- V11.0 : 27371302
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- FC
- Standards
- IEC/EN EN60947-5-1
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 7612270108626
- SAP 1000201717
- Code 81030122
Product Documentation
More from ABB
ABB

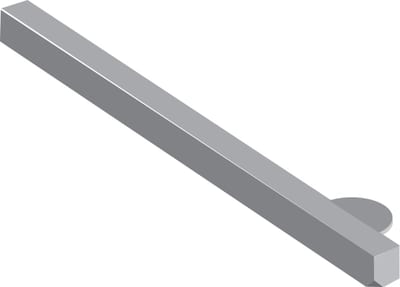

ABB OXS6X130 SHAFT for selector handle
ABB
AUE 2 Contacts IN CH x Rhx XT2-XT4 W
1SDA066455R1
ABB

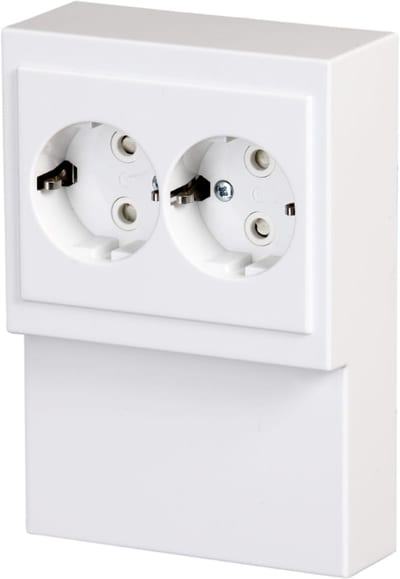

Base box with Double Socket, White
402EL-84
ABB

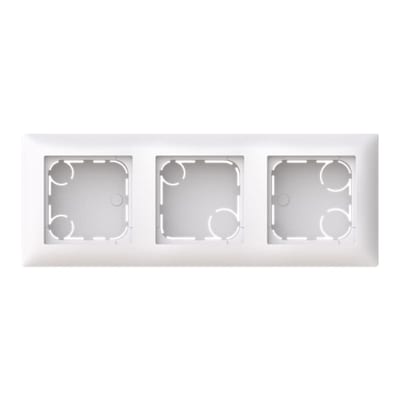

SAGA 3-Hole Cover 85mm Height 43mm
1723S85H43-916
ABB

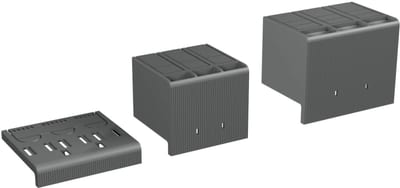

HTC XT1, 3P, AVD. HIGH, 2 PCS
HTC XT1 3p TERM.COVERS HIGH 2p
ABB

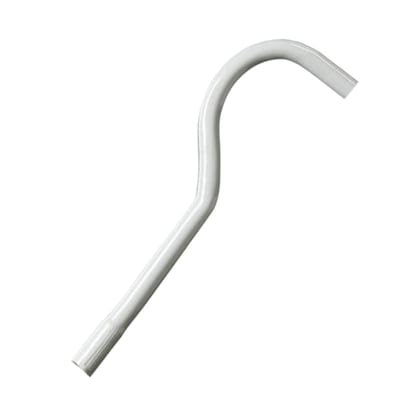

PIPE BEND 20mm JMKL20.3 Halogen-FREE
JMKL20.3HF
ABB

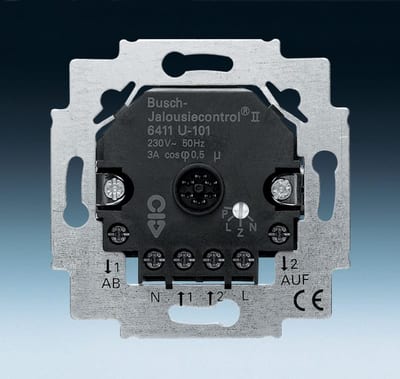

IR Markiseswitch Insert 6411
2CKA006410A0377
ABB

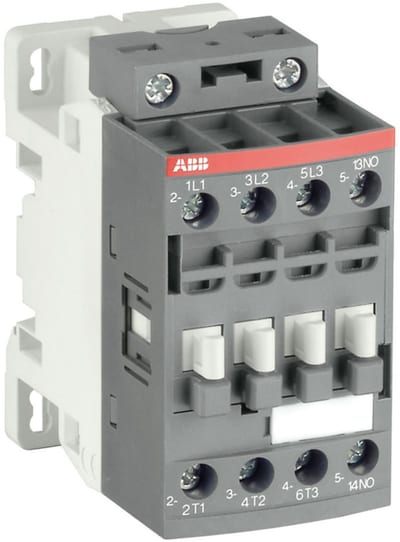

AF09Z-30-01-21 60VAC 20-60VDC
