ABB

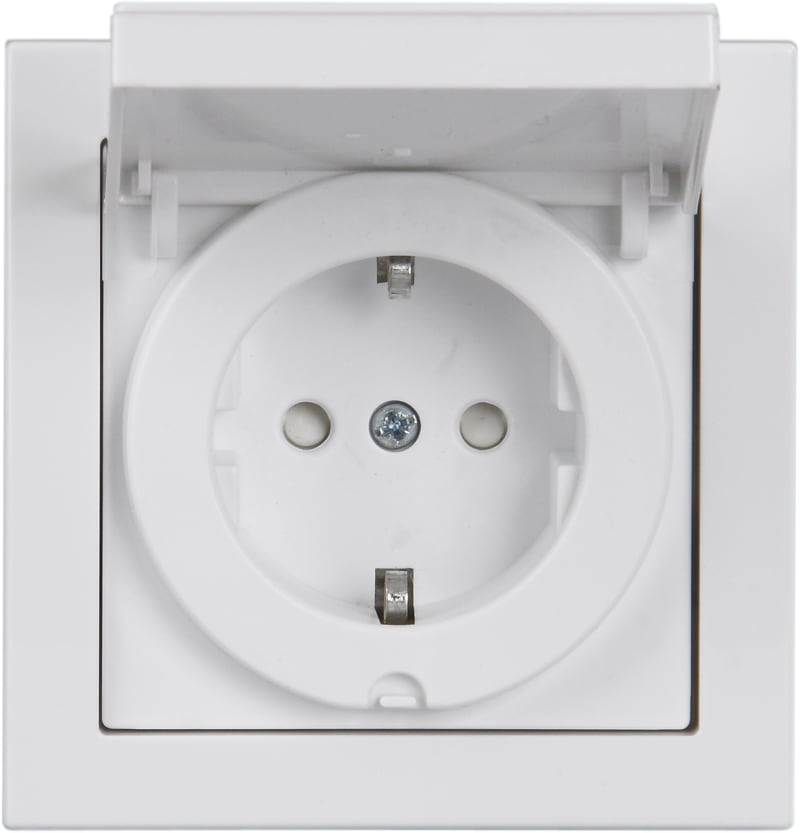

IMPRESSIVO recessed single socket, IP44, white
Part number20EUJW-84EAN / GTIN6438199000015HS code8536.90
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Single socket outlet, Impressivo version, with earth, recessed, white, IP44, with quick-connect terminals. Material: plastic.
Technical Specifications
- Manufacturer part number (MPN)
- 20EUJW-84
- EAN / GTIN
- 6438199000015
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP44
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Cover
- Complete housing
- Number of units
- 1
- Lockable
- No
- With hinged lid
- Yes
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 1
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Mounting with claw and screw
- Imprint/indication
- None
- RAL-number (similar)
- 9016
- Impact strength
- IK05
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP44
- Phase pickup
- None
- Device width
- 85 mm
- Device height
- 45 mm
- Device depth
- 85 mm
- Number of socket outlets switchable
- 1
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Min. depth of built-in installation box
- 28 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Protective contact
- Earthing clips
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6438199000015
- SAP 1000428616
- Code 8893326
Product Documentation
Document preview: ABB 20EUJW-84 — OEM Product Page
More from ABB
ABB
ZLS908 TP Plinth H.SK. 8MOD
2CCA183030R0001
ABB
ABB 1SDA066970R1 KIT Flexible BARS 4PCS XT4
ABB
AFDD module for DS202CR
2CDB470100R0000
ABB
JF.AUT.DS203NC-C16/0.1 (2CSR256140R2164)
ABB
Residual Current Circuit Breaker WITH Overcurrent DS203M A C32/30MA 230V
1653585
ABB

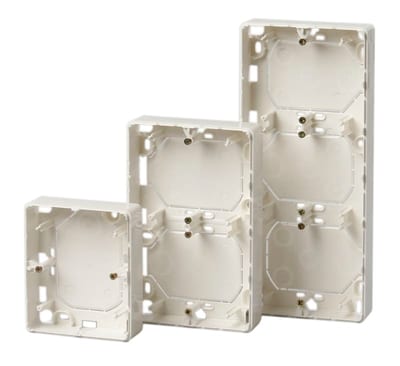

ROT Frame FOR Double Socket
2521R-100
ABB

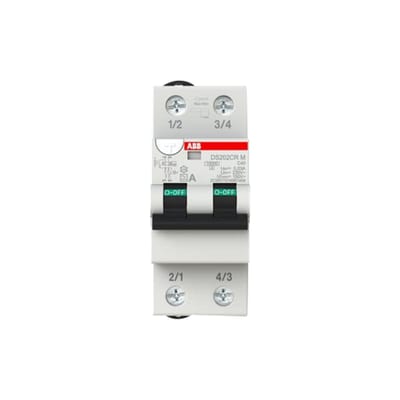

Residual Current Circuit Breaker WITH Overcurrent DS202CRM C40A 30MA
2CSR772140R1404
ABB

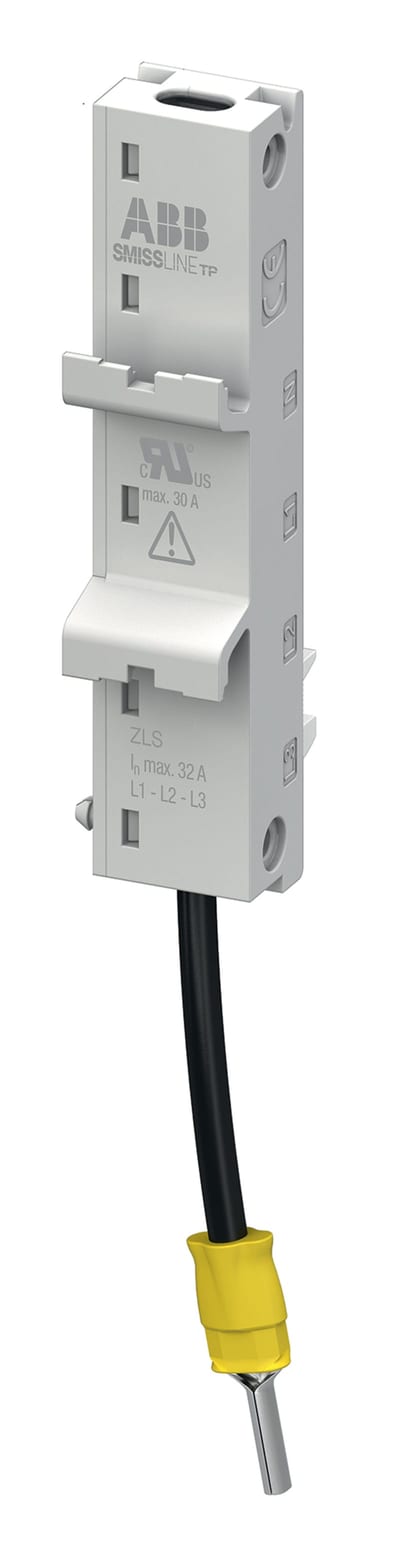

Universaladapter ZLS971
