ZLS908 TP Plinth H.SK. 8MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

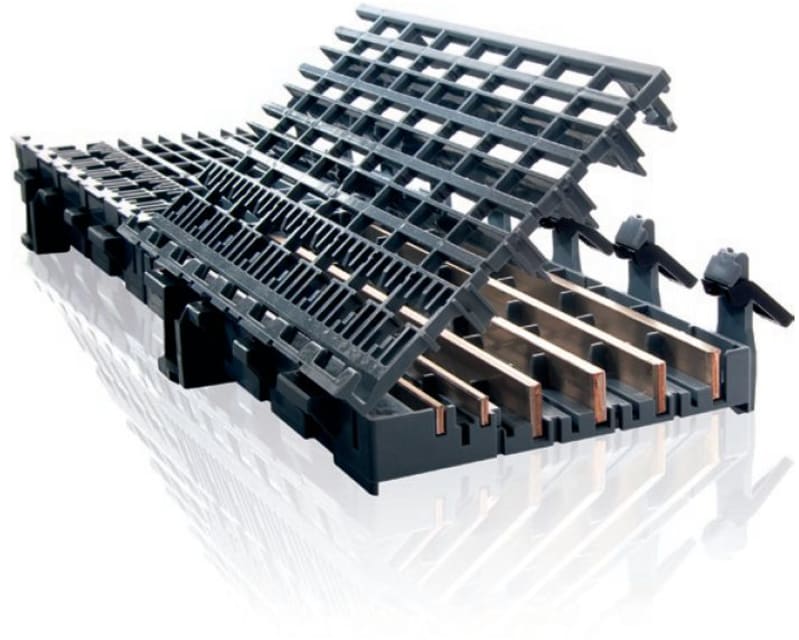

ABB 2CCA183030R0001 — SMISSLINE TP 8-module socket for the 125A system, length 144 mm (includes base and cover). The pluggable socket system is completely finger safe (IP2XB) together with the socket end piece.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCA183030R0001
- EAN / GTIN
- 7612271413965
- Sales unit
- pcs
- Modular width
- 8 modules
- EcoSolutions Profile
- 9AKK108470A4390
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 94.66 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Sustainable Material Content in Packaging (wt. %)
- FSC Mix Cardboard - 90.41 %; Recycled Cardboard - 4.61 %; 0 %; 0 %
- Improved Energy Efficiency for Customers
- Process Efficiency - Product improves/optimizes process
- End Of Life Disassembling Instructions
- 9AKK108470A3547
- Environmental Product Declaration - EPD
- 9AKK108470A0226
- Model Number
- Flat
- Options Provided
- ZLS
- Rated Operational Voltage
- 690 V AC; 440 V DC
- Environmental Information
- 9AKK108467A9561
- Product Net Width
- 111 mm
- Product Net Height
- 144 mm
- Product Net Depth / Length
- 34 mm
- Dimension Diagram
- 9AKK107492A6192
- EPLAN Data
- 9AAF617142_EPLAN
- Declaration of Conformity - CE
- 9AKK107991A9646
- Instructions and Manuals
- 9AKK107680A2315
- ETIM 9
- EC001522 - Busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27370303
- IDEA Granular Category Code (IGCC)
- 4376 >> Distributor assembly buss bars
- Object Classification Code
- W
- Standards
- IEC/EN 61439-6
- Number of poles
- 8
- Max. rated current
- 200 A
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7612271413965
- SAP 1000337342
- Code 81089987
Product Documentation
