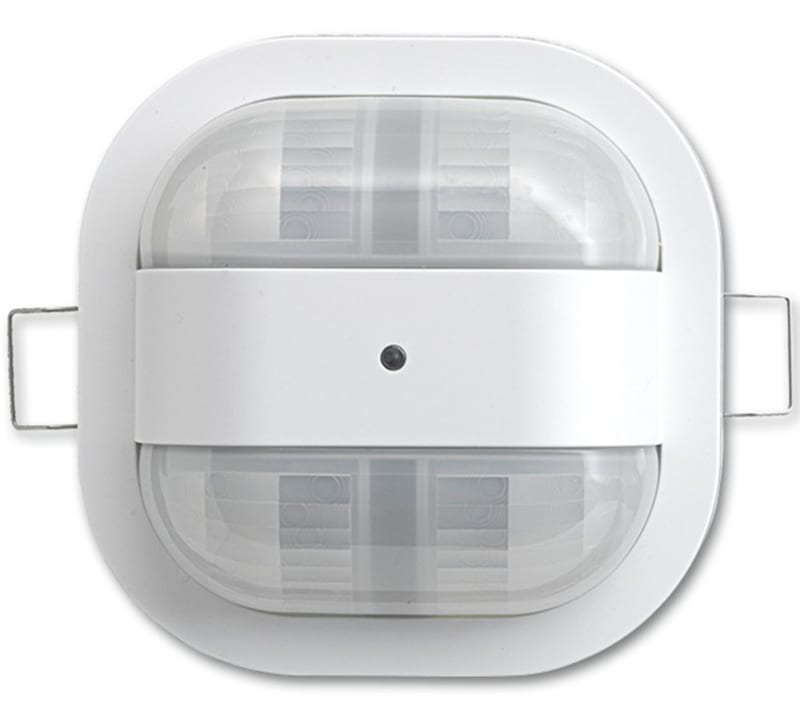

BEV.PROBE CORRUGATED 30M DALI Slave

ABB 2CKA006800A2761 — DALI slave presence detector for extension of the detection range of DALI master presence detectors. For the supply of operating voltage via the DALI master. Power consumption on the DALI bus: max. 10 mA, corresponds to approx. 5 DALI operating devices. The communication with the DALI master is carried out via the DALI interface. Detection range (for installation height of 3 m): rectangular Walking persons: crosswise to the detector 24 m x 3 m, frontal/lengthways to the detector 14 m x 3 m. Mounting height 27 mm. Ceiling installation using integrated spring bracket. Twist protection via additional quick tensioning. Surveillance density: 92 sectors with 368 switching segments. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm.

Manufacturer part number (MPN)

2CKA006800A2761 EAN / GTIN: 4011395217856 Sales unit: pcs Mounting Type: Built-in Mounting Position: Ceiling Mounting Height: Optimum 2 m Modular Components Included: Complete Device Ambient Air Temperature: -5 ... 45 °C; Operation -5 ... +45 °C Degree of Protection: IP40 Data Sheet, Technical Information: 2CKA001473B9577; 2CKA001673B9577 Measuring Range: 24 x 3 m Number of Inputs: Extension 1 Number of Switching Zones: 368 Compatible Bus Systems: DALI minimum Switching Time: Switch-On 60 s Sensor Type: Passive Infrared Illuminance: 5 ... 2000 lx Terminal Type: Screwless Terminals Sensor Detection Range: 90 ... 360 °; Horizontal 90 ... 360 ° Rated Voltage (U r ): 230 ... 230 V Auxiliary Voltage AC/DC: 9.5 V; 22.5 V AC/DC Input Voltage Type: DC Rated Frequency (f): 50 ... 60 Hz Power Loss: 0.3 W; Total 0 W Design Range: ProfessionalLINE Surface Finishing: Matt; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9016 Color: white Product Net Width: 94 mm Product Net Height: 94 mm Product Net Depth / Length: 76 mm Built-In Depth ( t 2 ): 49 mm Declaration of Conformity - CE: 2CKA200000E6506 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC001582 - Movement sensor for bus system eClass: V11.0 : 27144007 Bus system KNX Secure: No Bus system KNX Secure-RF (Radio Frequency): No Suitable for ceiling mounting: Yes Max. presence range: 72 m² Suitable for wall mounting: No Bus system KNX: No Bus system KNX-RF (Radio Frequency): No Bus system radio frequency: No Bus system LON: No Bus system Powernet: No Other bus systems: DALI Model: Presence detector material quality: Thermoplastic Surface protection: Untreated Colour: White Transparent: No With bus connection: No Substation input: No Creep-under protection: Yes Animal zone: No Staircase light controller: Yes Response value luminosity adjustable: No Teach-function for response value luminosity: No Optimum mounting height: 2 m Max. reach sideways: 6 m Max. reach frontally: 6 m Detection angle horizontal: 90–360 ° Min. switch-on time: 60 s Max. duty cycle: 30 min Min. depth of built-in installation box: 49 mm Width: 94 mm Height: 94 mm Depth: 76 mm Built-in diameter: 68 mm Built-in length: 49 mm Country of origin: Germany

HS Code

8536.50

• EAN 4011395217856
• SAP 1200253713
• Code 82212728
