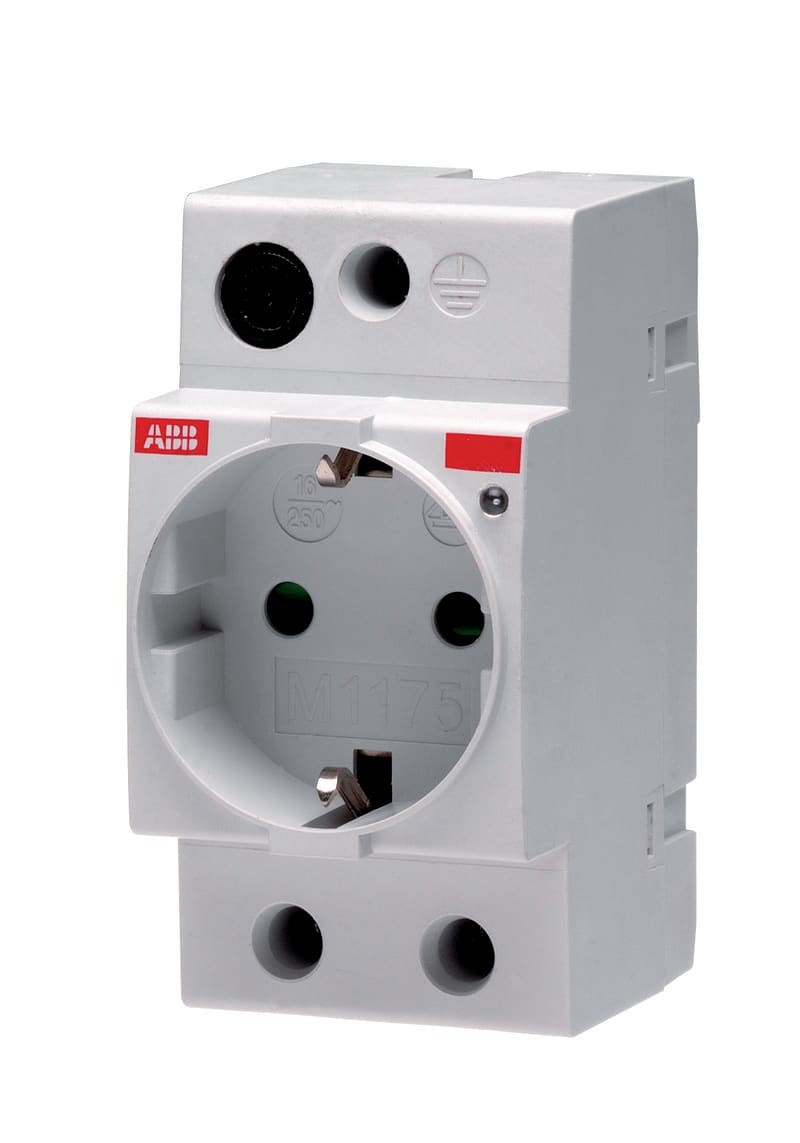

Socket FOR DIN-RAIL M1175-FL
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM214000R0721 — This modular socket allows the connection of devices, tools or electrical and electronic non modular equipments in civil and industrial electrical switchboards. With light and fuse.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM214000R0721 EAN / GTIN: 8012542028659 HS code: 8536.90 Sales unit: pcs Number of Active Pin Terminals: 2 Tightening Torque: 1.2 N·m Fuse Type: aM Lamp Type: Fluorescent torpedo-shaped lamp Product Type: German Schuko Standard Options Provided: Phase protection fuse; Indicator light for power supply presence; Safety shutters Remarks: Reference standards for fuse breaking capacity: IEC EN 60127 Lamp Color: Green Cable Cross-Section: minimum 2.5 mm²; Maximum 16 mm² Connecting Capacity: Rigid Cu-Cable 2.5 ... 16 mm² Fuse Size: 5 x 20_MMT$ Rated Voltage (U r ): 250 V AC Rated Current (I n ): 16 A Rated Frequency (f): 50/60 Hz Power Consumption (@P cons ): Indicator Light 0.25 W Power Loss: Total 0.6 W; at Rated Operating Conditions per Pole 0.6 W Color: Grey Ambient Air Temperature: Operation -25…+35 °C; Storage -40…+70 °C Degree of Protection: IP20 Environmental Information: 9AKK108471A0778 Width in Number of Modular Spacings: 2.5 Product Net Width: 44 mm Product Net Height: 85 mm Product Net Depth / Length: 70 mm Built-In Depth ( t 2 ): 60 mm Dimension Diagram: 9AKK108469A3974 CAD Dimensional Drawing: 9AKK106930A4681 Declaration of Conformity - CE: 9AKK107492A6968 VDE Certificate: 9AKK108472A9415 ETIM 9: EC001663 - Socket outlet for distribution board eClass: V11.0 : 27142305 Object Classification Code: X Certification Agency: VDE Standardization Body: VDE
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542028659
- SAP 1200640877
- Code 83054200
Product Documentation
