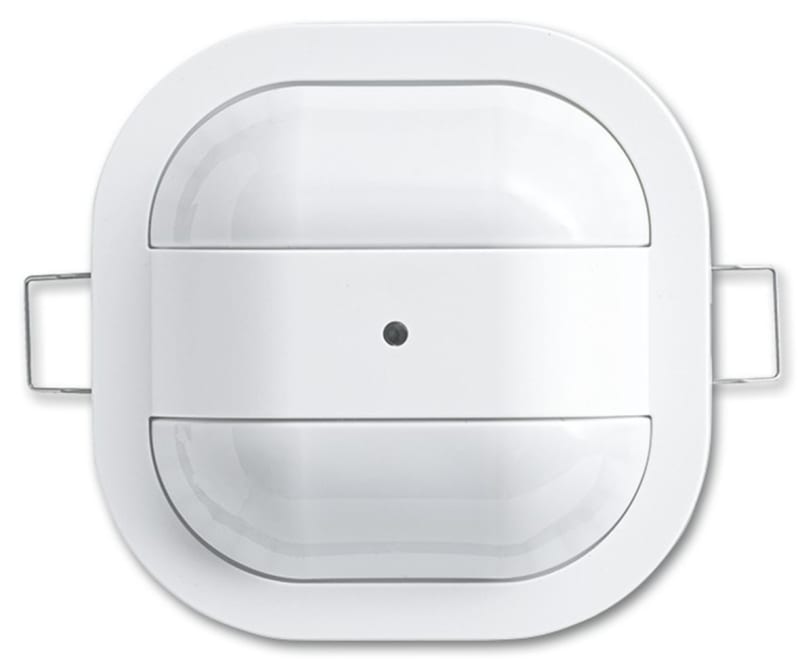

BEV.Probe UNIV. 12M DALI BT

ABB 2CKA006800A2747 — Master presence detector with mixed light measurement. For regulating and switching of DALI operating devices that depend on brightness and movement. For DALI broadcast operation (central telegram). Supplies the required voltage for additional DALI operating units and controllers. Suitable for up to 45 DALI operating devices. For changing the colour temperature of >tunable white< lamps, which meet DALI Standard IEC 62386-209 (Device Type 8). Colour temperature can then be set between 2,700 K - 6,500 K. With additional switching output for the activation of heating, air conditioning and ventilation or for switching additional loads (e.g. panel light). Configuration possible up to the complete deactivation of the DALI operating devices. With Bluetooth interface for parameterization and operation. Adjustment of all setting options via smartphone or tablet. Light control via smartphone or tablet app. Detection range (for installation height of 3 m): circular Seated persons: up to Ø 10 m, walking persons: up to Ø 12 m. Extension of the detection range by means of master/slave combination. Visible height 23 mm. For semi-automatic, comfort and fully automatic operation. Additional activation/deactivation possibility through pushbutton input. With continuous light/continuous off function (8 hours), activation via intelligent extension unit input possible. With time-controlled basic illumination function. With selectable warm-up function for fluorescent lamps. With 2-step automatic switch-off (according to EnEV / EN 15232). With time-controlled night anti-glare function. With selectable presence simulation in case of non-presence. With integrated storage of ON period (energy monitor).

Manufacturer part number (MPN)

2CKA006800A2747 EAN / GTIN: 4011395217696 Sales unit: pcs Mounting Type: Built-in Mounting Position: Ceiling Mounting Height: Optimum 2 m Modular Components Included: Complete Device Ambient Air Temperature: -5 ... 45 °C; Operation -5 ... +45 °C Degree of Protection: IP40 Data Sheet, Technical Information: 2CKA001473B9577; 2CKA001673B9577 Measuring Range: 12 m Number of Outputs: 1 Number of Switching Zones: 640 Compatible Bus Systems: DALI Transmission Standard: Bluetooth minimum Switching Time: Switch-On 60 s Product Type: Universal Sensor Type: Passive Infrared Illuminance: 5 ... 2000 lx Terminal Type: Screwless Terminals Sensor Detection Range: 90 ... 360 °; Horizontal 90 ... 360 ° Rated Voltage (U r ): 110 ... 230 V Input Voltage Type: AC Rated Frequency (f): 50 ... 60 Hz Maximum Switching Power: 1380 W; Fluorescent Lamp 1380 V·A; Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 1380 V·A; Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 1380 V·A; Incandescent Lamp or Halogen High Voltage Lamps 1380 W; LEDi 200 V·A Load Type: LEDi/CFLi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage Power Loss: 0.3 W; Total 0 W Design Range: ProfessionalLINE Surface Finishing: Matt; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9016 Color: white Product Net Width: 94 mm Product Net Height: 94 mm Product Net Depth / Length: 83 mm Built-In Depth ( t 2 ): 60 mm Declaration of Conformity - CE: 2CKA200000E6494 EU Data Act Compliance Declaration: 9AKK108471A4357 EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC001582 - Movement sensor for bus system eClass: V11.0 : 27144007 Bus system KNX Secure: No Bus system KNX Secure-RF (Radio Frequency): No Suitable for ceiling mounting: Yes Max. presence range: 110 m² Suitable for wall mounting: No Bus system KNX: No Bus system KNX-RF (Radio Frequency): No Bus system radio frequency: No Bus system LON: No Bus system Powernet: No Other bus systems: DALI Model: Presence detector material quality: Thermoplastic Surface protection: Untreated Colour: White Transparent: No With bus connection: No Substation input: Yes Creep-under protection: Yes Animal zone: No Staircase light controller: Yes Response value luminosity adjustable: Yes Teach-function for response value luminosity: No Optimum mounting height: 2 m Max. reach sideways: 6 m Max. reach frontally: 6 m Diameter reach on floor: 12 m Detection angle horizontal: 90–360 ° Min. switch-on time: 60 s Max. duty cycle: 30 min Min. depth of built-in installation box: 60 mm Width: 94 mm Height: 94 mm Depth: 83 mm Built-in diameter: 68 mm Built-in length: 60 mm Country of origin: Germany

HS Code

8536.50

• EAN 4011395217696
• SAP 1200253710
• Code 82212726
