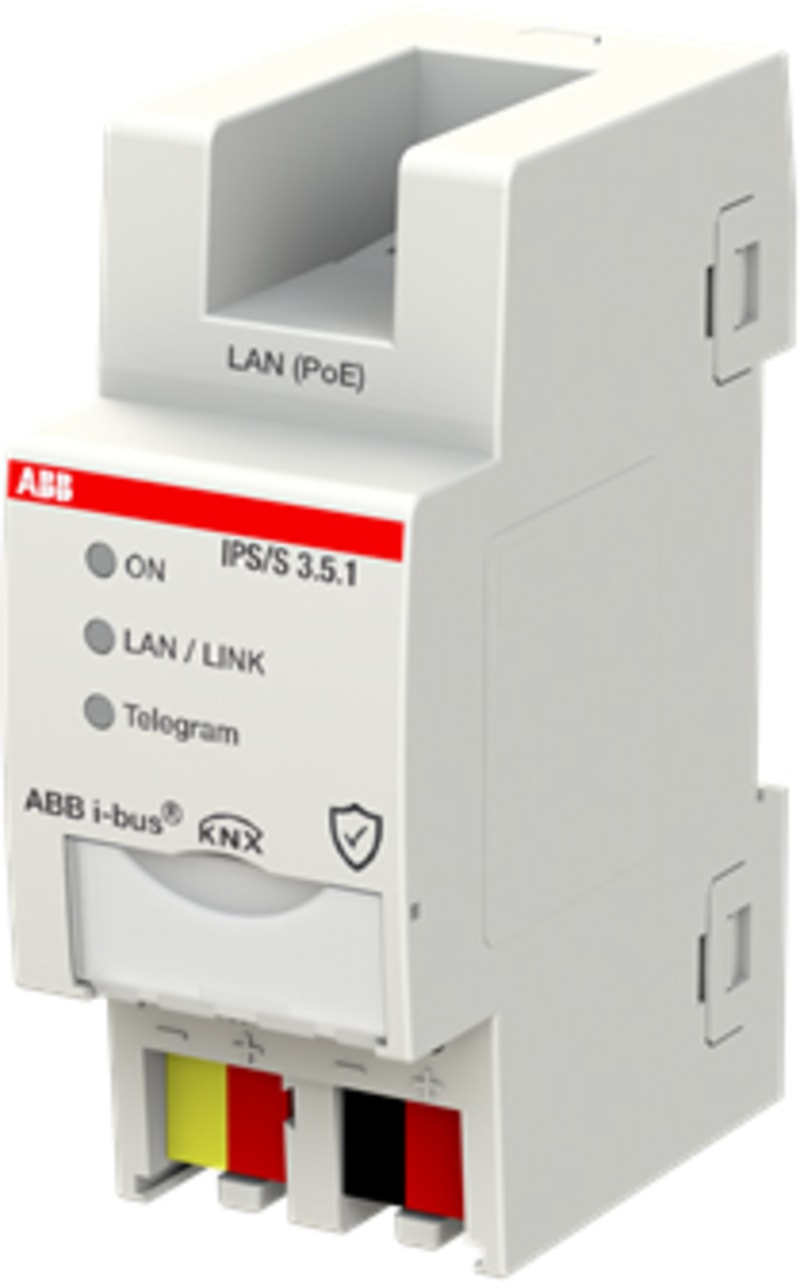

IP Interface Secure
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB IPS/S3.5.1 — Connects the KNX bus with the Ethernet network and encrypts communication. The device uses the KNXnet/IP Secure protocol for communication (Tunneling). KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Secure Tunneling Servers are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12…30 V DC or PoE (IEEE 802.3af class 1).
Technical Specifications
- Manufacturer part number (MPN)
- IPS/S3.5.1
- EAN / GTIN
- 4016779016414
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941182P0001
- Wiring Diagram
- 9AKK108464A0302
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 9AKK107991A7342
- Communication Interface
- Ethernet
- Number of LEDs
- 3
- Compatible Bus Systems
- KNX (TP); KNX (IP)
- Product Range
- KNX
- Manual Operation
- No
- Number of Batteries
- 0
- Security Standard
- KNX IP Secure
- Voltage Range
- PoE
- Auxiliary Voltage AC/DC
- 12 ... 30 V DC
- Power Loss
- 1.8 W; Total 2 W
- Surface Finishing
- Matt
- Housing Material
- Plastic
- RAL Number
- RAL 7035 - Light Grey
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072025F0017
- EPLAN Data
- 9AAC189149_EPLAN
- CAD Dimensional Drawing
- 2CDC072025F0017
- Declaration of Conformity - CE
- 9AKK107991A5979
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0690
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000674 - Interface for bus system
- eClass
- V11.0 : 27143102
- UNSPSC
- 43222605
- IDEA Granular Category Code (IGCC)
- 6809 >> System interface/media gateway for bus system
- Object Classification Code
- A
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Transparent
- No
- Max. data transmission rate
- 1000000 Bd
- With bus connection
- Yes
- With label area
- Yes
- With LED indication
- Yes
- Min. depth of built-in installation box
- 63.5 mm
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Ethernet
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4016779016414
- SAP 1200513888
- Code 82661113
Product Documentation
