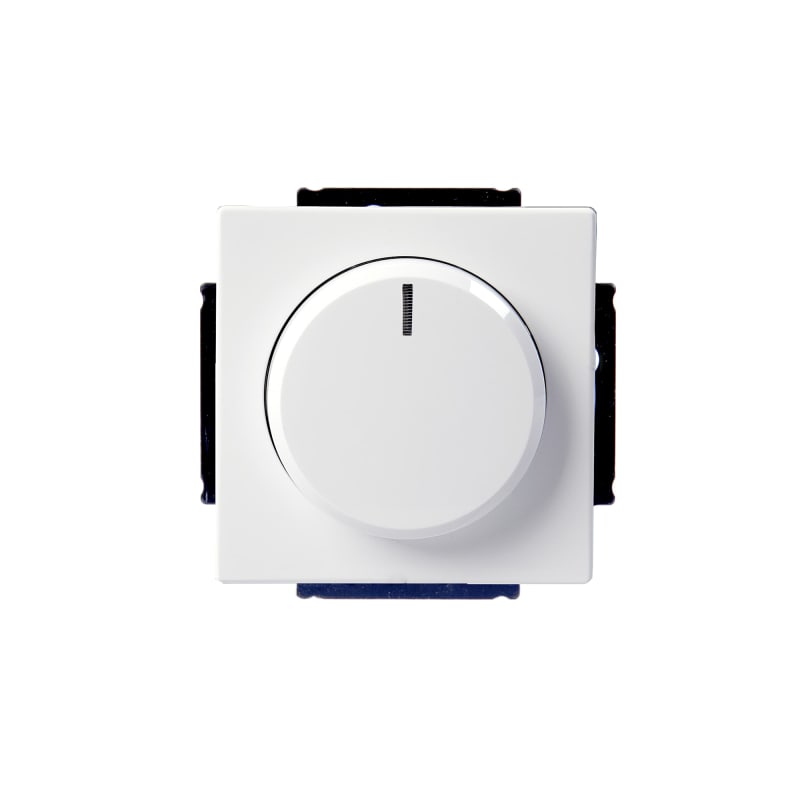

Impressivo POT.METER 1-10V White
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006599A3029 — With rotary control. For controlling ballast units for fluorescent lamps with control output 1-10 V DC, control current max. 50 mA DC. For LED control via control gears.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006599A3029
- EAN / GTIN
- 4011395265697
- Sales unit
- pcs
- Mounting Type
- Flush Mounted
- Modular Components Included
- Kit
- Rated Voltage (U r )
- 230 V
- Rated Control Supply Voltage (U s )
- 1 ... 10 V DC
- Rated Current (I n )
- 4 A
- Rated Frequency (f)
- 50 / 60 Hz
- Maximum Switching Power
- Fluorescent Lamp 700 V·A
- Load Type
- Universal; Electronic Ballast 1-10V; Fluorescent Lamp
- Design Range
- future linear; Platform 63
- Color
- studio white
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 53 mm
- Built-In Depth ( t 2 )
- 32 mm
- Dimension Diagram
- 2CKA000097E0671
- Declaration of Conformity - CE
- 2CKA100000E2632
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000025 - Dimmer
- eClass
- V11.0 : 27144014
- Mounting method
- Flush-mounted
- Method of operation
- Turn button
- Colour
- White
- Halogen free
- No
- Frequency
- 50–60 Hz
- Type of load
- Universal
- Light value memory
- Yes
- Nominal voltage
- 230 V
- Device width
- 71 mm
- Device height
- 71 mm
- Device depth
- 53 mm
- IFTTT support available
- No
- Min. depth of built-in installation box
- 32 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4011395265697
- SAP 1200639418
- Code 83054646
Product Documentation
