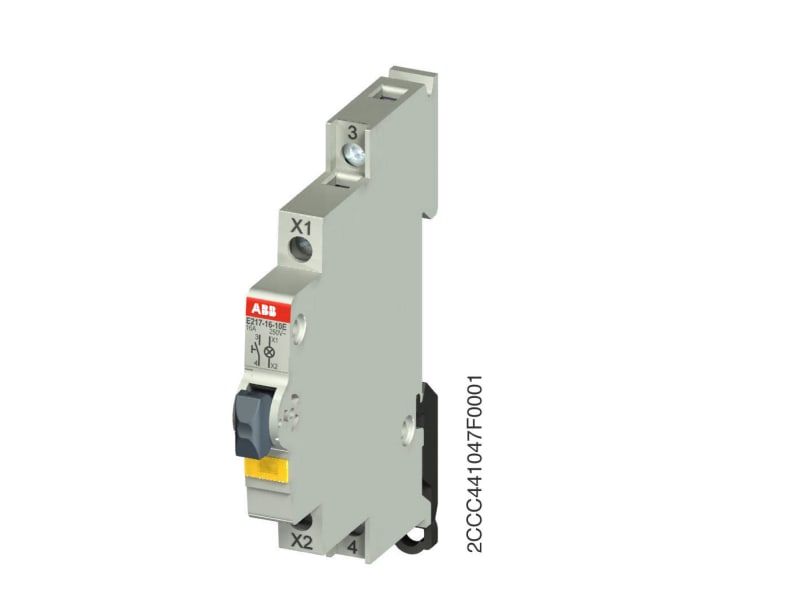

Illuminated Push Button E217-16-10E
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCA703163R0001 — Pushbutton 1 NO / 1 NC with maintenance-free LED, Rated current: 16A/250 VACPDC, LED colour: yellow, 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC, Module width 0,5.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCA703163R0001
- EAN / GTIN
- 7612270939015
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Maximum Switching Voltage
- 250 V
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 1
- Number of Poles
- 1P
- Number of LEDs
- 1
- Tightening Torque
- 1.2-1.5 N·m
- Switch Type
- Double Interrupting Contacts
- Material of Conductor
- Copper
- Remarks
- Sealable in the On and Off positions
- Lamp Color
- Yellow
- Connecting Capacity
- Solid 1x1…6 mm²; Solid 2x2.5 mm²; Flexible 1x0.75…2x2.5 mm²
- Rated Voltage (U r )
- Lamp 230 ... 250 V
- Rated Operational Voltage
- acc. to EN 250 V AC; acc. to UL 508 240 V AC
- Voltage Range
- 115 ... 250 V AC
- Auxiliary Voltage AC/DC
- LED Indicator 115...250 V AC
- Rated Current (I n )
- 16 A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 1.1 W
- Power Watt
- 1.1 W
- Number of Contacts NO
- 1
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Color
- Yellow
- Control Element Color
- Grey
- Ambient Air Temperature
- Operation -25...+55 °C; Storage -40...+70 °C
- Degree of Protection
- IP20
- Environmental Information
- 2CCC441003C0201
- Width in Number of Modular Spacings
- 0.5
- Product Net Width
- 9 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 68 mm
- Built-In Depth ( t 2 )
- 75 mm
- EPLAN Data
- 9AAC407653_EPLAN
- CB Certificate
- 9AKK108466A3845
- CCC Certificate
- 9AKK108466A3829
- Declaration of Conformity - CE
- 2CCC441014D0201
- Declaration of Conformity - UKCA
- 9AKK108467A6137
- VDE Certificate
- 9AKK107991A9822
- ETIM 9
- EC001546 - Push button for distribution board
- UNSPSC
- 39122216
- eClass
- V11.0 : 27142302
- Object Classification Code
- S
- Standards
- EN60068-2-1; EN60068-2-2; EN60068-2-30; DIN EN 60669-1; VDE 0632-1; UL508
- Number of contacts as normally open contact
- 1
- Switching current
- 16 A
- Switching voltage
- 250 V
- Voltage type
- AC
- With signal lamp
- Yes
- Colour calotte
- Yellow
- Lamp type
- LED
- Max. lamp power
- 1.1 W
- Lamp voltage
- 230–250 V
- Colour button
- Yellow
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 7612270939015
- SAP 1000225144
- Code 8961810
Product Documentation
More from ABB
ABB

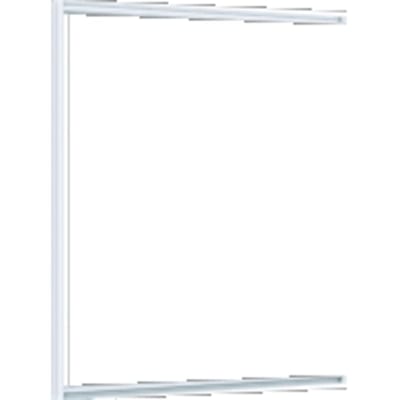

Cover frame TZP306 900X750X30MM
2CPX010641R9999
ABB
Cable Trunking set 40X60MM (1SL0363A00)
ABB

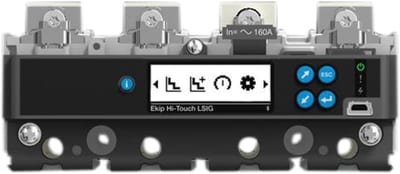

ABB Loose protection XT2, In=63A, 3 pole, EL, Ekip Touch Measuring LSI, Un=690V AC Ekip Touch Measuring LSI In=63A XT2 4P
Ekip Touch Measuring LSI In=63A XT2 4p
ABB
ABB SACE Tmax XT4S 160 Moulded-Case Circuit Breaker — MA 32 Im=160, In=32 A, 3-Pole
1SDA068434R1
ABB
FLEX Insert Relay 1K
64811 U-500
ABB

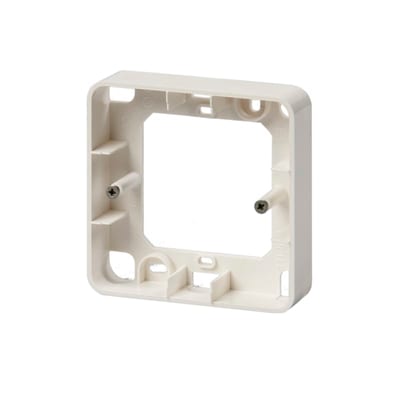

ROT Frame 1 HOLE 2511 R-212
2511R-212
ABB

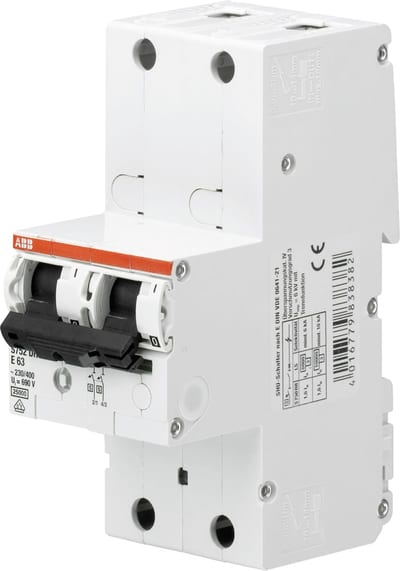

Main Circuit BREAKER S752DR-E16 SEL
